HCI Preferred Supplier 821000 Tube Bulkhead Union, 5/8 in, Push-In, Brass
HCI Preferred Supplier 821000 Tube Bulkhead Union, 5/8 in, Push-In, Brass
-
BrandGeneric
-
Manufacturer Part Number821000
-
CountryUSA
-
Temperature Rating-40 to 200 deg F
-
MaterialBrass
-
Fitting/Connector TypeUnion
-
Pressure Rating150 psi
-
Nominal Size5/8 in
-
Length2.42 in
-
End StylePush-In
- Fast assembly - No tools required, simply push tubing in, saves up to 75% of assembly time compared to standard air compression fittings, no loose parts to handle
- Fast disconnect - Hold the collet collar with two fingers and pull out tube
- Reusable - Can be connected and disconnected several times
- Reliable sealing - using recommended tubing, full sealing is guaranteed
- Versatility - Buna-N O'ring standard, viton and others avail, secure tube retention, pulling on tubing only serves to tighten the connection
- Pre-Applied Teflon® based pipe sealant on all male pipe threads, saving customer additional labor
- Full flow design, provides more flow area than conventional fittings with internal tube supports even in the swivels
- DOT fittings are constructed with an all brass captive eyelet which allows for maximum flow
- The brass captive eyelet with extended length is floating and has a machined top end radius for easy installation of tubing
- Hex Size: 1-1/4 in
-
UNSPSC40183103
-
Package Description1/PK
-
Catalog
-
Full Engineering Drawing
Recently Viewed
HCI Preferred Supplier 821000 Tube Bulkhead Union, 5/8 in, Push-In, Brass
DIXON 300-FAL Cam and Groove Fitting, 3 in Nominal, Male Adapter x MNPT End Style, Aluminum
Dixon® 300-F-AL Boss-Lock™ Type F Cam and Groove Adapter, 3 in, Male Adapter x MNPT, Aluminum
HCI Preferred Supplier 690806S 90 deg 90 deg Tube To Pipe Swivel Elbow, 1/2 in Nominal, Push-In x MNPTF End Style, CA377 Brass
HCI Preferred Supplier 690806S 90 deg 90 deg Tube To Pipe Swivel Elbow, 1/2 in Nominal, Push-In x MNPTF End Style, CA377 Brass
John Guest® PI0412S Straight Equal Union Connector, 3/8 in Nominal, Tube OD End Style, Acetal Copolymer
The PI Range of inch-size push-in fittings is offered for tube sizes 5/32 to 5/8 in OD. The fittings are manufactured in gray acetal copolymer with food grade nitrile O-Ring, making them especially suitable for applications involving foodstuff and potable liquids. They are also suitable for air and inert gases and can therefore be used on CO2 lines, pneumatic applications and vacuum.
HCI Preferred Supplier 20084 90 deg Swivel Elbow, 3/8 in Nominal, Push-In x MNPTF End Style, Forged Brass
HCI Preferred Supplier 20084 90 deg Swivel Elbow, 3/8 in Nominal, Push-In x MNPTF End Style, Forged Brass

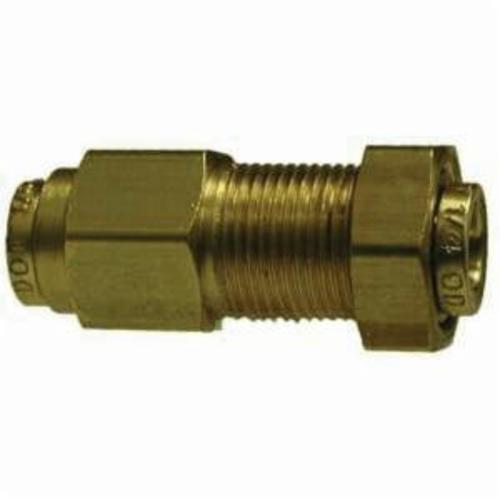

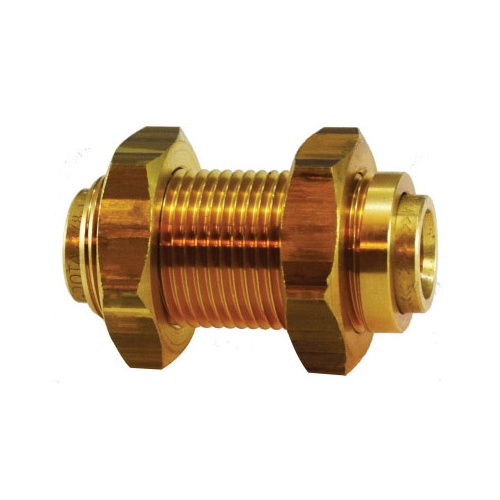

HCI Preferred Supplier 820400 Tube Bulkhead Union, 1/4 in, Push-In, Brass
