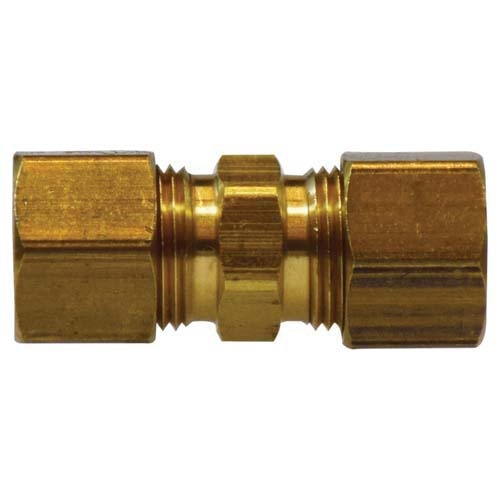

HCI Preferred Supplier 18065 Tube Union, 5/16 in Nominal, Compression End Style, Brass
HCI Preferred Supplier 18065 Tube Union, 5/16 in Nominal, Compression End Style, Brass
-
BrandGeneric
-
Manufacturer Part Number18065
-
CountryUSA
-
Temperature Rating-65 to 250 deg F
-
MaterialBrass
-
Fitting/Connector TypeCoupling
-
Pressure Rating300 psi
-
Nominal Size5/16 in
-
Hex Size1/2 in
-
End StyleCompression
- Manufactured for low and medium pressure tubing connection work where excessive vibration or tube movement is not involved
- Fair resistance use long nut when greater vibration resistance is needed
- /-0.02 tolerance on all dimensions
- Not recommended for steel tubing
-
UNSPSC40183103
-
Package Description1/PK
-
Standards/ApprovalsASA|ASME and SAE 060101BA
-
