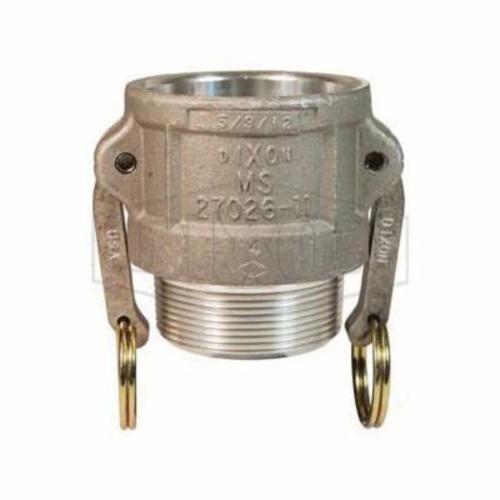

Dixon 2"-MPT ALUM CAM AND GROOVE COUPLER DXN 200-B-AL

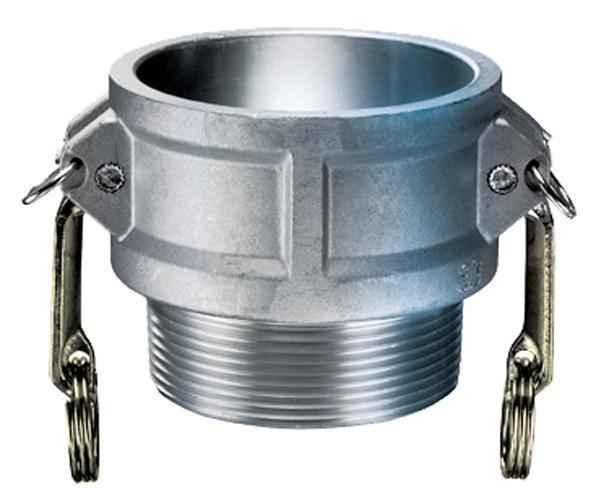

Kuri Tec® AL-B200 AL-B Part B Coupling, 2 in Nominal, Female Coupler x MNPT End Style, Aluminum, Import
-
BrandKuri Tec®
-
Manufacturer Part NumberAL-B200
-
CountryUSA
-
UPC822353032824
-
MaterialAluminum
-
Fitting/Connector TypeAdapter
-
Pressure Rating250 psi
-
TypePart B
-
Nominal Size2 in
-
Domestic/ImportImport
-
Length3-1/4 in
-
End StyleFemale Coupler x MNPT
-
Temperature Rating70 deg F
-
SeriesAL-B
- 1/2 in x 1/2 in are not specified under Mil Specs
- All 8 in and 10 in female couplers supplied with 4 locking handles, safety clips, pull rings and chains
- All sizes except 1/2 in, 5 in and 8 in comply with Mil-Spec A-A-59326 for interchangeability
- Aluminum alloy is specially designed for high tensile strength, lightness and rigidity
- Aluminum couplings supplied with brass handles which results in less wear on connecting parts
- Hose shanks specially designed for easy assembly with Tigerflex type hoses
- Locking feature using safety clips to prevent disconnection during use on all sizes except 1/2 in
- Do not use in connection with drinking water
- Wash hands after handling
-
UNSPSC40141734
-
Package DescriptionEACH
-
WarrantyLimited
-
Standards/ApprovalsMil-Spec A-A-59326|ASTM spec|PROP65:This product can expose you to chemicals, including lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm
-
Catalog
-
Specification Sheet
-
Technical Bulletin
