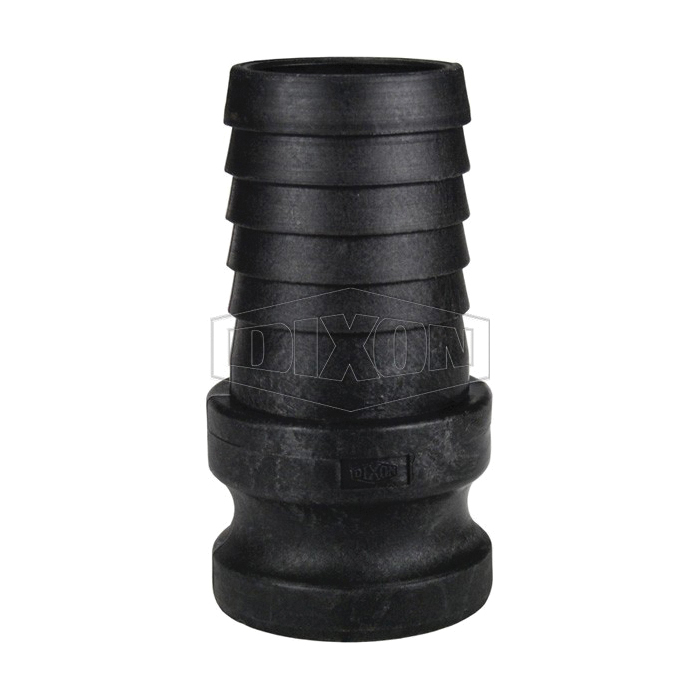

Dixon® PPE150 Type E Cam and Groove Adapter, 1-1/2 in, Male Adapter x Hose Shank, Polypropylene
Dixon® PPE150 Type E Cam and Groove Adapter, 1-1/2 in, Male Adapter x Hose Shank, Polypropylene
-
BrandDixon®
-
UPC089109612352
-
Manufacturer Part NumberPPE150
-
CountryUSA
-
MaterialPolypropylene
-
Fitting/Connector TypeAdapter
-
Pressure Rating100 psi
-
TypeType E
-
Nominal Size1-1/2 in
-
Dimensions1-1/2 in Dia
-
Length4-3/8 in
-
End StyleMale Adapter x Hose Shank
- Manufactured from a glass-filled polypropylene
- 1/2 in couplers and adapters will interchange with 3/4 in couplers and adapters, only the threads and barbs are 1/2 in
- 1-1/4 in couplers and adapters will interchange with 1-1/2 in couplers and adapters, only the threads and barbs are 1-1/4 in
- Polypropylene cam and groove should not be mixed with metal fittings
- Under no circumstances should cam and groove couplings be used for compressed air or steam service!
- Pressure rating is based on the seal of the mating part
- Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70 deg F with a standard seal installed
- Not recommended for use with PTFE gaskets
- 100 psi at ambient temperature 70 deg F pressure
- Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
- Do not use in connection with drinking water
- Wash hands after handling
| Competitor Name | Competitor Part Number |
|---|---|
| Ferguson | DPPE150 |
-
UNSPSC40141734
-
Package Description10/BX
-
WarrantyLimited
-
