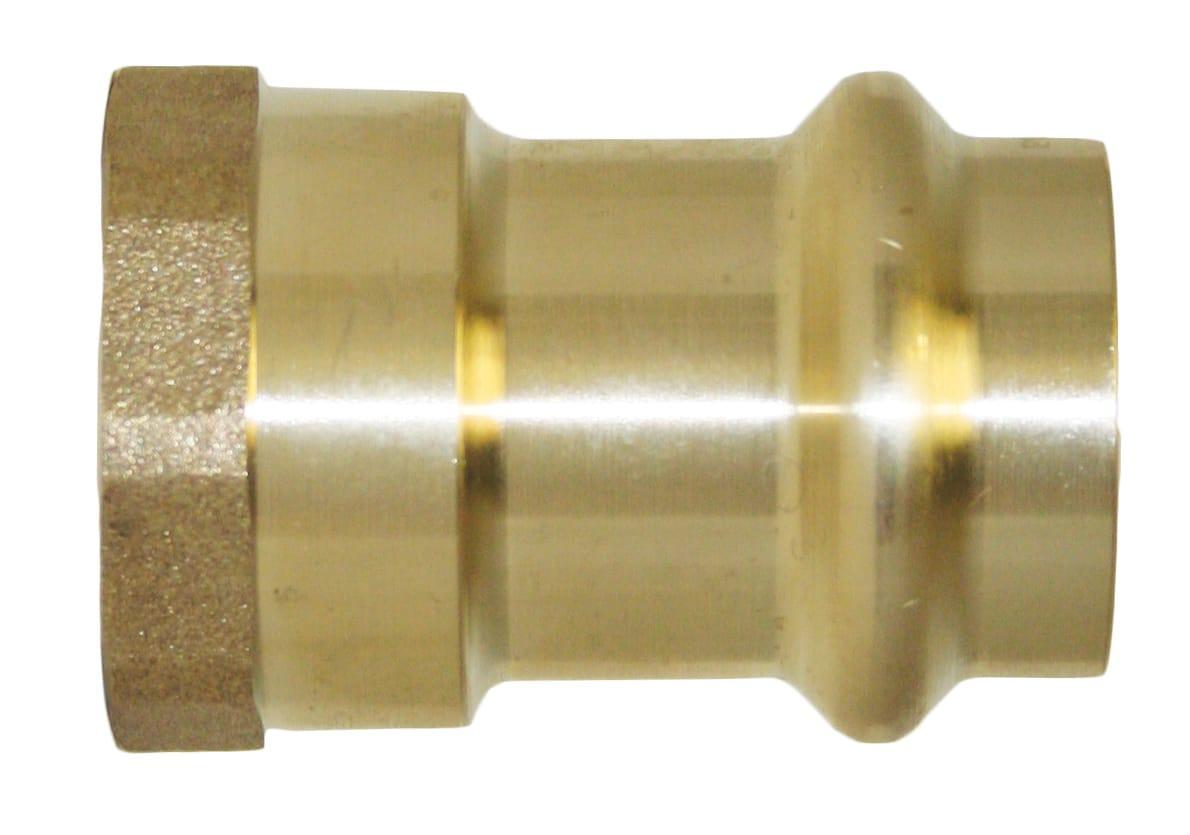

NIBCO 803-1/2 Apollo Press Small Diameter Lead Free Female Press Adapter, 1/2 in Nominal, C x FNPT End Style, Brass, Domestic
The APOLLOXPRESS® 803 Small Diameter Press Female Adapter features a Lead-Free dezincification resistant brass body and an EPDM O-Ring. Our Small Diameter APOLLOXPRESS® products are manufactured utilizing proven ASTM materials and standards. Proudly Made In The USA.
-
BrandApollo™
-
UPC683264757509
-
Manufacturer Part Number10075750
-
CountryUSA
-
Temperature Rating0 to 250 deg F
-
MaterialBrass
-
Fitting/Connector TypeAdapter
-
Pressure Rating200 psi
-
TypeSmall Diameter
-
Nominal Size1/2 in
-
SeriesApolloPress
-
Domestic/ImportDomestic
-
End StyleC x FNPT
- Leak before Press® technology
- Compatible with Pro-Press™ pressing tools
- EPDM O-ring
- Silicone lubrication
- Hot water up to 250 deg F, chilled water down to 33 deg F
- Approved for underground installation (per local installation code)
- UNS C27451 brass
- Use with hard/soft ASTM B88 K, L and M copper tube
-
Alternative Part Number10075200
-
UNSPSC40183109
-
Package Description10/PK
-
Standards/ApprovalsARRA Compliant|cUPC Listed|IAPMO 4861/6174/N-4951|NSF/ANSI NSF-372
-
Specification Sheet
-
Catalog
-
Instruction/Installation Manual
-
Warranty Information
