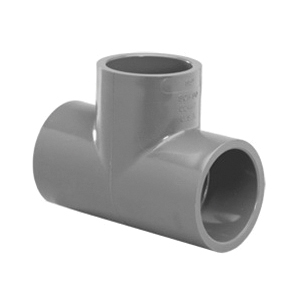

NIBCO 3/8" SCH-80 PVC SXSXS SOCKET TEES NIB 801-003
Lasco® Fittings, Inc's comprehensive line of PVC injection molded fittings offers a variety of configurations in sizes 3/8 in through 12 in. SCH 80/XH fittings are manufactured to ASTM D 2467.
-
BrandLasco®
-
UPC025528719272
-
Manufacturer Part Number801-003
-
CountryUSA
-
MaterialPVC
-
Fitting/Connector TypeTee
-
Method of ManufactureInjection-Molded
-
ColorGray
-
Schedule RatingSCH 80/XH
-
Nominal Size3/8 in
-
Domestic/ImportDomestic
-
Length2-5/16 in
-
End StyleSlip
- ASTM D-1784: Rigid poly vinyl chloride (PVC) compounds and chlorinated poly vinyl chloride (CPVC) compounds
- ASTM D-2467: Socket type poly vinyl chloride (PVC) plastic pipe fittings, SCH 80/XH
- NSF/ANSI standard 61, Annex G: Drinking water system components weighted average lead content of less than or equal to 0.25% and is in compliance with California's health and safety code section 116875 (commonly known as AB1953) NSF/ANSI Standard 14: Plastics piping system components and related materials, includes ANSI standard 61, Annex G
- Do not use Lasco® fittings for compressed air or gases
- Do not test PVC piping systems with compressed air or gases
- Do not use fittings with liquids not recommended by Lasco®
- Fitting modification voids the warranty
-
UNSPSC40174608
-
Package Description50/CT
-
Standards/ApprovalsASTM D1784|ASTM D2467|NSF/ANSI 14|NSF/ANSI 61|Annex-G
-
WarrantyLimited
-
Specification Sheet
-
Catalog
