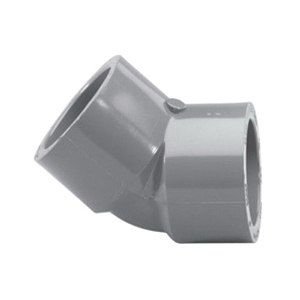

NIBCO 3/8" SCH-80 PVC 45-DEG SXS ELBOWS NIB 817-003
Fitting Type: 45-Degree Elbow (SOC x SOC) Material: Polyvinyl Chloride (PVC)Pipe Schedule: Schedule 80 (thick wall for high-pressure/industrial applications) Size: 3/8-inchConnection Type: Socket x Socket (Slip / Female Socket)
-
BrandLasco®
-
UPC025528720131
-
Manufacturer Part Number817-003
-
CountryUSA
-
MaterialPVC
-
Fitting/Connector Type45 deg Elbow
-
Method of ManufactureInjection-Molded
-
ColorGray
-
Schedule RatingSCH 80/XH
-
Nominal Size3/8 in
-
Domestic/ImportDomestic
-
End StyleSlip
- ASTM D-1784: Rigid poly vinyl chloride (PVC) compounds and chlorinated poly vinyl chloride (CPVC) compounds
- NSF/ANSI standard 61, Annex G: Drinking water system components weighted average lead content of less than or equal to 0.25% and is in compliance with California's health and safety code section 116875 (commonly known as AB1953)
- Do not use Lasco® fittings for compressed air or gases
- Do not test PVC piping systems with compressed air or gases
- Do not use fittings with liquids not recommended by Lasco®
- Fitting modification voids the warranty
-
UNSPSC40172808
-
Package Description50/CTN
-
Standards/ApprovalsASTM D1784|ASTM D2467|NSF/ANSI 14|NSF/ANSI 61|Annex-G
-
WarrantyLimited
-
Specification Sheet
-
Catalog
