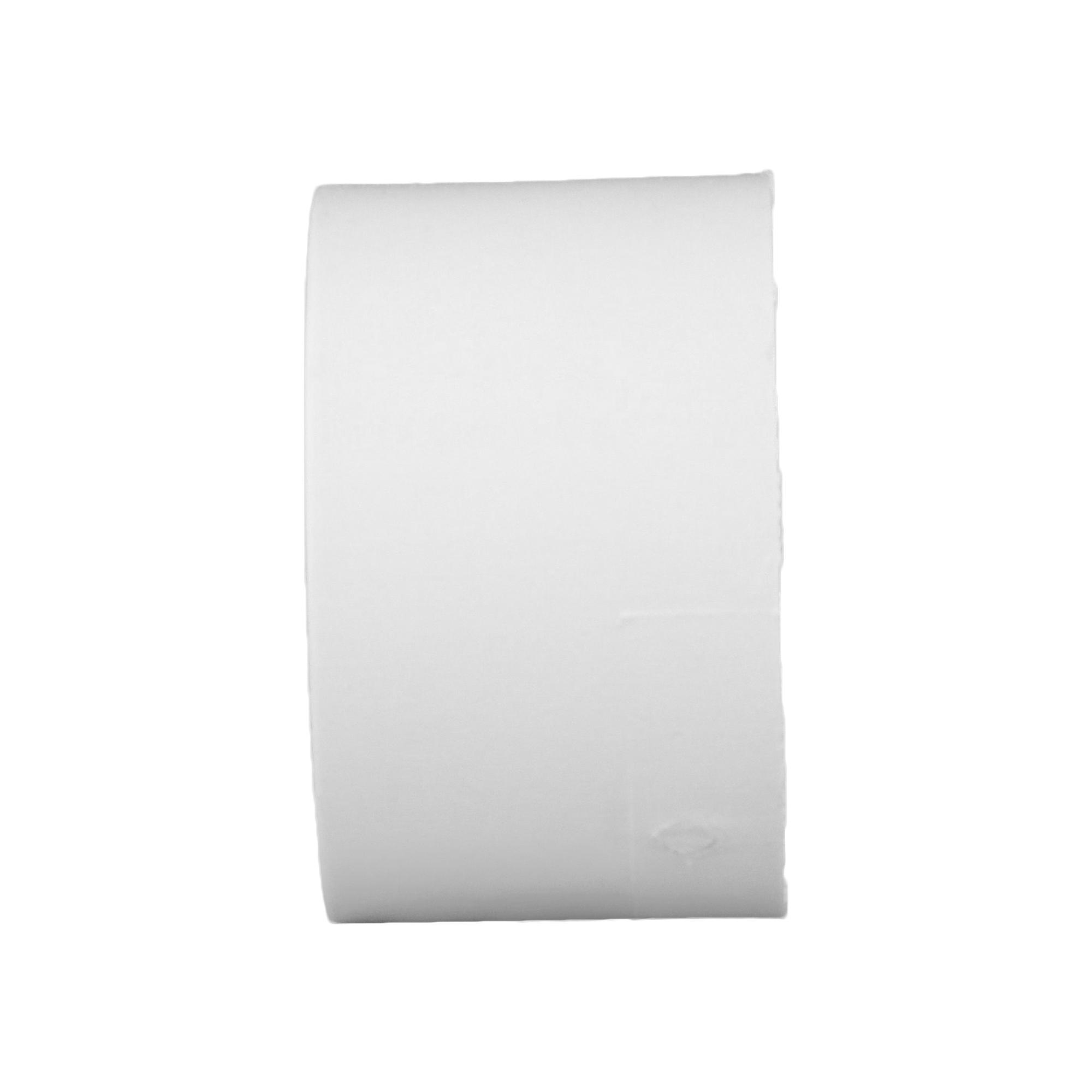

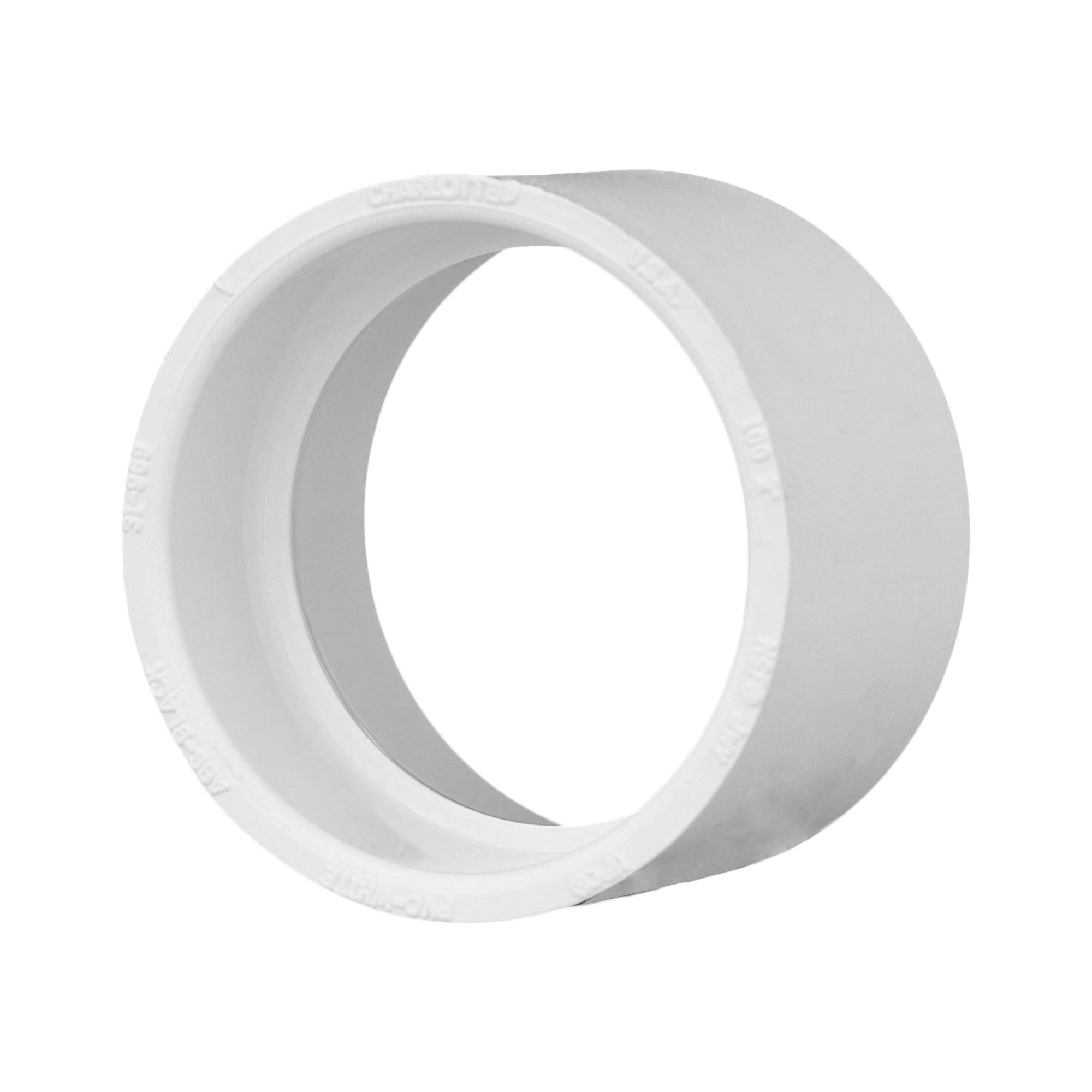

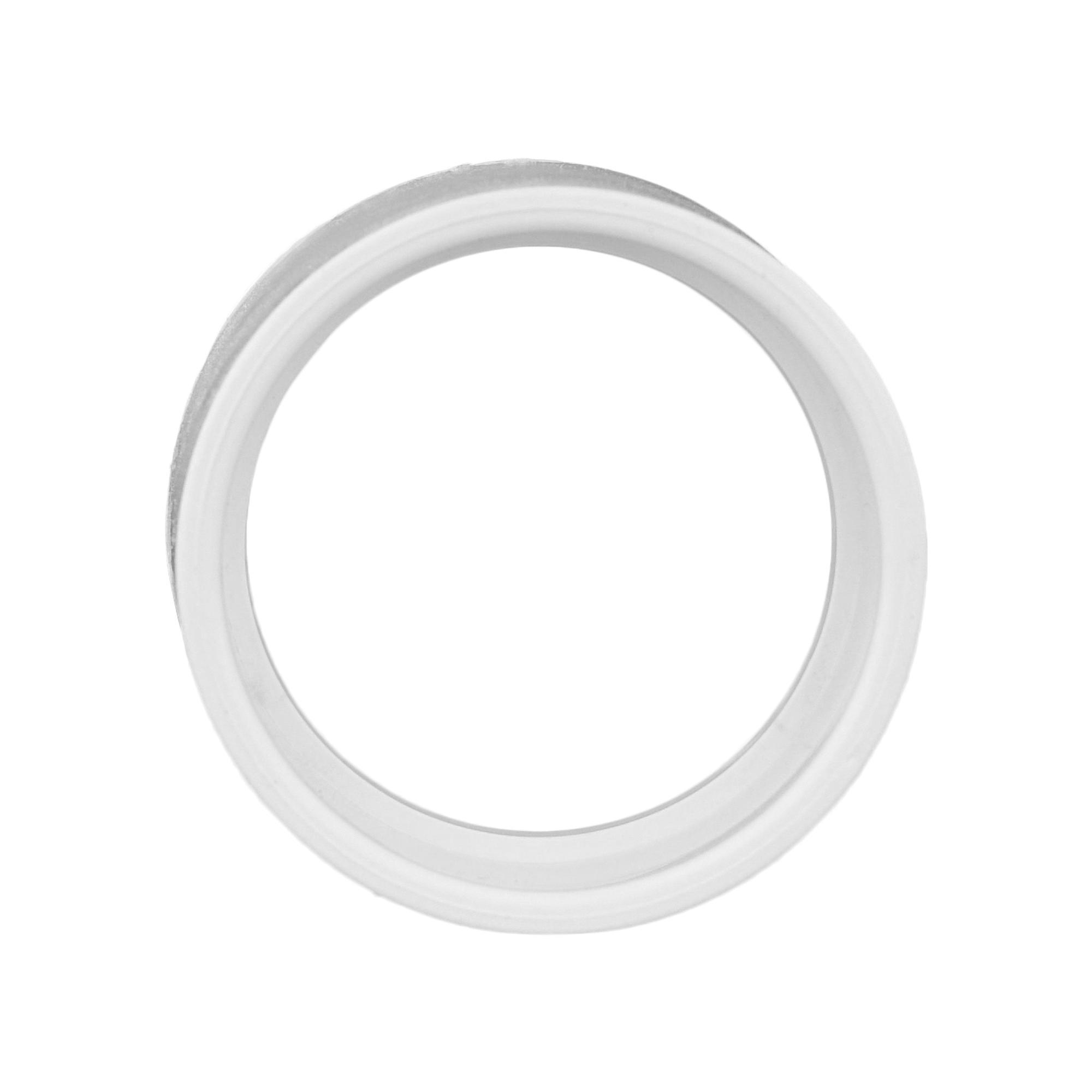

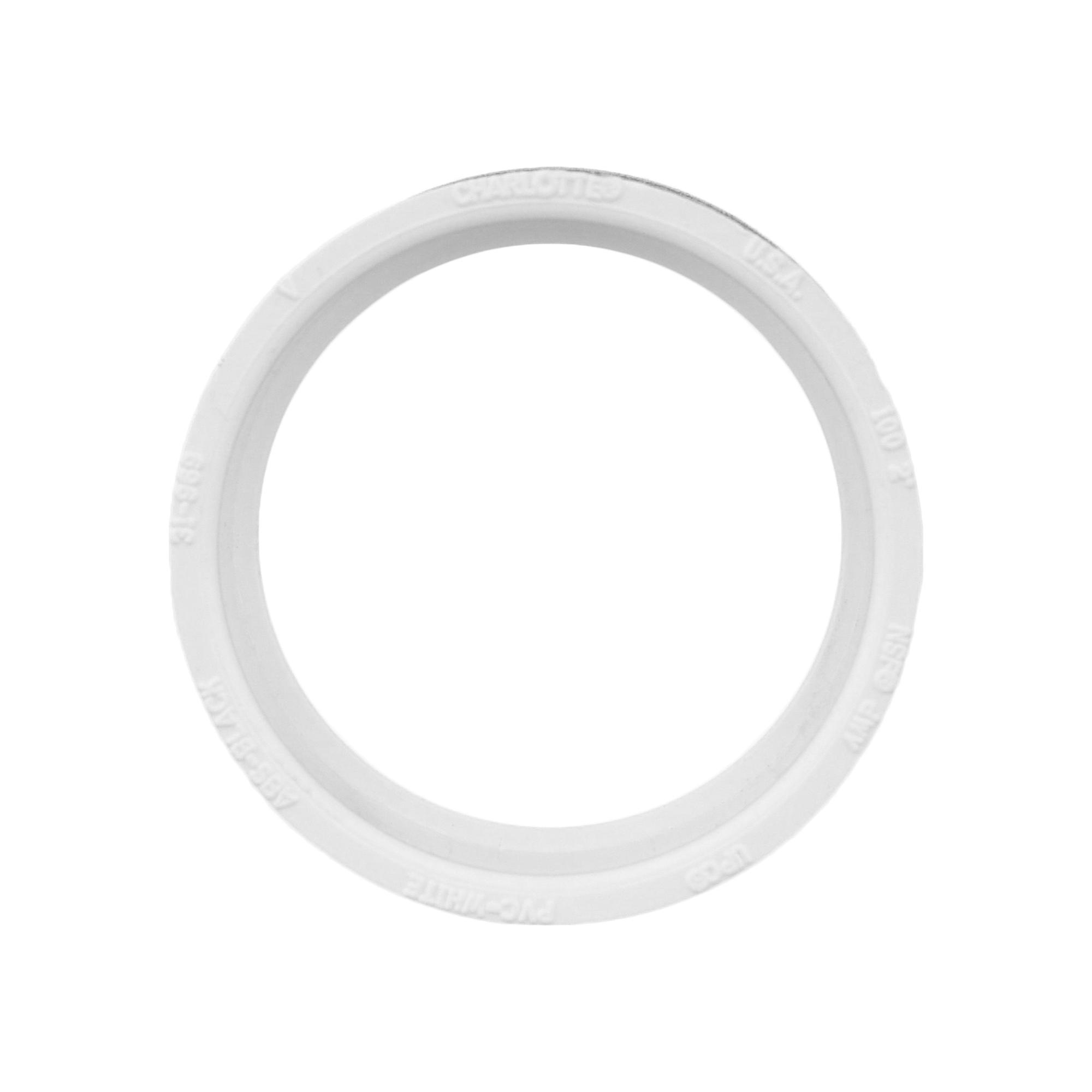

Charlotte PVC 00100 1000, 2 in nominal, Hub end style, SCH 40/STD, PVC, Domestic
PVC fittings are for drain, waste and vent purposes. They are used in gravity-fed waste elimination systems and are for Non-Pressure systems where temperatures will not exceed 140° F. PVC is lightweight and
-
BrandCharlotte
-
UPC611942031900
-
Manufacturer Part NumberPVC 00100 1000
-
CountryUSA
-
MaterialPVC
-
Fitting/Connector TypeCoupling
-
Schedule RatingSCH 40/STD
-
Nominal Size2 in
-
Domestic/ImportDomestic
-
End StyleHub
-
Temperature Rating140 deg F
-
Pressure Rating150 psi
-
ColorWhite
-
Length1-3/4 in
- Easy to install
- PVC is lightweight, requires no special tools for cutting and is installed by solvent cementing
- Uniform interior and exterior
- Style number: P100
| Competitor Name | Cross-Reference Number |
|---|---|
| Ferguson | PDWVCK |
-
UNSPSC40172608
-
Package DescriptionEACH
-
Standards/ApprovalsASTM D1784|ASTM D2665|ASTM D3311|ASTM F1866|NSF 14
-
Warranty5 Years Limited
-
SDS
-
Warranty Information
-
Catalog
-
Specification Sheet
-
Instruction/Installation Manual
