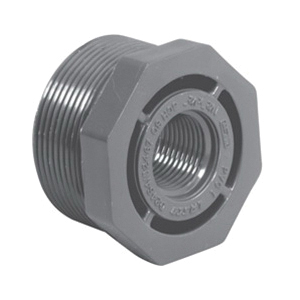

NIBCO® 839-212 Flush, 1-1/2 x 1-1/4 in nominal, MNPT x FNPT end style, SCH 80/XH, PVC, Domestic
Polyvinyl Chloride (PVC)Material Class Schedule 80 (heavy wall, high pressure) Connection Type MPT x FPT (Male Pipe Thread x Female Pipe Thread) Size1-1/2" Outer Connection x 1-1/4" Inner Connection Color Dark Gray
-
BrandLasco®
-
UPC025528721527
-
Manufacturer Part Number839-212
-
CountryUSA
-
MaterialPVC
-
Fitting/Connector TypeBushing
-
Method of ManufactureInjection-Molded
-
ColorGray
-
TypeFlush
-
Schedule RatingSCH 80/XH
-
Nominal Size1-1/2 x 1-1/4 in
-
Domestic/ImportDomestic
-
End StyleMNPT x FNPT
- ASTM D-1784: Rigid poly vinyl chloride (PVC) compounds and chlorinated poly vinyl chloride (CPVC) compounds
- ASTM D-2464: Threaded poly vinyl chloride (PVC) plastic pipe fittings SCH 80/XH
- NSF/ANSI standard 61, Annex G: Drinking water system components weighted average lead content of less than or equal to 0.25% and is in compliance with California's health and safety code section 116875 (commonly known as AB1953) NSF/ANSI Standard 14: Plastics piping system components and related materials, includes ANSI standard 61, Annex G
- Do not use Lasco® fittings for compressed air or gases
- Do not test PVC piping systems with compressed air or gases
- Do not use fittings with liquids not recommended by Lasco®
- Fitting modification voids the warranty
-
UNSPSC40172308
-
Package Description10/CT
-
Standards/ApprovalsASTM D1784|ASTM D2464|NSF/ANSI 14|NSF/ANSI 61|Annex-G
-
Catalog
-
Specification Sheet
