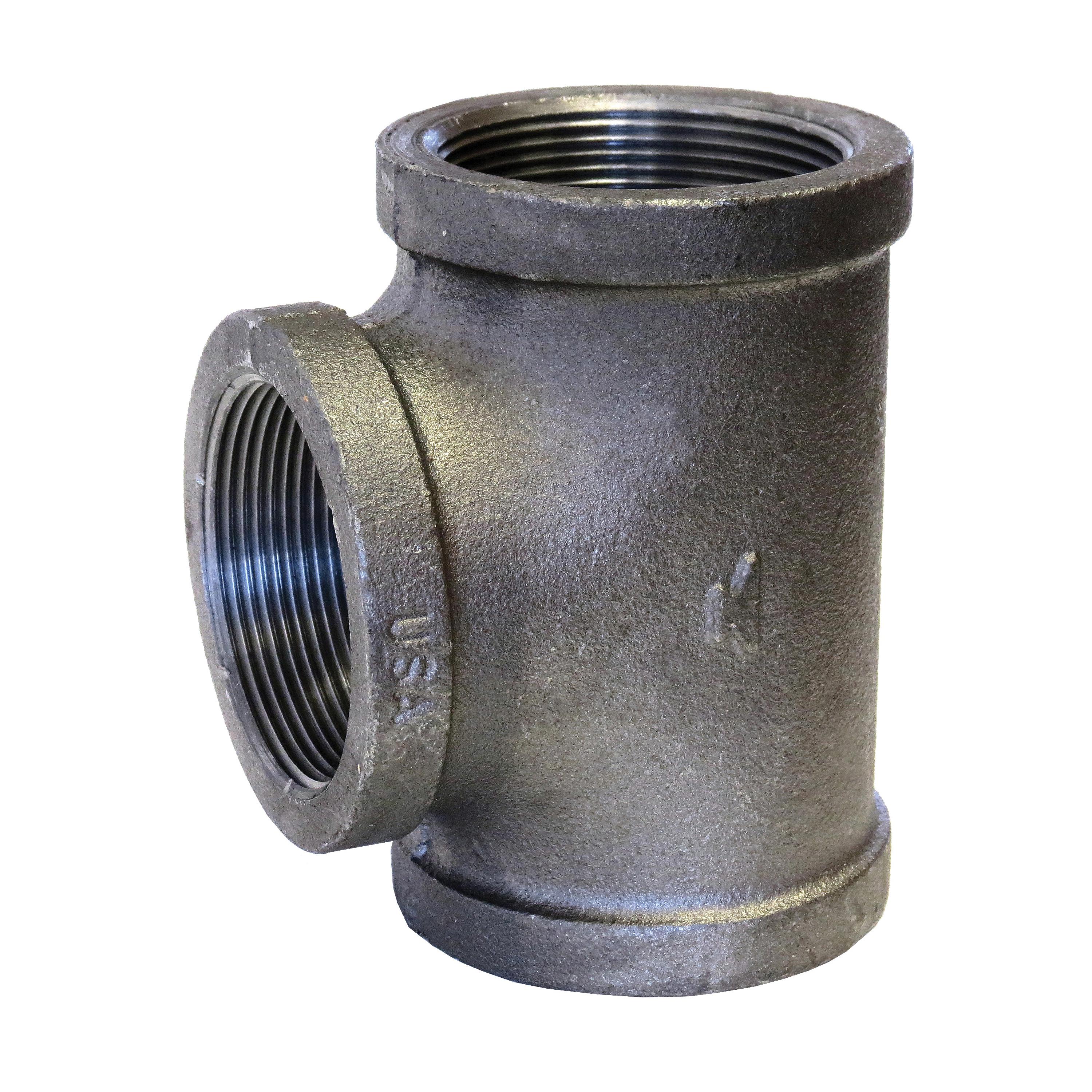

Anvil® 0310029400 FIG 1105 Straight Pipe Tee, 1/4 in Nominal, FNPT End Style, 150 lb, Malleable Iron, Black Oxide, Domestic
Anvil International offers the broadest line of malleable iron fitting sizes in both black and galvanized finishes. Every fitting is manufactured and tested to meet Anvil's strict quality standards. All Anvil Class 150 Malleable Iron Fittings conform to ASME B16.3 and unions conform to ASME B16.39. All elbows and tees 3/8 in (10 DN) and larger are 100% gas tested at a minimum of 100 PSI (6.9 bar).
-
BrandAnvil®
-
UPC690291345647
-
Manufacturer Part Number0310029400
-
CountryUSA
-
Temperature Rating-20 to 150 deg F
-
FinishBlack Oxide
-
MaterialMalleable Iron
-
Fitting/Connector TypeTee
-
Pressure Class150 lb
-
Pressure Rating300 psi
-
Schedule RatingSCH 40/STD
-
Nominal Size1/4 in
-
SeriesFIG 1105
-
Domestic/ImportDomestic
-
End StyleFNPT
- Malleable iron pipe fittings hold two different pipe parts together and direct gas and liquid movement.
- Wide range of products for sprinkler systems, drainage systems other installations, including fittings connectors, unions, plugs & bushings, clamps and more
- Accurate form, length and straightness on threads for easy engagement
- Chamfered openings for fast, easy engagement and assembly
- Precision machining
- Rust-Resistant coating
- 0.81 in center to end
- 0.32 in thread length
- 0.4 in take out
| Competitor Name | Cross-Reference Number |
|---|---|
| Fastenal | 66311 |
-
UNSPSC40174606
-
Package Description20/PK
-
Standards/ApprovalsASME B16.3|cULus Listed|FM Approved|NSF/ANSI 61|ASME B16.14/B16.4/B1.20.1|ASTM A153/A197|WW P521
-

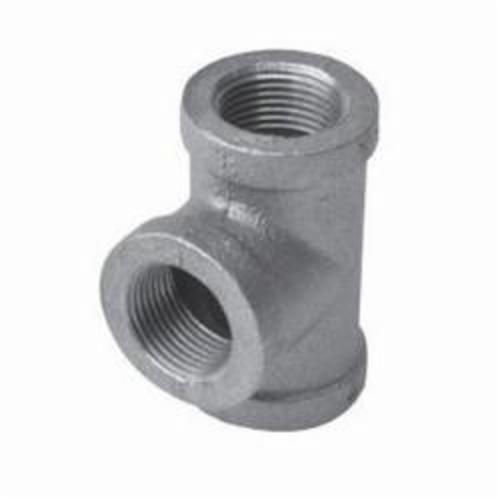

Alternative Part NumberB.BMT
-
Specification Sheet
