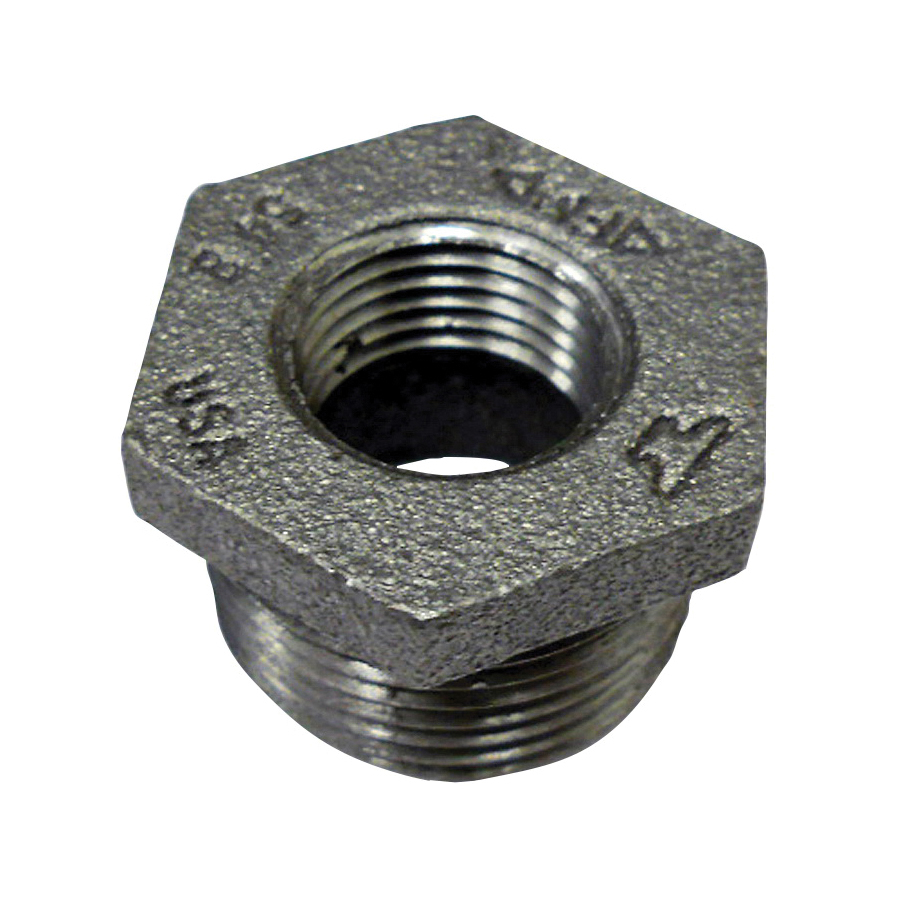

AnvilĀ® 0318905528 FIG 383 Hex Head Pipe Bushing, 1/2 x 1/4 in Nominal, MNPT x FNPT End Style, 300 lb, Cast Iron, Black Oxide, Domestic
Anvil International offers the broadest line of malleable iron fitting sizes in both black and galvanized finishes. Every fitting is manufactured and tested to meet Anvil's strict quality standards. All Anvil Class 150/300 Malleable Iron Fittings conform to ASME B16.3 and unions conform to ASME B16.39. All elbows and tees 3/8 in (10 DN) and larger are 100% gas tested at a minimum of 100 PSI (6.9 bar).
-
BrandAnvilĀ®
-
UPC690291347375
-
Manufacturer Part Number0318905528
-
CountryUSA
-
FinishBlack Oxide
-
MaterialCast Iron
-
Fitting/Connector TypeBushing
-
Pressure Class300 lb
-
TypeHex Head
-
Nominal Size1/2 x 1/4 in
-
SeriesFIG 383
-
Domestic/ImportDomestic
-
End StyleMNPT x FNPT
-
Temperature Rating-20 to 150 deg F
-
Thickness0.19 in
-
Pressure Rating300 psi
-
Hex Size0.87 in
- Small Steel Fittings to ASME C1215
- Wide range of products for sprinkler systems, drainage systems other installations, including fittings, connectors, unions, plugs and bushings, clamps and more
- Accurate form, length and straightness on threads for easy engagement
- Chamfered openings for fast, easy engagement and assembly
- Precision machining
- Rust-Resistant coating
- 0.19 in H of head
- 0.32 in internal x 0.56 in L external thread
- 0.87 in W of head
| Competitor Name | Competitor Part Number |
|---|---|
| Fastenal | 66288 |
-
UNSPSC40172303
-
Standards/ApprovalsASME B16.3|cULus Listed|FM Approved|NSF/ANSI 61|ANSI B16.14/B1.20.1|ASME B16.3/B1.20.1/B16.14|ASTM A153/A197|FM Approved|NSF 61-G|UL/ULC Listed|WW P471
-
Alternative Part NumberDXB.BSB
-
Package Description25/BX
-
