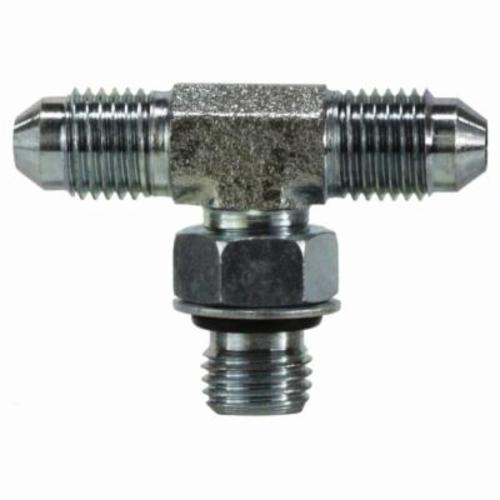

HCI Preferred Supplier 6803NWO16 Branch Tee, 1-5/16-12 Nominal, Male JIC Flare x Male JIC Flare x Male ORB, Steel
HCI Preferred Supplier 6803NWO16 Branch Tee, 1-5/16-12 Nominal, Male JIC Flare x Male JIC Flare x Male ORB, Steel
-
BrandGeneric
-
Manufacturer Part Number6803NWO16
-
CountryUSA
-
MaterialSteel
-
Pressure Rating2300 psi
-
Nominal Size1-5/16-12
-
End StyleMale JIC Flare x Male JIC Flare x Male ORB
- O-ring boss ports (ORB) provide a seal by trapping the fitting's O-ring inside a port cavity
- When a fitting is installed into the port, the o-ring is trapped between the fitting body hex or washer and port cavity
- Straight fittings include a hex, and sometimes an additional cylindrical shoulder below the hex and above the threads, to trap the o-ring in the port cavity
- Elbow and tee fittings require a backup washer and a locknut above the O-ring on the threaded stud to permit a 360 deg orientation of the fitting around the port
-
UNSPSC27121700
-
Package Description1/PK
-
Standards/ApprovalsSAE 070429|MS 51529
-
