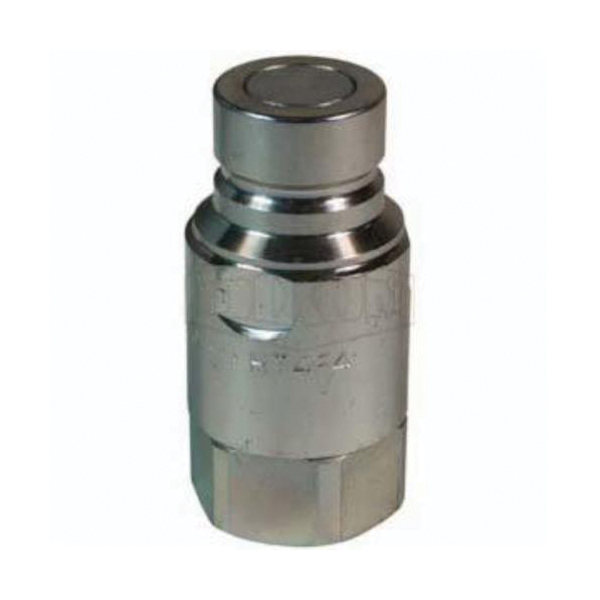

Dixon® HT8F8 HT Series Flush Face Female Plug, 1-11-1/2 Nominal, FNPT, Steel, Domestic
$149.94
In Stock
SKU: DXNHT8F8
Dixon® HT8F8 HT Series Flush Face Female Plug, 1-11-1/2 Nominal, FNPT, Steel, Domestic
In Stock
HCI of Jackson: 2
HCI of Dyersburg: 0
HCI of Humboldt: 0
HCI of Union City: 0
HCI of Gallatin: 0
Back to: Hydraulic Quick Connect Fittings
Main specs
-
BrandDixon®
-
Manufacturer Part NumberHT8F8
-
CountryUSA
Specification
-
MaterialSteel
-
Pressure Rating5000 psi
-
Nominal Size1-11-1/2
-
Hex Size1-3/4 in
-
SeriesHT Series
-
Domestic/ImportDomestic
-
Length3-1/2 in
-
End StyleFNPT
Features
- Machined components are manufactured using solid bar stock
- Easily rebuildable
- High flow performance, compact profile
- High-strength laser-cut valve guide maximizes valve stability while minimizing flow restriction
- Steel nipples are hardened to provide resistance to brinelling during impulse service
- Has molded polyurethane valve seals, with a temperature range of -65 to 212 deg F
- Ancillary nipple seals are Nitrile (Buna-N), with a temperature range of -40 to 250 deg F
- PTFE or TPC-ET anti-extrusion ring protects main coupling valve seal from dynamic impulse pressure damage
- 20000 psi burst pressure
- 5000 psi at 70 deg F pressure
- Interchangeable to ISO16028
- Compatible with Parker FEM-Series, Snap-Tite 74-Series, Hansen FF, Aeroquip/Eaton FD89, Stucchi A/FIRG, faster FFH/2FFN/2FFI and Safeway FF49-Series
- Warning: this product contains a chemical known to the State of California to cause birth defects or other reproductive harm
- Do not use in connection with drinking water
- Wash hands after handling
Additional Information
-
UNSPSC27121701
-
Package Description10/BX
-
WarrantyLimited
