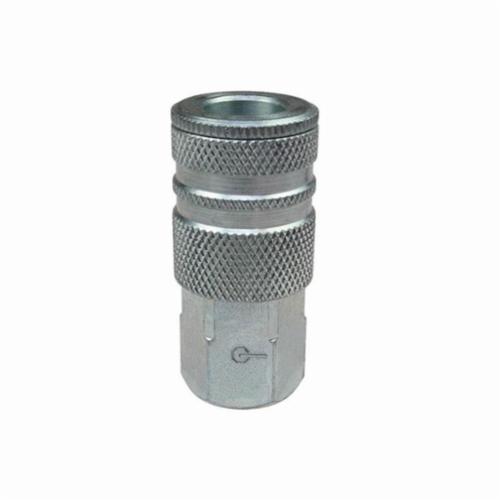

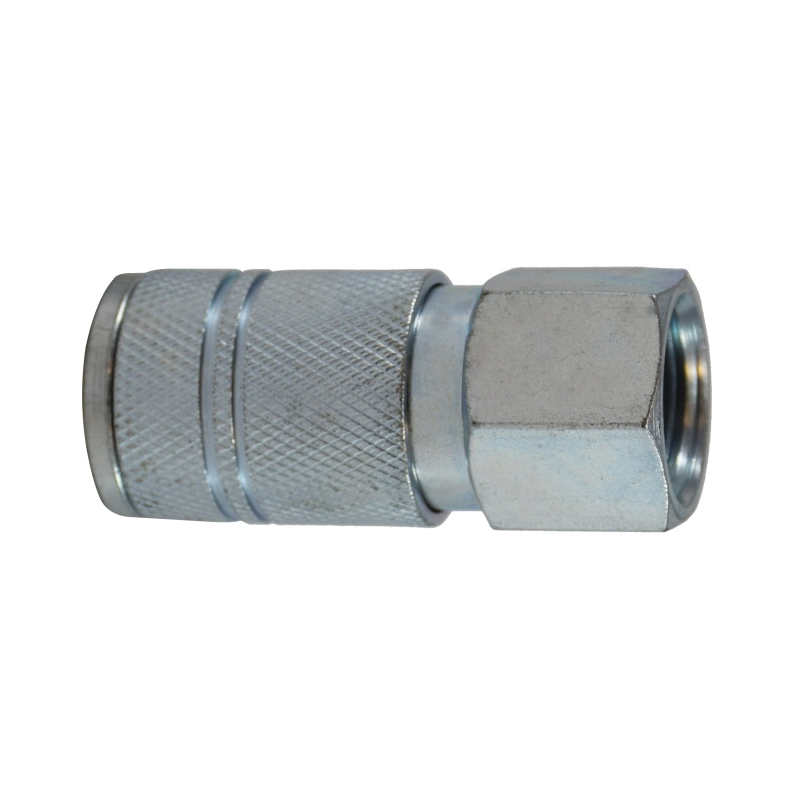

HCI Preferred Supplier 98812 Industrial Interchange Coupler, 1/2 in Nominal, FNPT, Steel
HCI Preferred Supplier 98812 Industrial Interchange Coupler, 1/2 in Nominal, FNPT, Steel
-
BrandGeneric
-
UPC029292122665
-
Manufacturer Part Number98812
-
CountryUSA
-
Temperature Rating-4 to 176 deg F
-
FinishZinc Plated
-
MaterialSteel
-
Pressure Rating250 psi
-
TypeIndustrial Interchange
-
Nominal Size1/2 in
-
SeriesCoilflow Manual Industrial
-
Domestic/ImportDomestic
-
End StyleFNPT
- Couplings are widely used to connect compressed air and low pressure fluid lines
- Compact and economical design uses a ball locking mechanism consisting of captive steel balls that engage the locking groove on the mating nipple
- Sliding spring loaded sleeve on the coupler must be manually retracted in order to connect or disconnect the nipple
- Easy to do, but two hands are normally required
- Steel valve, NBR seat, and stainless steel springs
-
UNSPSC27112800
-
Package Description1/PK
-
