HCI Preferred Supplier 99812 Industrial Interchange Pipe Coupler, 1/2 in Nominal, FNPT, Steel
1/2 in FNPT G-style Couplers are used in applications that require over 60 scfm. There are two MiltonĀ® G-style Couplers, but both will function the same with G-style plugs. MiltonĀ® G-style Couplers are made of steel and are plated to resist rust. With a 1/2 in basic flow size, these plugs offer up to 99 scfm, making them the highest scfm rated Couplers. maximum pressure of 300 psi.
-
BrandGeneric
-
Manufacturer Part Number99812
-
CountryUSA
-
Temperature Rating-4 to 176 deg F
-
FinishPlated
-
MaterialSteel
-
Pressure Rating250 psi
-
TypeIndustrial Interchange
-
Nominal Size1/2 in
-
Series1800
-
Dimensions1.18 in W x 1.18 in H
-
Domestic/ImportDomestic
-
Length2.95 in
-
End StyleFNPT
- Compact and economical design uses a ball locking mechanism consisting of 8 captive steel balls that engage the locking groove on the mating nipple
- Sliding spring loaded sleeve on the coupler must be manually retracted in order to connect or disconnect the nipple
- Easy to do, but two hands are normally required
- Widely used to connect compressed air and low pressure fluid lines
-
UNSPSC40183100
-
Package Description1/PK
-
Standards/ApprovalsPROP65: CANCER AND REPRODUCTIVE HARM www.P65Warnings.ca.gov
-
WarrantyLimited
-
Catalog
Recently Viewed
HCI Preferred Supplier 99812 Industrial Interchange Pipe Coupler, 1/2 in Nominal, FNPT, Steel
1/2 in FNPT G-style Couplers are used in applications that require over 60 scfm. There are two MiltonĀ® G-style Couplers, but both will function the same with G-style plugs. MiltonĀ® G-style Couplers are made of steel and are plated to resist rust. With a 1/2 in basic flow size, these plugs offer up to 99 scfm, making them the highest scfm rated Couplers. maximum pressure of 300 psi.
MiltonĀ® 1808 1800 P-Style Plug, 3/8 in, FNPT, 300 psi, Steel, Domestic
3/8 in FNPT P-style Plugs are made of case hardened steel and plated to resist rust. Bodies have 8 locking balls for better retention of Plug. Has a maximum inlet pressure of 300 psi.
MiltonĀ® 1840BK 1800 H-Style Plug, 1/4 in, FNPT, 300 psi, Steel, Domestic
1/4 in FNPT H-style Plugs are made of case hardened steel and plated to resist rust. H-style Plugs offer a basic flow size of 3/8 in and maximum pressure of 300 psi. Air flow of 67 scfm is perfect for all of your larger tool applications requiring more scfm.

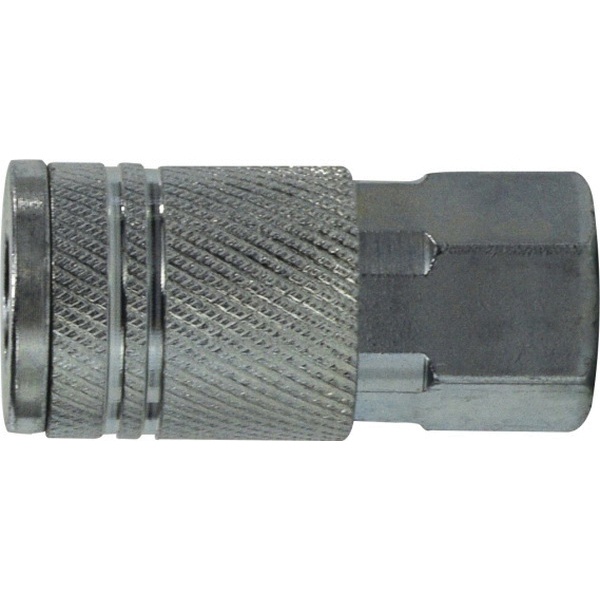

HCI Preferred Supplier 98810 Industrial Interchange Coupler, 1/4 in Nominal, FNPT, Steel
