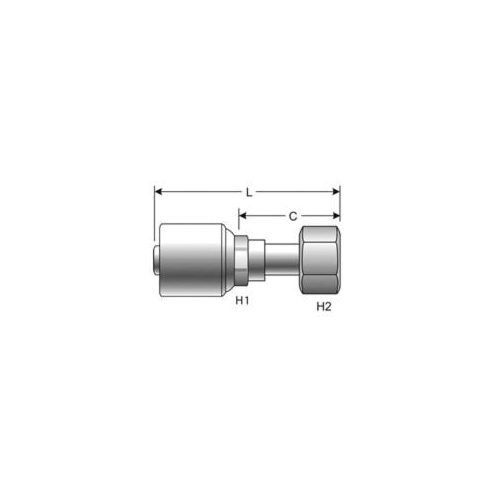

Gates® Power Transmission MegaCrimp™ 6G-6FJX G25 Straight Hydraulic Coupling, 3/8 in x 9/16-18 Nominal, Hose x 37 deg Female JIC Flare Swivel, Carbon Steel, Domestic
Gates® MegaCrimp™ couplings are designed for use with Gates® wire braid hydraulic hoses to create a robust, leak-free assembly. The pre-assembled coupling is designed with a patented "C" insert attached to the ferrule. This design ensures that crimping forces are evenly distributed to form a concentric, leak-free seal. One MegaCrimp™ coupling size can accommodate various one-and two-wire braid hydraulic hoses of different constructions and wall thicknesses, simplifying inventory requirements, helping to reduce costs and simplifying coupling selection.
-
BrandGates® Power Transmission
-
UPC072053323054
-
Manufacturer Part Number6G-6FJX
-
CountryUSA
-
MaterialCarbon Steel
-
TypeStraight
-
Nominal Size3/8 in x 9/16-18
-
Hex Size18 mm Stem, 19 mm Nut
-
SeriesG25
-
Domestic/ImportDomestic
-
Length2.42 in
-
End StyleHose x 37 deg Female JIC Flare Swivel
- Robust "Bite-the-wire" crimp
- Low profile
- Full stem insertion
- Full length crimp
- Tested to industry leading 600000 impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat™ plating for 3X better corrosion resistance than SAE standard
- 1.29 in cut-off length
-
Alternative Part NumberG25170-0606|710308145
-
UNSPSC40172601
-
Package Description5/PK
-
WarrantyLimited
-
Warranty Information
-
