Gates® Power Transmission MegaCrimp™ 16G-16MPX G25 Straight Hydraulic Coupling, 1 in x 1-11-1/2 Nominal, Hose x MNPTF Swivel, Steel, Domestic
Gates® MegaCrimp™ couplings are designed for use with Gates® wire braid hydraulic hoses to create a robust, leak-free assembly. The pre-assembled coupling is designed with a patented "C" insert attached to the ferrule. This design ensures that crimping forces are evenly distributed to form a concentric, leak-free seal. One MegaCrimp™ coupling size can accommodate various one-and two-wire braid hydraulic hoses of different constructions and wall thicknesses, simplifying inventory requirements, helping to reduce costs and simplifying coupling selection.
-
BrandGates® Power Transmission
-
UPC072053322804
-
Manufacturer Part Number16G-16MPX
-
CountryUSA
-
MaterialSteel
-
TypeStraight
-
Nominal Size1 in x 1-11-1/2
-
Hex Size1-3/8 in Stem, 1-5/8 in Nut
-
SeriesG25
-
Domestic/ImportDomestic
-

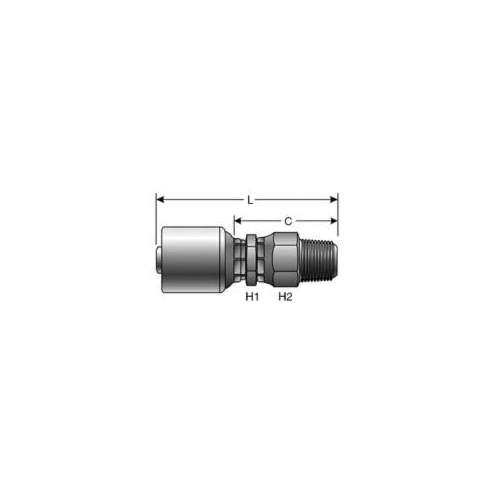

Length4.73 in
-
End StyleHose x MNPTF Swivel
- Robust "Bite-the-wire" crimp
- Low profile
- Full stem insertion
- Full length crimp
- Tested to industry leading 600000 impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat™ plating for 3X better corrosion resistance than SAE standard
- 60 deg thread angle
- 2.49 in cut-off length
-
Alternative Part NumberG25105-1616|710000365
-
UNSPSC40172601
-
Package Description1/PK
-
WarrantyLimited
-
