Gates® Power Transmission MegaCrimp™ 8G-15FDLORX G25 Straight Hydraulic Coupling, 12.7 mm x M22x1.5 Nominal, Hose x DIN 24 deg Female Cone Swivel End Style, Steel, Import
Gates® MegaCrimp™ couplings are designed for use with Gates® wire braid hydraulic hoses to create a robust, leak-free assembly. The pre-assembled coupling is designed with a patented "C" insert attached to the ferrule. This design ensures that crimping forces are evenly distributed to form a concentric, leak-free seal. One MegaCrimp™ coupling size can accommodate various one-and two-wire braid hydraulic hoses of different constructions and wall thicknesses, simplifying inventory requirements, helping to reduce costs and simplifying coupling selection.
-
BrandGates® Power Transmission
-
UPC072053401417
-
Manufacturer Part Number8G-15FDLORX
-
CountryUSA
-
MaterialSteel
-
TypeStraight
-
Nominal Size12.7 mm x M22x1.5
-
Hex Size27 mm Nut
-
SeriesG25
-
Domestic/ImportImport
-

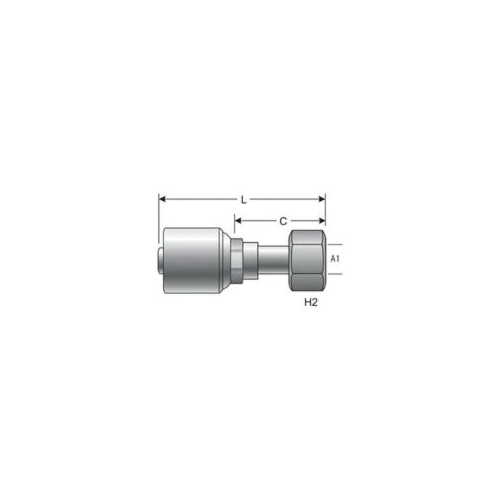

Length67 mm
-
End StyleHose x DIN 24 deg Female Cone Swivel
- Robust "Bite-the-wire" crimp
- Low profile
- Full stem insertion
- Full length crimp
- Tested to industry leading 600000 impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat™ plating for 3X better corrosion resistance than SAE standard
- 15 mm tube outer diameter
- 29.5 mm cut-off length
-
Alternative Part NumberG25645-0815|710025445
-
UNSPSC40172601
-
Package Description1/PK
-
Standards/ApprovalsASTM B-117
-
WarrantyLimited
-
