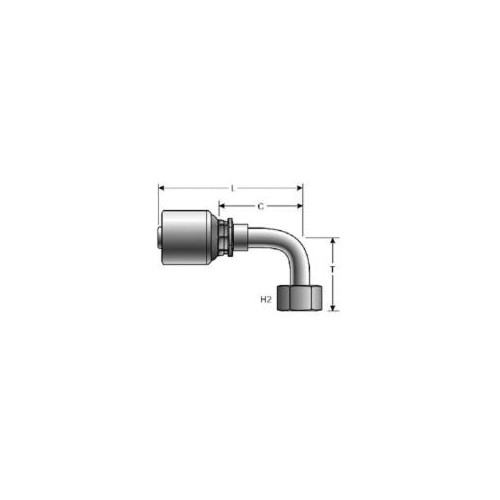

Gates® Power Transmission MegaCrimp™ 4G-6FJX90M G25 Medium Bent Tube Hydraulic Coupling, 1/4 in x 9/16-18 Nominal, Hose x 37 deg Female JIC Flare Swivel, Steel, Import
It’s what’s inside the MegaCrimp coupling that makes it perform so well, the “C” insert. This “C” insert allows usage with different hose constructions and wall thicknesses. In addition, the C-insert ensures an even distribution of crimping forces to form a concentric seal. That simplifies your inventory requirements since one size can accommodate many different hose ODs, on both one- and two-wire braid hoses and select Xpiral hoses. An additional bonus: MegaCrimp couplings are fully qualified for SAE, EN, and ISO performance.
-
BrandGates® Power Transmission
-
UPC72053355727
-
Manufacturer Part Number4G-6FJX90M
-
CountryUSA|Canada
-
MaterialSteel
-
TypeMedium Bent Tube
-
Nominal Size1/4 in x 9/16-18
-
Angle90 deg
-
Hex Size19 mm Nut
-
SeriesG25
-
Domestic/ImportImport
-
Length2.56 in
-
End StyleHose x 37 deg Female JIC Flare Swivel
- Robust "Bite-the-wire" crimp
- Low profile
- Full stem insertion
- Full length crimp
- Tested to industry leading 600000 impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat™ plating for 3X better corrosion resistance than SAE standard
- 1-1/2 in drop length
- 1.53 in cut-off length
-
Alternative Part NumberG25180-0406|710347135
-
UNSPSC40172601
-
Package Description1/PK
-
WarrantyLimited
-
