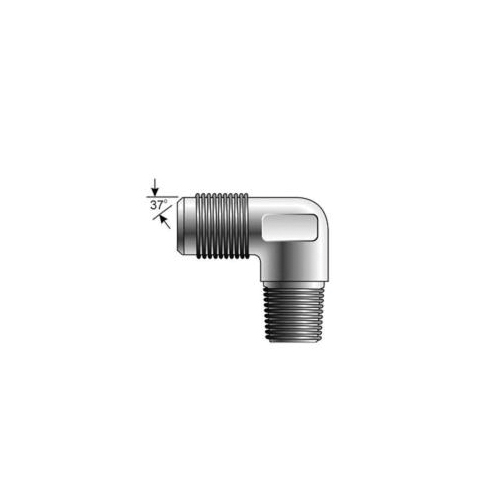

Gates® Power Transmission MegaCrimp™ 12MJ-8MP90 G60 SAE to SAE Hydraulic Elbow Adapter, 1-1/16-12 x 1/2-14 Nominal, 37 deg Male JIC Flare x Male NPTF, Steel, Import
Gates® MegaCrimp™ couplings are designed for use with Gates® wire braid hydraulic hoses to create a robust, leak-free assembly. The pre-assembled coupling is designed with a patented "C" insert attached to the ferrule. This design ensures that crimping forces are evenly distributed to form a concentric, leak-free seal. One MegaCrimp™ coupling size can accommodate various one-and two-wire braid hydraulic hoses of different constructions and wall thicknesses, simplifying inventory requirements, helping to reduce costs and simplifying coupling selection.
-
BrandGates® Power Transmission
-
UPC072053162448
-
Manufacturer Part Number12MJ-8MP90
-
CountryUSA
-
MaterialSteel
-
TypeSAE to SAE
-
Nominal Size1-1/16-12 x 1/2-14
-
Angle90 deg
-
SeriesG60
-
Domestic/ImportImport
-
End Style37 deg Male JIC Flare x Male NPTF
- Robust "Bite-the-wire" crimp
- Low profile
- Full stem insertion
- Full length crimp
- Tested to industry leading 600000 impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat™ plating for 3X better corrosion resistance than SAE standard
- 30 deg NPTF seat
- 60 deg thread angle
- For use up to SAE 100R2 maximum working pressure
-
Alternative Part NumberG60499-1208|725910795
-
UNSPSC40141734
-
Package Description1/PK
-
WarrantyLimited
-
