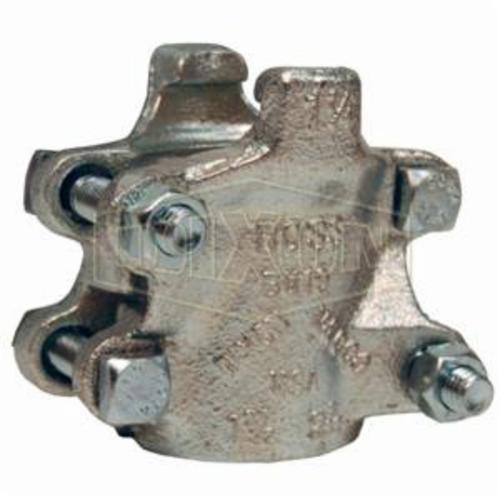

Dixon® B24 Boss™ 4-Bolt Clamp, 2-24/64 to 2-36/64 in Nominal, Iron Band, Domestic
Dixon® B24 Boss™ 4-Bolt Clamp, 2-24/64 to 2-36/64 in Nominal, Iron Band, Domestic
-
BrandDixon®
-
Manufacturer Part NumberB24
-
CountryUSA
-
FinishZinc Plated
-
Torque Rating40 ft-lb
-
Nominal Size2-24/64 to 2-36/64 in Hose
-
Width3-31/32 in
-
SeriesBoss™
-
Band MaterialIron
-
Domestic/ImportDomestic
-
Length4-1/8 in
- 4-bolt type clamp with 2 gripping fingers and 2 clamp sections
- Bolts in Boss™ clamps are designed to bend as they are tightened, this allows the clamp to conform to the hose outside diameter
- Always tighten bolts to their specified torque value
- Periodic re-tightening of bolts is required due to "cold flow" phenomenon present in all rubber hoses
- The bolts used in the boss interlocking clamps are not standard bolts
- They vary from standard bolts in their length, diameter, overall thread length and material hardness
- These bolts can be retorqued, but it is not recommended that the bolts or clamps be reused, as they are designed for a single bend only
- Torque values for clamps are based on dry bolts, the use of lubricant on bolts will adversely effect clamp performance
- Worn-out hose couplings can be dangerous
- They should be checked regularly and replace when necessary
- Each coupling user should review applications and add safety devices where indicated
- Note: pressurized steam is an extremely dangerous commodity
- Only hose, fittings, clamps and accessory items that have been approved for steam service should ever be used! never use an unapproved item for steam service
- Always follow the manufacturer's product recommendations for pressurized steam handling
- Warning: this product contains a chemical known to the State of California to cause birth defects or other reproductive harm
- Do not use in connection with drinking water
- Wash hands after handling
-
UNSPSC31162906
-
Package Description10/BX
-
