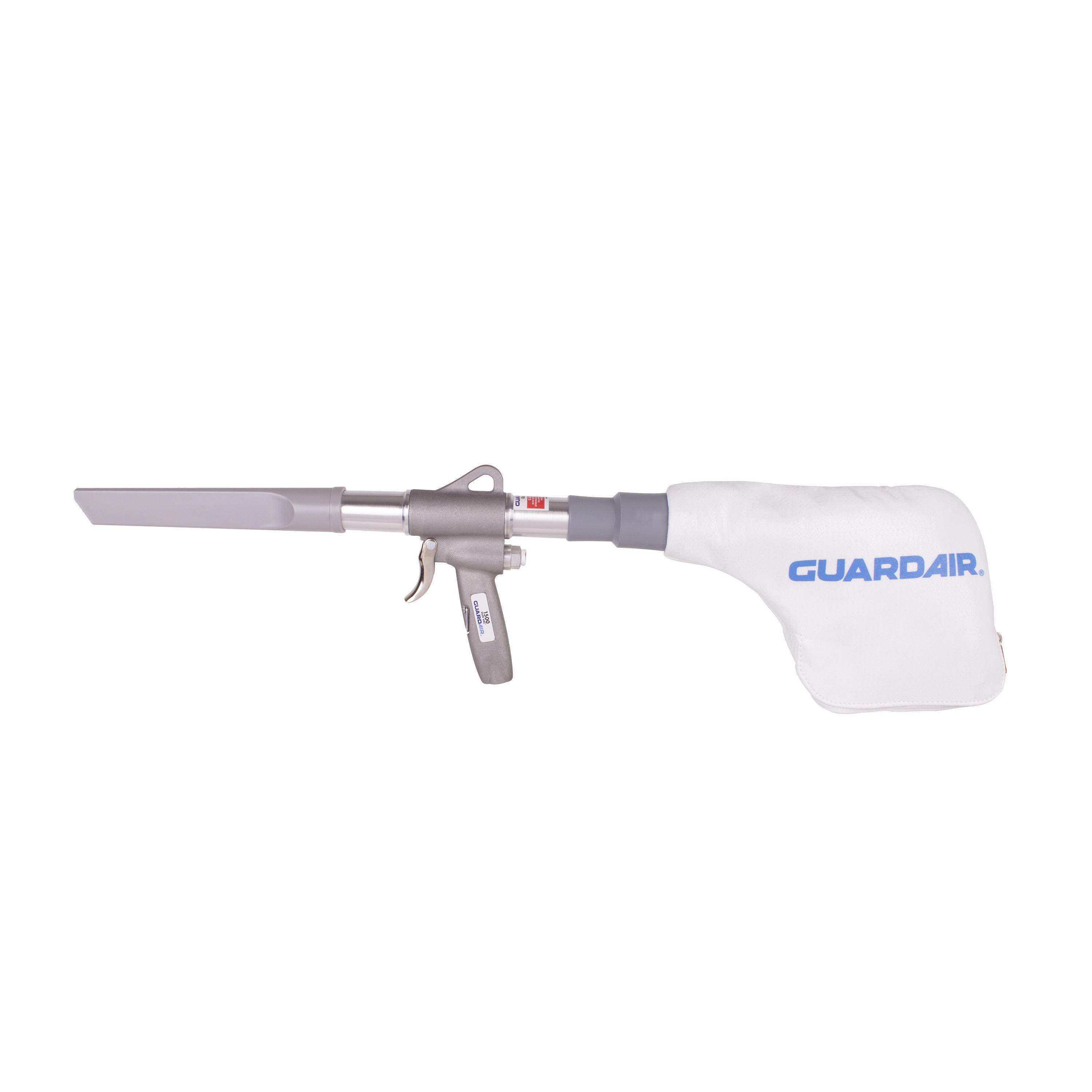

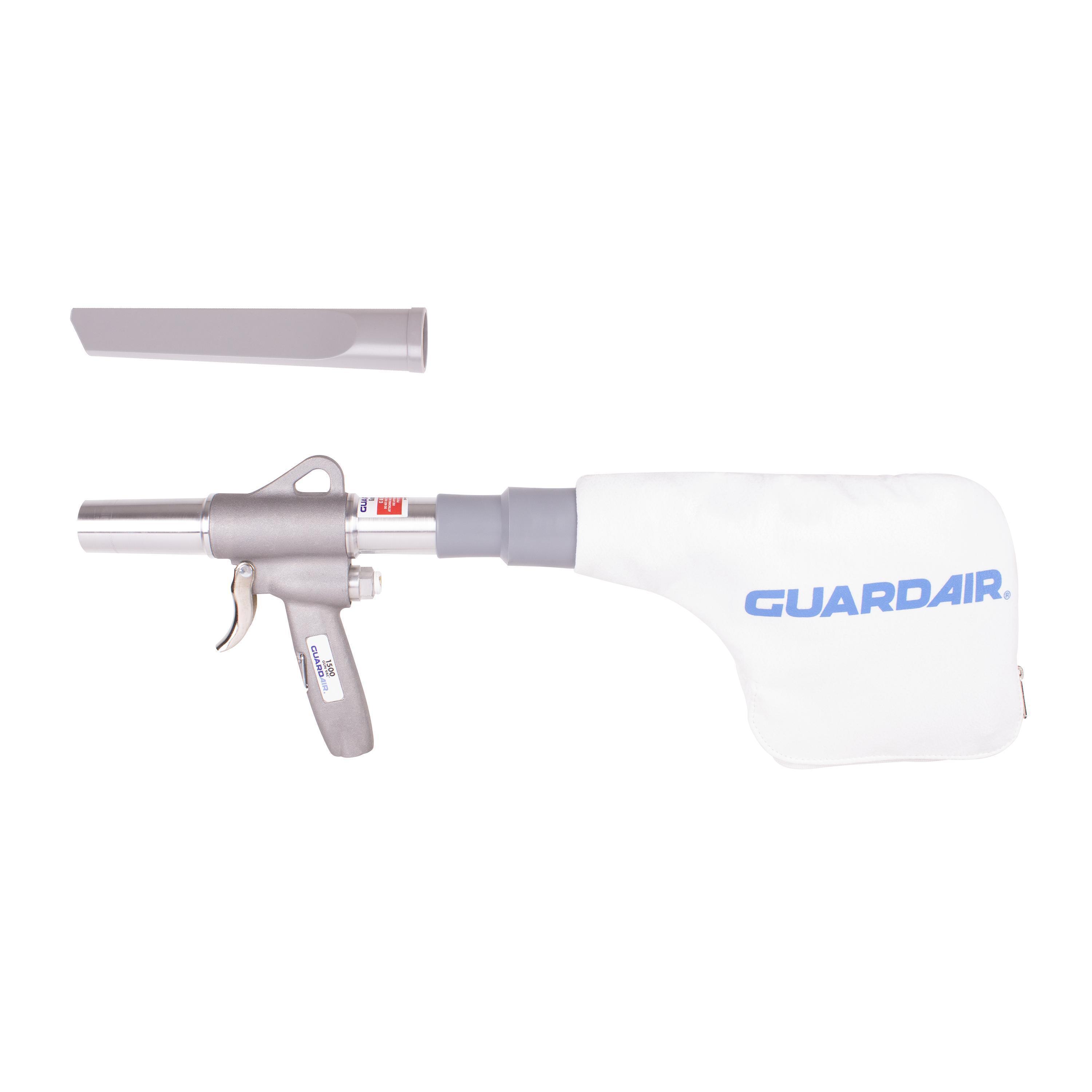

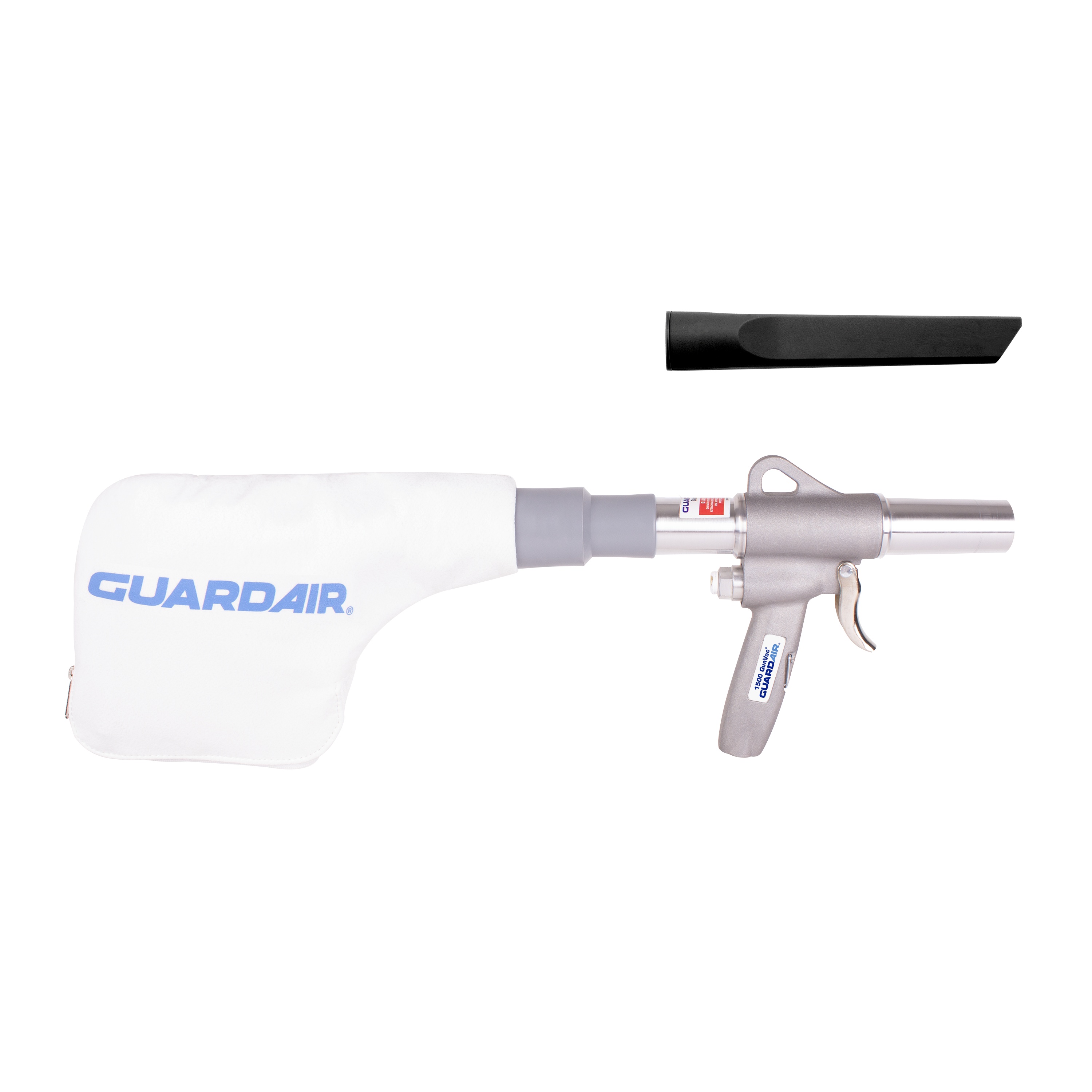

Guardair® 1500 Vacuum Air Gun Kit, Import
Place twice the power of a shop vacuum in the palm of your hand! Powered by standard shop compressed air with no electric motor to burn out, the unit hangs on a hook, ready for immediate use. Lightweight, heavy-duty, all metal construction. Tapered vacuum inlet accepts standard 1-1/4" vac accessories. Ergonomic handle with trigger lock for extended use. Unzip to empty, high-filtration collection bag attaches to 1-1/4" vacuum outlet via hose cuff. Alternatively, attach hose (not included) to vacuum outlet to transport chips and debris for remote collection. Features dual, ¼" FNPT compressed air inlets. Supply air at bottom of handle inlet for standard configuration, or secondary inlet for in-line configuration.
-
BrandGuardair®
-
UPC690773023384
-
Manufacturer Part Number1500
-
CountryUSA|Canada
-
Domestic/ImportImport
-
Specifications75 Vacuum Lift in H2O, 78 cfm Vacuum Flow, 29 cfm Air Usage at 100 psi
- Powerful suction - place twice the power of a standard shop vacuum in the palm of your hand
- No electric motor to burnout - powered by standard shop compressed air, the lightweight 1500 gun vac has no electric motor to burn out
- Easy to empty - high filtration collection bag attaches to rear of vacuum via hose cuff

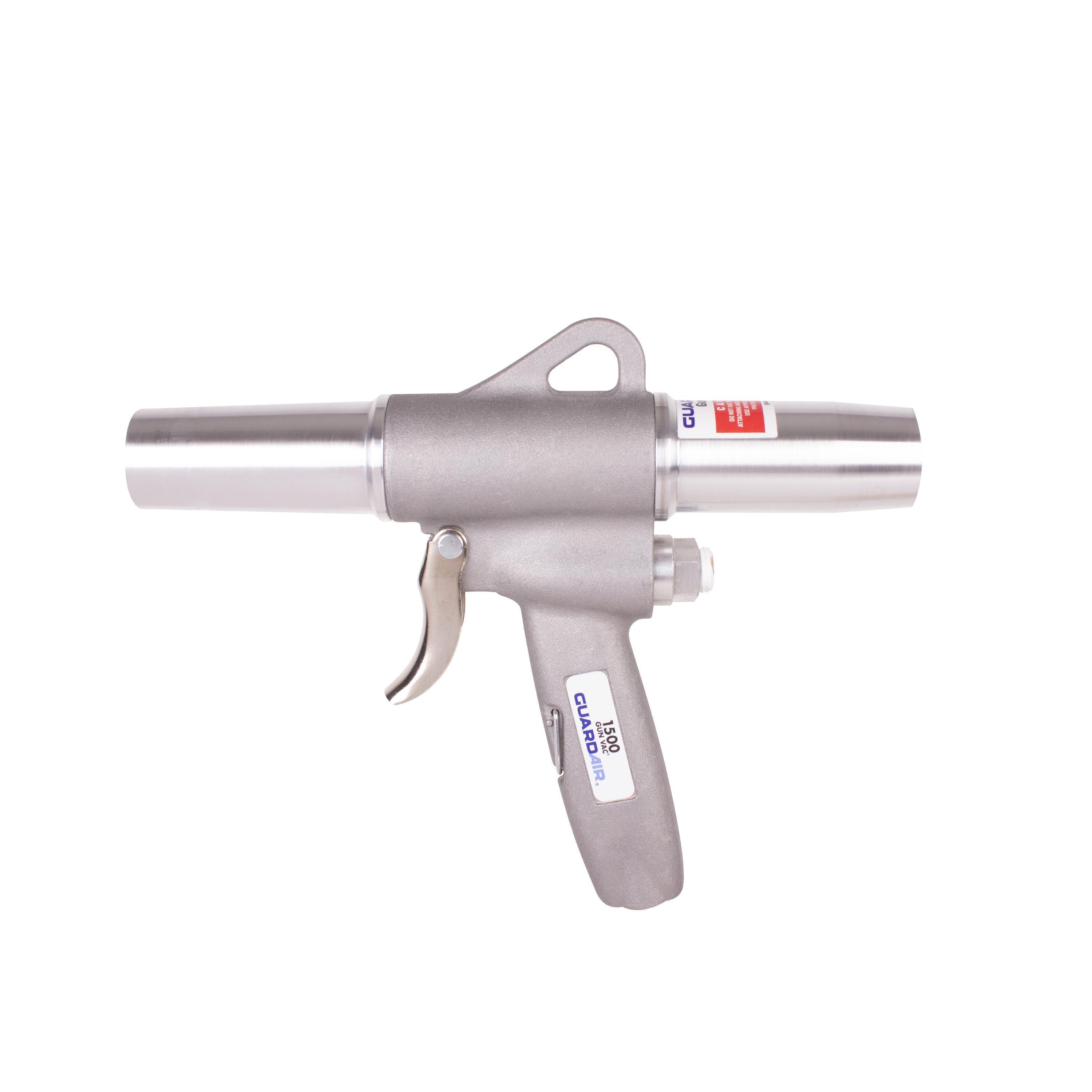

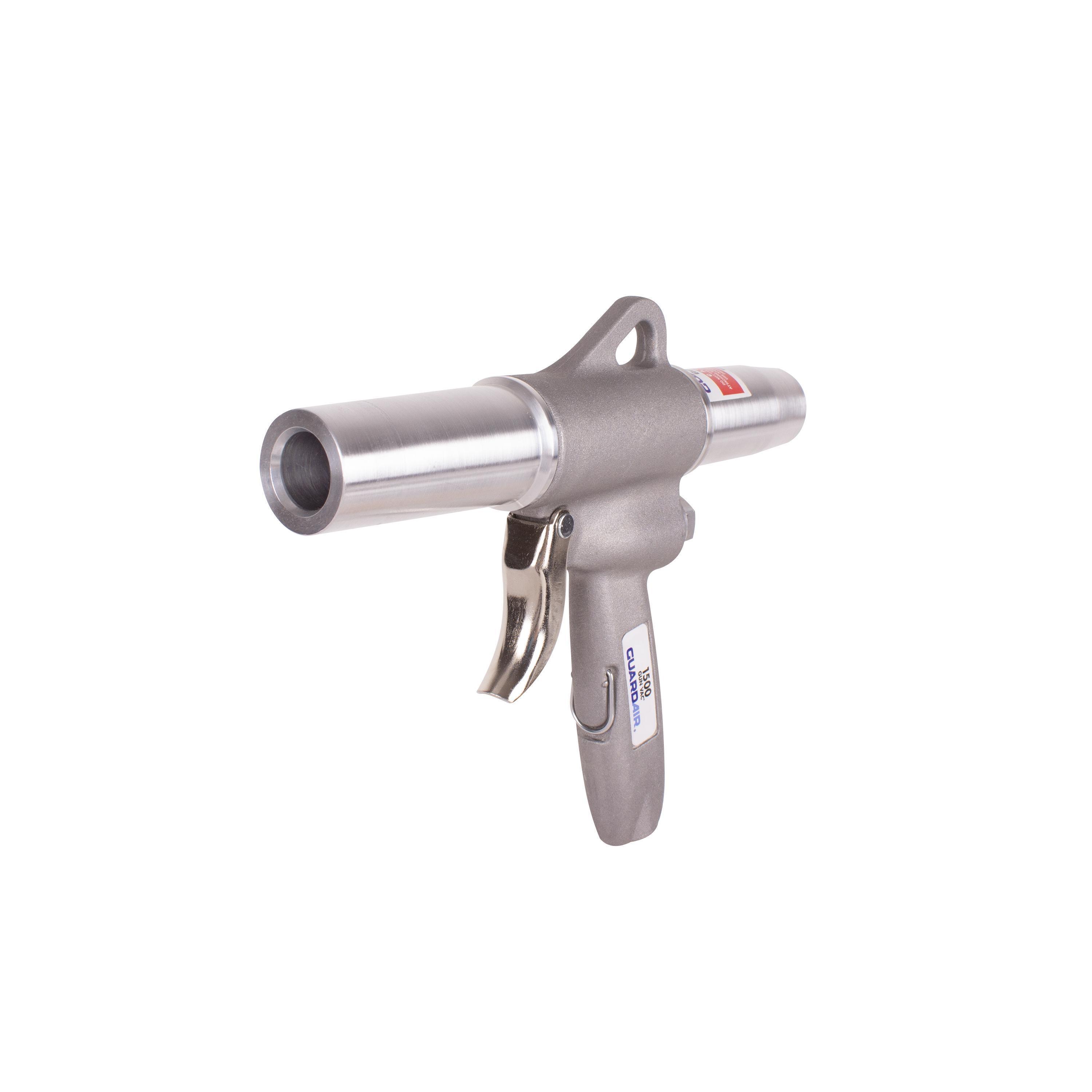

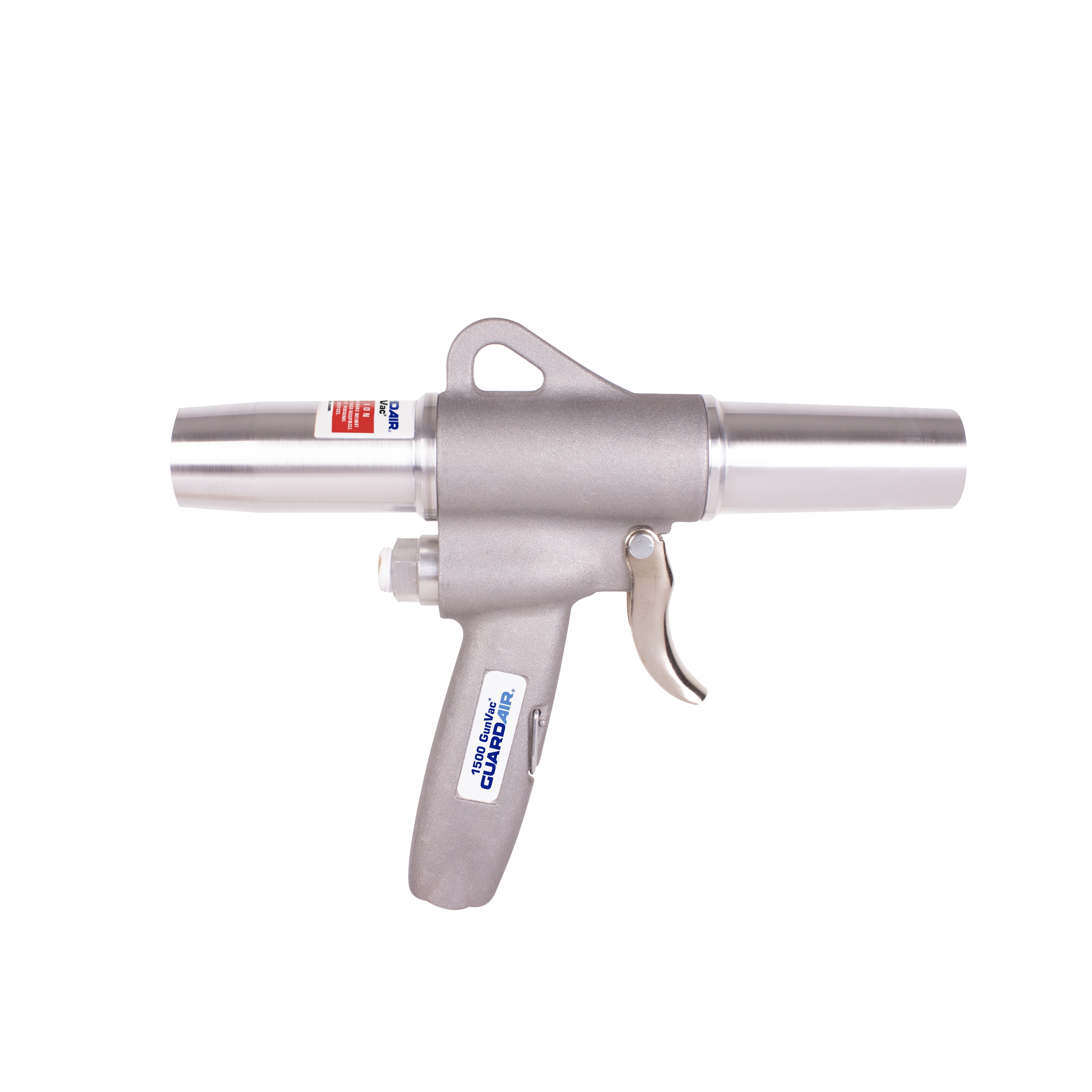

- Ergonomic heavy duty construction - rugged, all metal construction with comfortable contoured trigger

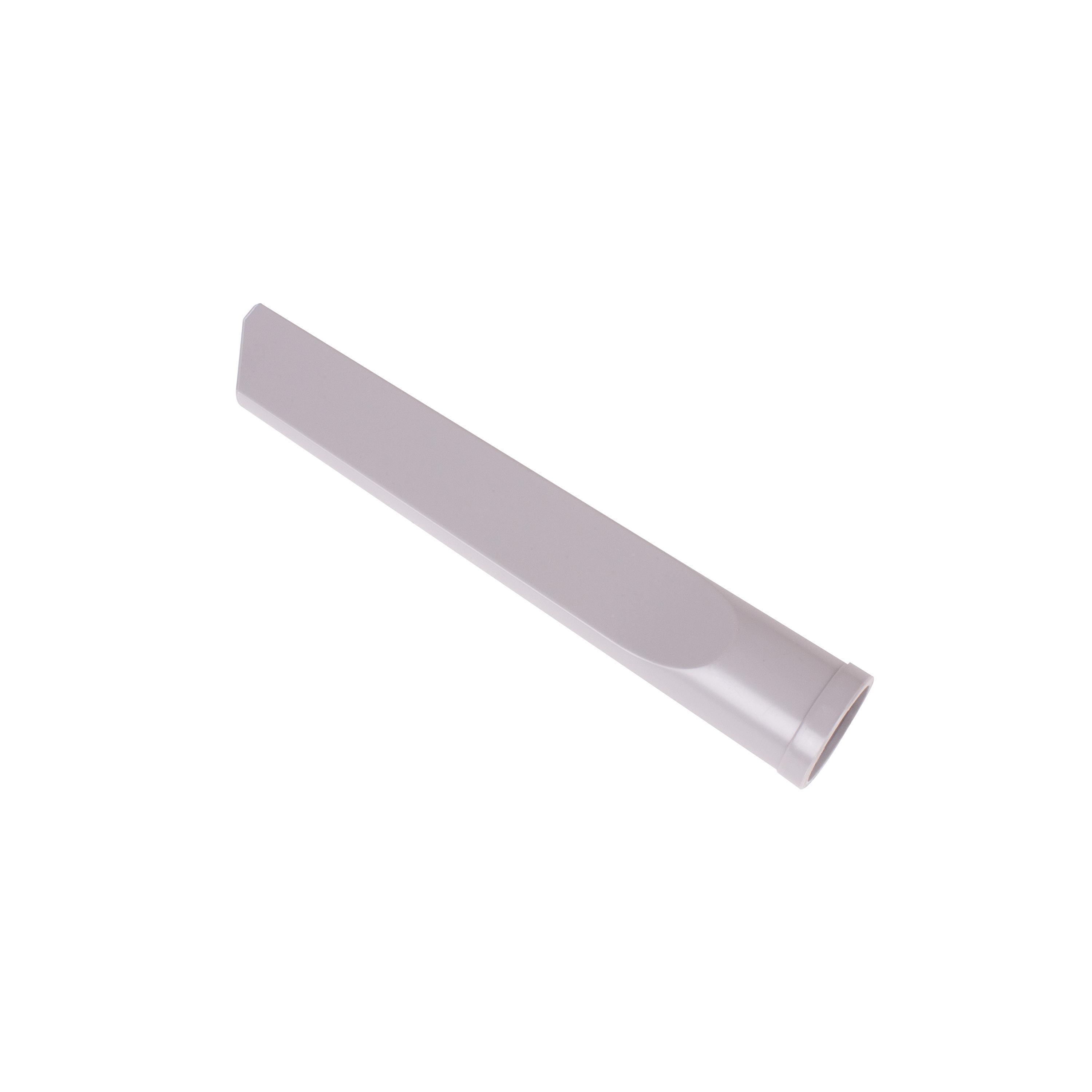

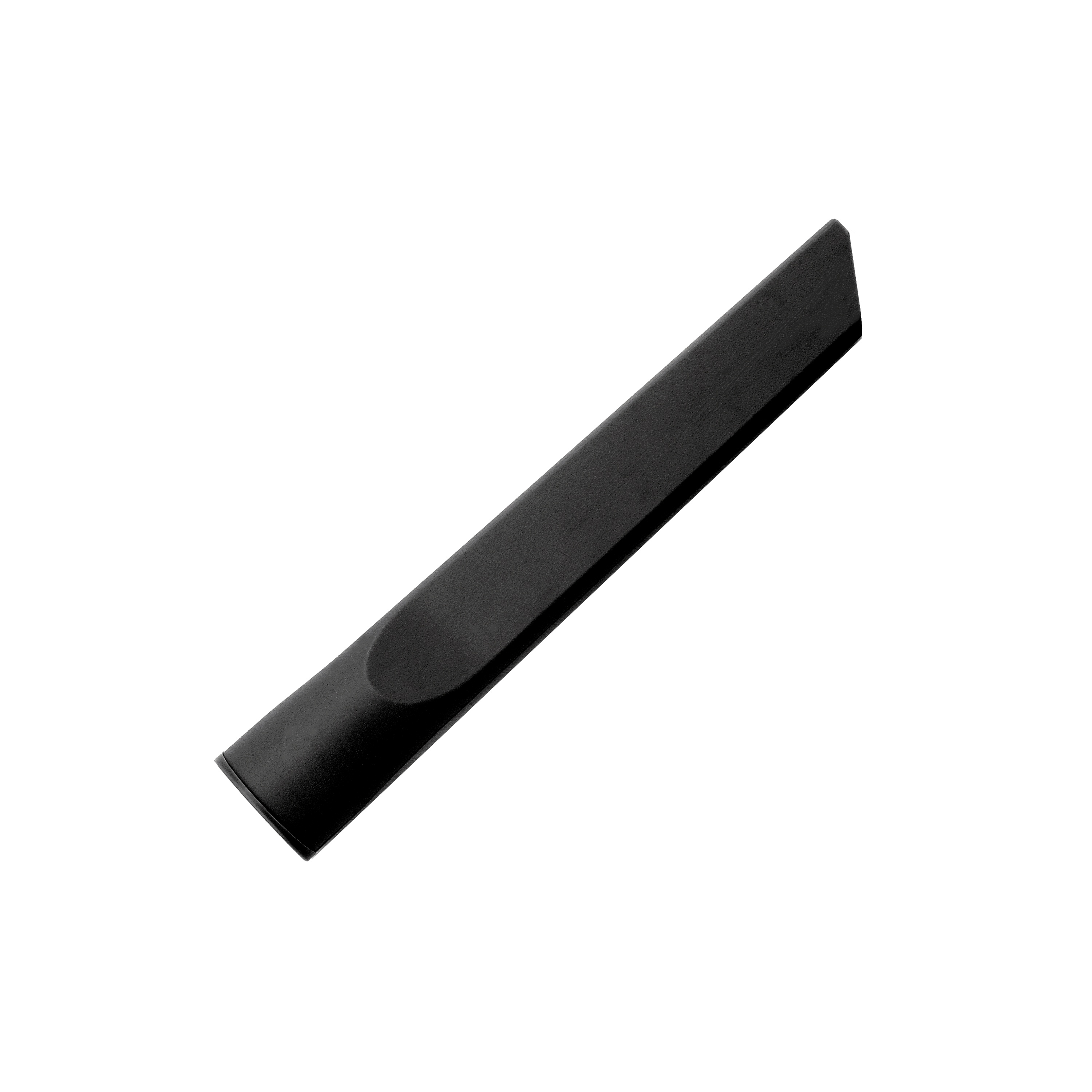

- 1/4 in FNPT inlet, 1/4 in FNPT optional rear inlet, tapered nose accepts all standard 1-1/4 in vac accessories
- Contoured comfort grip
- Convenient hanging eyelet
- High filtration collection bag with zipper
-
UNSPSC40141734
-
Specification Sheet
