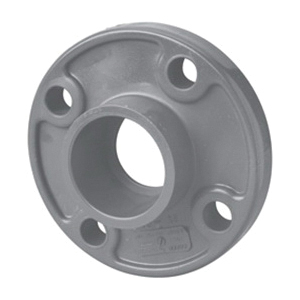

NIBCO® 851-015 1-Piece Solid Flange, 1-1/2 in, PVC, Socket, 150 lb, 5-1/32 in OD, Domestic
NIBCO® 851-015 1-Piece Solid Flange, 1-1/2 in, PVC, Socket, 150 lb, 5-1/32 in OD, Domestic
-
BrandLasco®
-
UPC025528722029
-
Manufacturer Part Number851-015
-
CountryUSA
-
Temperature Rating73.4 deg F
-
Thickness11/16 in
-
MaterialPVC
-
Pressure Class150 lb
-
Pressure Rating150 psi
-
Type1-Piece Solid
-
Connection TypeSocket
-
Schedule RatingSCH 80/XH
-
Nominal Size1-1/2 in
-
Domestic/ImportDomestic
-
Outside Diameter5-1/32 in
-
Length Through Hub1-9/16 in
- ASTM D-1784: Rigid PVC compounds and chlorinated PVC (CPVC) compounds
- Do not use Lasco® fittings for compressed air or gases
- Do not test PVC piping systems with compressed air or gases
- Do not use fittings with liquids not recommended by Lasco®
- Fitting modification voids the warranty
-
UNSPSC40174000
-
Package Description10/CTN
-
Standards/ApprovalsASTM D1784|ASTM D2464|ASTM D2467|ASTM F1970|ANSI B16.5|NSF Approved
-
WarrantyLimited
-
Catalog
-
Specification Sheet
