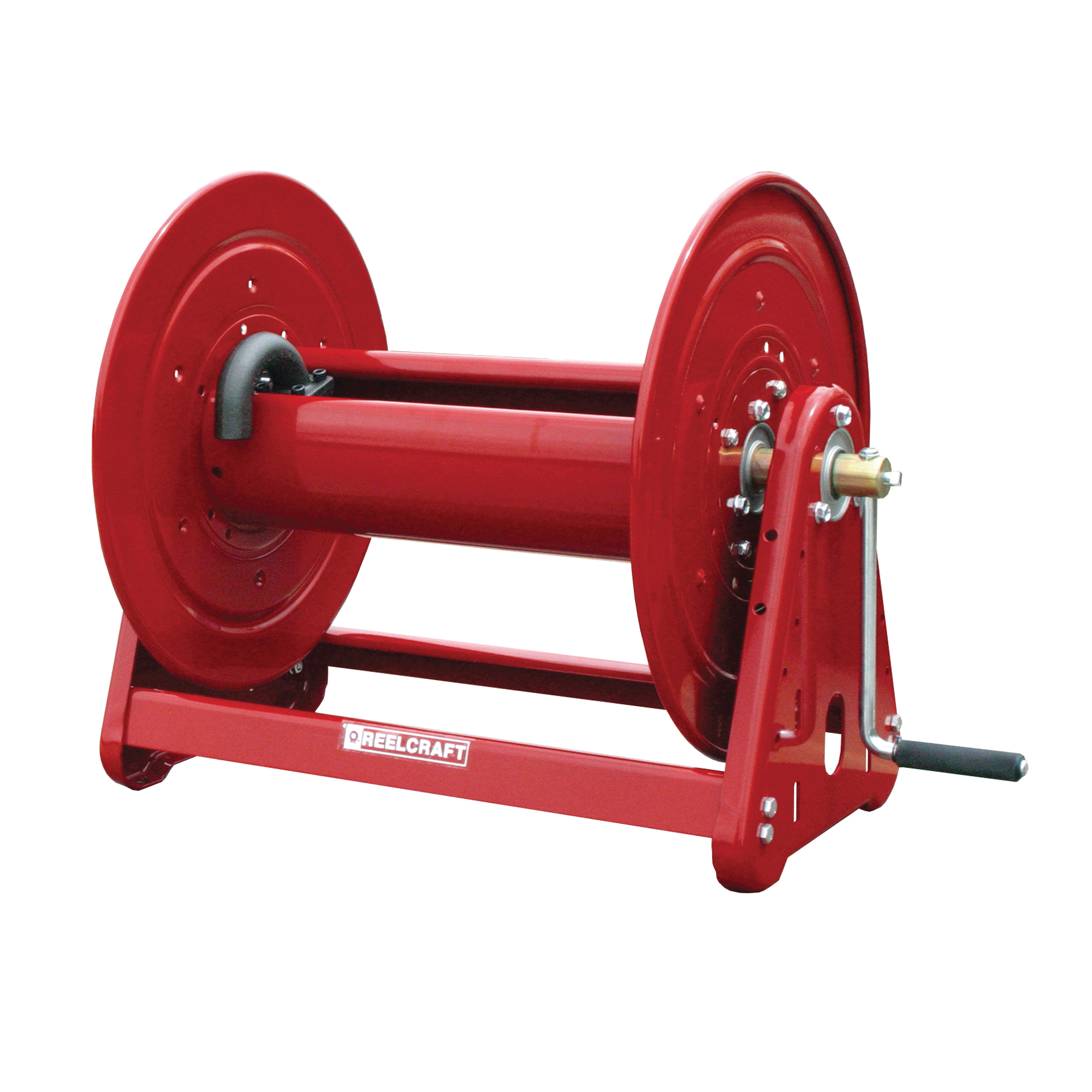

Reelcraft 3/4" HAND CRANK H/DUTY HOSE REELS REC CA-33118-L
The series 30000 reels are designed for rugged, heavy duty applications requiring long lengths of hose and large storage capacity. All bolted unitized construction with no welds to fatigue, full flow swivel and heavy gauge steel frame, spool and drum ensure longest service life. Series 30000's vibration proof, self-locking fasteners are ideal for industrial or field use such as turf care, pest control and industrial wash down applications.
-
BrandReelcraft®
-
UPC699567006244
-
Manufacturer Part Number600885-1
-
CountryUSA
-
FinishPowder Coated
-
MaterialHeavy Gauge Steel
-
Pressure Rating1000 psi
-
Reel Diameter3/4 in
-
TypeHeavy Duty
-
Series30000
-
Hose Capacity175 ft
-
Dimensions31 in L x 17-3/4 in W x 20-1/4 in H
-
Drive TypeHand Crank
-
Overall Width18 in

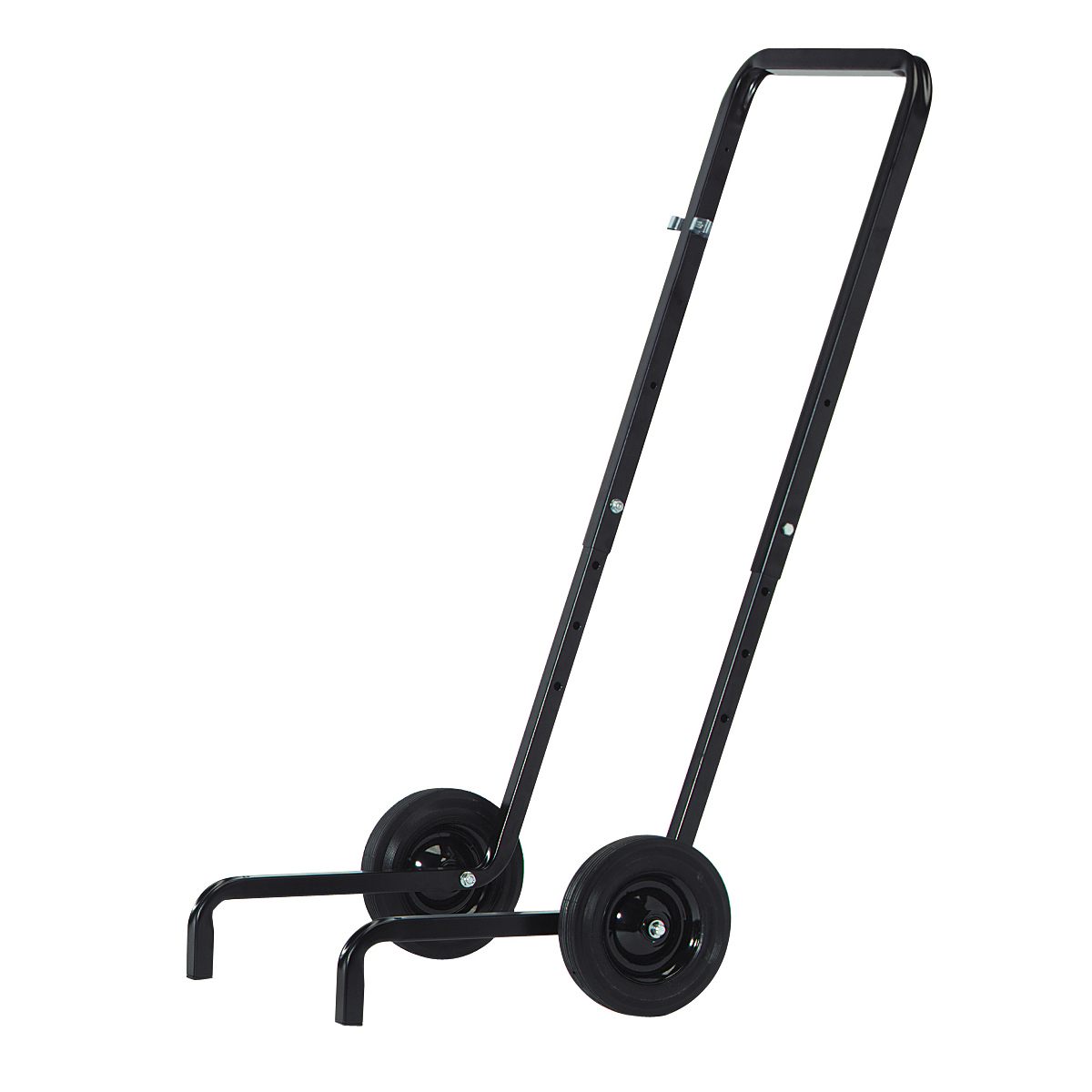

- Hose cart is design to be used in conjunction with the CA3X112 L series 30000 hose reel
- Full flow stress free swivel design - the full flow swivel combines the highest grade seal design and materials with bearing areas to insure maximum service life
- Quality finish and corrosion-resistant - individually powder coated components offer the maximum protection from premature corrosion
- 3/4 in female NPTF inlet
- 3/4 in female NPTF outlet
- 250 deg F maximum temperature rating
- Without hose
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 38L459 |
-
UNSPSC40142022
-
Package Description1/PK
-
Standards/ApprovalsPROP65: Cancer and Reproductive harm - www.P65Warnings.ca.gov
