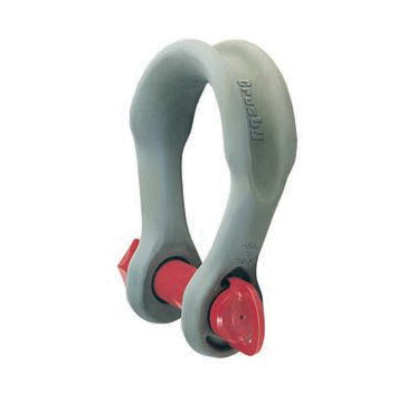

Crosby® 1021274 Wide Body Shackle, 18 ton Load, 2.8 in, 1.38 in Dia, Hot Dipped Galvanized
Crosby® 1021274 Wide Body Shackle, 18 ton Load, 2.8 in, 1.38 in Dia, Hot Dipped Galvanized
-
BrandCrosby®
-
Manufacturer Part Number1021274
-
CountryUSA
-
Load Capacity18 ton
-
FinishHot Dipped Galvanized
-
SeriesG-2160
-
Inner Length5.81 in
-
Inner Width2 in
-
Size2.8 in
-
Opening Size2.03 in
-
Body MaterialForged Alloy Steel
-
Overall Length9-3/8 in
-
Overall Width6.69 in
-
Eye Outer Size2.69 in
-
Pin Diameter1.38 in
- All ratings are in metric tons, embossed on side of bow
- Can be used to connect synthetic web slings, synthetic round slings or wire rope slings
- Increase in shackle bow radius provides minimum 58% gain in sling bearing surface and eliminates need for a thimble
- Increases usable sling strength minimum of 15% and greatly improves life of wire rope slings
- Approved for use at -40 to 400 deg F
- Bow and bolt are certified to meet charpy impact testing of 42 J min average at -4 deg F
- All 2160 shackles are individually proof tested and magnetic particle inspected
- Shackles requiring ABS, Lloyds and other certifications are available upon special request and must be specified at time of order
- Type approved and certification to DNV rules for certification of lifting appliances and are produced in accordance with DNV MSA requirements
- Databook is provided that includes required documents serialization/identification, material testing and proof testing
- Look for the Red Pin® the mark of genuine Crosby® quality
-
UNSPSC24101641
-
Standards/ApprovalsABS|Lloyds Certified
-
