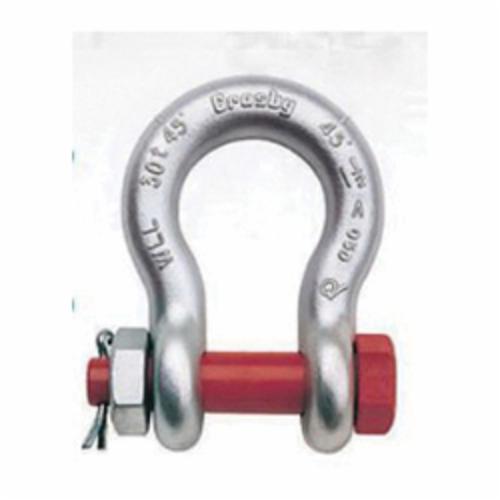

Crosby® 1021129, 2140-1 1/2 Anchor Shackle, 30 ton Load, 1-1/2 in, 1.63 in Dia Bolt Pin, Self-Colored
Crosby® 1021129 Anchor Shackle, 30 ton Load, 1-1/2 in, 1.63 in Dia Bolt Pin, Self-Colored
-
BrandCrosby®
-
UPC662547017875
-
Manufacturer Part Number1021129
-
CountryUSA
-
Load Capacity30 ton
-
FinishSelf-Colored
-
SeriesS-2140
-
Inner Length5-3/4 in
-
Inner Width3.88 in
-
Size1-1/2 in
-
Opening Size2.38 in
-
Body MaterialForged Alloy Steel
-
Overall Length10 in
-
Eye Outer Size3.62 in
-
Pin Diameter1.63 in
-
Pin MaterialAlloy Steel
-
Pin TypeBolt
- Shackles are quenched and tempered and can meet DNV impact requirements of 42 joules at -20 deg C
- Alloy bows, alloy bolts
- Meets performance requirements of grade 8 shackles
- Working load limit is permanently shown on every shackle
- Bolts are galvanized and painted red
- Sizes 1-1/2 in and larger are RFID equipped
- Approved for use at -40 to 204 deg C
- Proof tested
- +/-0.13 in L tolerance
- +/-0.25 in W tolerance
-
UNSPSC24101641
-
Standards/ApprovalsASME B30.26|RR-C-271F Type IVA|Grade A|Class 3|ABS 2007|DNV Certified
-
