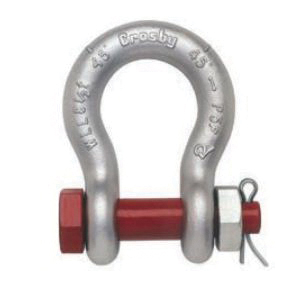

Crosby® 1019613 Anchor Shackle, 13.5 ton Load, 1-3/8 in, 1.53 in Dia Bolt Pin, Hot Dipped Galvanized

Name: Crosby® 1019613 Anchor Shackle, 13.5 ton Load, 1-3/8 in, 1.53 in Dia Bolt Pin, Hot Dipped Galvanized
Brand: Crosby Group
SKU: CROG213013/8
Price: 443.8 USD
Availability: InStock

0 Ratings

$443.80

SKU: CROG213013/8

Crosby® 1019613 Anchor Shackle, 13.5 ton Load, 1-3/8 in, 1.53 in Dia Bolt Pin, Hot Dipped Galvanized

In Stock

HCI of Jackson: 3

HCI of Dyersburg: 0

HCI of Humboldt: 0

HCI of Union City: 0

HCI of Gallatin: 0

Back to: Shackles

Main specs

Brand

Crosby®
Manufacturer Part Number

1019613
Country

USA

Specification

Load Capacity

13.5 ton
Finish

Hot Dipped Galvanized
Series

G-2130
Inner Length

5-1/4 in
Inner Width

3.63 in
Size

1-3/8 in
Opening Size

2-1/4 in
Body Material

Carbon Steel
Overall Length

9.16 in
Overall Width

7.21 in
Eye Outer Size

3-5/16 in
Pin Diameter

1.53 in
Pin Material

Alloy
Pin Type

Bolt

Features

Working load limit and grade 6 permanently shown on every shackle
Approved for use at -40 to 400 deg F
3.1 Certification as standard available for charpy and statistical proof test from 3.25 ton up to 25 tons to DNV2.7-1 and EN13889
Crosby® 3.25 ton through 25 ton G2130OC anchor shackles are type approved to DNV certification notes 2.7-1 offshore containers
The Crosby® shackles are statistical proof and impact tested to 42 J min average at -4 deg F
All other 2130 shackles can meet charpy requirements of 42 J average at -4 deg F when requested at time of order
Look for the Red Pin® the mark of genuine Crosby® quality

Additional Information

UNSPSC

24101641
Standards/Approvals

ASME B30.26|ABS 2007 Steel Vessel Rule 1-11-17.7|DNV2.7-1 Certified|EN13889|Federal Spec RR-C271F|Type IVA|Grade A|Class 3
