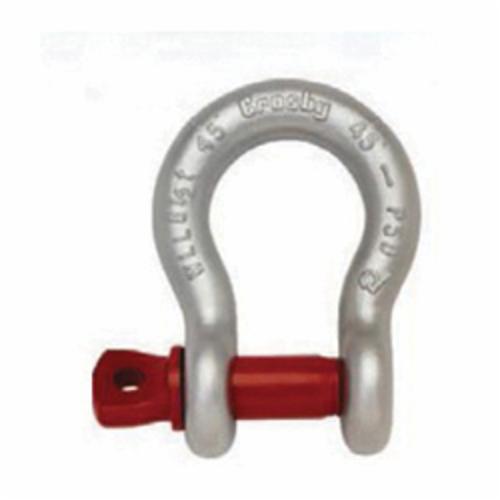

Crosby® 1018437, G-209-7/16, Anchor Shackle, 1.5 ton Load, 7/16 in, 1/2 in Dia Screw Pin, Hot Dipped Galvanized
Crosby® 1018437 Anchor Shackle, 1.5 ton Load, 7/16 in, 1/2 in Dia Screw Pin, Hot Dipped Galvanized
-
BrandCrosby®
-
Manufacturer Part Number1018437
-
CountryUSA
-
Load Capacity1.5 ton
-
FinishHot Dipped Galvanized
-
SeriesG-209
-
Inner Length1.69 in
-
Inner Width1.16 in
-
Size7/16 in
-
Opening Size3/4 in
-
Body MaterialCarbon Steel
-
Overall Length2.91 in
-
Overall Width2.37 in
-
Eye Outer Size1.06 in
-
Pin Diameter1/2 in
-
Pin MaterialAlloy
-
Pin TypeScrew
- Working load limit and grade 6 permanently shown on every shackle
- Shackles can be furnished proof tested with certificates to designated standards, such as ABS, DNV, Lloyds or other certification
- Approved for use at -40 to 400 deg F
- 3.25 ton through 25 ton G209 anchor shackles are type approved to DNV certification notes 2.7-1- offshore containers
- The shackles are statistical proof and impact tested to 42 J min average at -4 deg F
- The tests are conducted by Crosby® and 3.1 test certified
- All other 209 shackles can meet charpy requirements of 42 J average at -4 deg F upon special request
- Look for the Red Pin® the mark of genuine Crosby® quality
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 29WP62 |
-
UNSPSC24101641
-
Standards/ApprovalsABS/DNV/Lloyds/CE Certified|ASME B30.26|ABS 2007 Steel Vessel Rule 1-11-17.7|DNV Certification Notes 2.7-1|Federal Spec RR-C-271F|Type IVA|Grade A|Class 2
-
