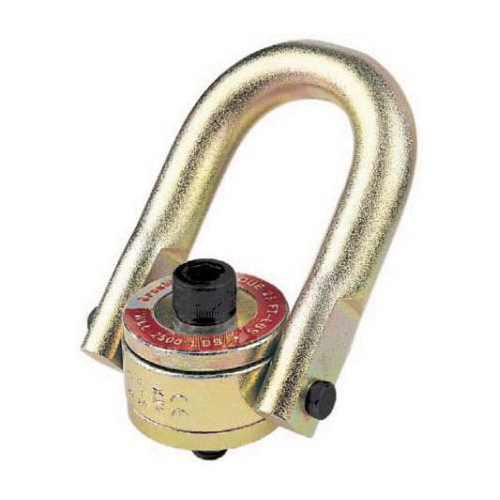

Crosby® 1016975 HR-125 Swivel Hoist Ring, 15000 lb Load, 180 deg Pivot, 360 deg Swivel, 1.19 in Bail, 1-1/4-7 UNC Thread
Crosby® 1016975 HR-125 Swivel Hoist Ring, 15000 lb Load, 180 deg Pivot, 360 deg Swivel, 1.19 in Bail, 1-1/4-7 UNC Thread
-
BrandCrosby®
-
Manufacturer Part Number1016975
-
CountryUSA
-
Load Capacity15000 lb
-
Thread Size1-1/4-7 UNC
-
SeriesHR-125
-
Dimensions6.18 in W
-
Swivel Angle360 deg
- Rated at 100% at 90 deg angle
- 100% Individually proof tested to 2-1/2X the working load limit with certification and statistically magnetic particle inspected
- Each product has a product identification code (PIC) for material traceability, along with the working load limit and the name Crosby® or "CG" stamped into it
- Importantly, these hoist rings meet other critical performance requirements including fatigue life, impact properties and material traceability
- Fatigue rated to 20000 cycles at 1-1/2X the working load limit
- Individually packaged along with proper application instructions and warning information
- Bolt is secured with E-clip, threads are grooved, this method allows for easy disassembly and assembly of hoist ring for thorough examination of all components
- Bolts are individually proof tested
- Top washer has the following features - the working load limit and recommended torque value are permanently stamped into each washer
- Washer is color coded for easy identification, red for UNC thread
- All threads listed are UNC
-
UNSPSC24101600
-
Standards/ApprovalsASME B30.26
-
