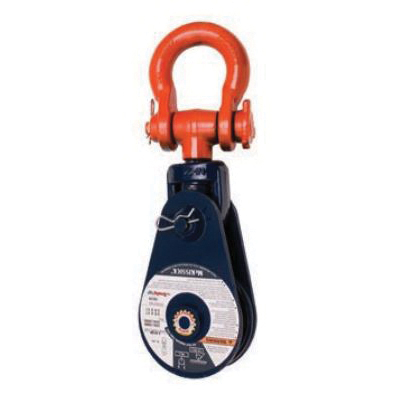

CROSBY 01-69212 419 Light Champion Snatch Block With Shackle, Wire Rope Cable, 5/16 to 3/8 in, 2 ton Load, 3 in OD
Model Number: Light Duty Snatch Block #419Working Load Limit (WLL): 2 Tons (4,000 lbs)Sheave Diameter: 3 inches Design Feature: Features a drop-side opening style that allows easy insertion of wire rope without requiring full reeving.
-
BrandMcKissick®
-
Manufacturer Part Number109037
-
CountryUSA
-
Load Capacity2 ton
-
Cable TypeWire Rope
-
Maximum Cable Size5/16 to 3/8 in
-
Series419 Light Champion
-
Sheave Outside Diameter3 in
-
BearingsSelf-Lubricating Bronze Bushing
- Forged steel swivel tees, yokes and shackles
- Opening feature permits insertion of rope while block is suspended from gin-pole
- 3 in thru 18 in 418 and 419 blocks have exclusive bolt-retaining spring to assure no lost bolts
- Can be furnished with S-4320 hook latch
- Pressure lube fittings
- 3 to 10 in feature dual rated wireline sheaves
- Fitted with 1-1/4 in ID swivel eye
-
UNSPSC24101613
-
Standards/ApprovalsASME B30.26
-
