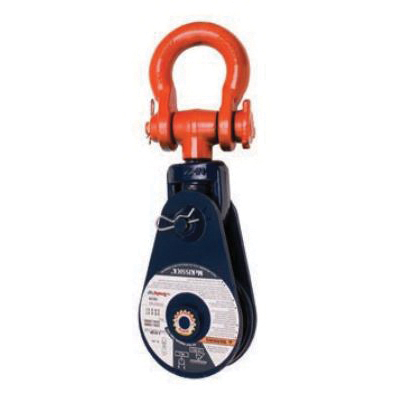

CROSBY 01-09064 419 Light Champion Snatch Block With Shackle, Wire Rope Cable, 3/8 to 1/2 in, 4 ton Load, 4-1/2 in OD
Working Load Limit (WLL): 4 Tons (8,800 lbs) with a 4:1 design safety factor. Sheave Diameter: 4-1/2 inches (Single sheave). Wire Rope Compatibility: Designed for wire rope diameters ranging from 3/8" to 1/2". Bearing Type: Self-lubricating bronze bushing with integrated pressure lubrication fittings for easy maintenance. Material & Finish: Painted alloy steel construction featuring a forged steel swivel shackle. Total Product Weight: 12 lbs.
-
BrandMcKissick®
-
Manufacturer Part Number109064
-
CountryUSA
-
Load Capacity4 ton
-
Cable TypeWire Rope
-
Maximum Cable Size3/8 to 1/2 in
-
Series419 Light Champion
-
Sheave Outside Diameter4-1/2 in
-
BearingsSelf-Lubricating Bronze Bushing
- Forged steel swivel tees, yokes and shackles
- Opening feature permits insertion of rope while block is suspended from gin-pole
- 3 in thru 18 in 418 and 419 blocks have exclusive bolt-retaining spring to assure no lost bolts
- Can be furnished with S-4320 hook latch
- Pressure lube fittings
- 3 to 10 in feature dual rated wireline sheaves
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 48FP96 |
-
UNSPSC24101613
-
Standards/ApprovalsASME B30.26
-
