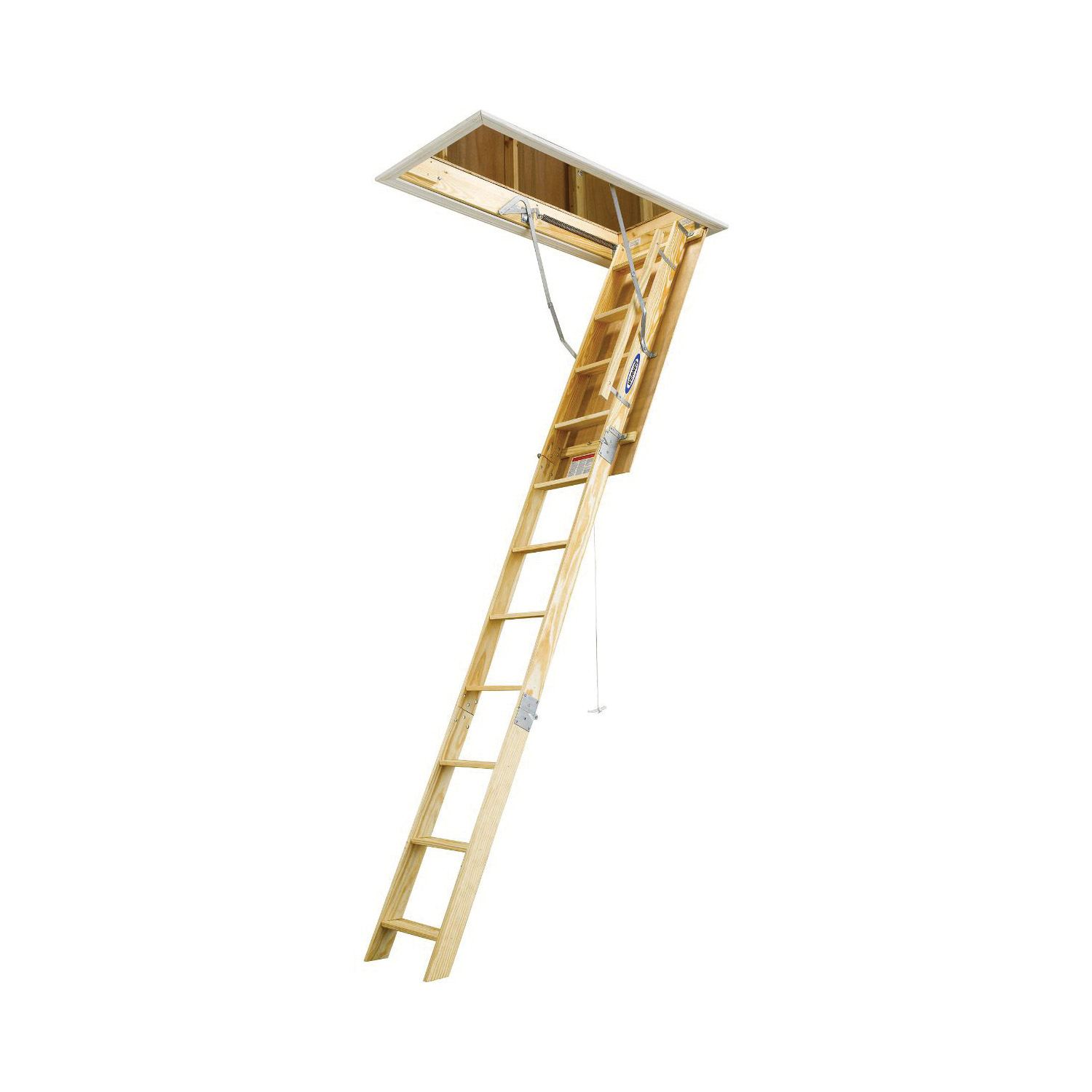

WERNER HEAVY DUTY 300# ATTIC LADDERS WH-2208
The WH2208 wood heavy duty attic ladder boasts a duty rating of 350 pounds. These ladders come fully assembled and ready to install. Full wrap around door hinge minimizes heat loss. High quality door can be painted or stained. Pull string allows for easy opening and closing. Hinges butt metal to metal to maintain ladder rigidity. Counter-balance mechanism eliminates sag and springiness.
-
BrandWERNER®
-
UPC051751023015
-
Manufacturer Part NumberWH2208
-
CountryUSA
-
Load Capacity350 lb
-
MaterialWood
-
TypeCeiling Heavy Duty Folding
-
ANSI CodeA14.9
-
SeriesWH Series
-
Step Width4-1/2 in
- Counter-balance mechanism eliminates sag and springiness
- Full wrap around door hinge minimizes heat loss
- High quality door can be painted or stained
- Hinges butt metal to metal to maintain ladder rigidity
- Pull string allows for easy operation
- Easy to open and close
- Fully assembled and ready to install
- 8 ft size
- 14-1/4 in W ladder
- Spring locking device
- Rope opening device
- Plywood door material
- Pine frame material
- 3/4 x 4-1/2 in rail
- 12-3/4 in L-step
- 3/4 in x 3-1/2 in grooved steps actual lumber
- Full width door hinge
- Metal to metal rail hinge
- Requires cutting foot angle
-
UNSPSC30191508
-
Instruction/Installation Manual
