Power Team 60-TON 6"-STROKE HYD/CYLINDER/RAMS PTD RH-606

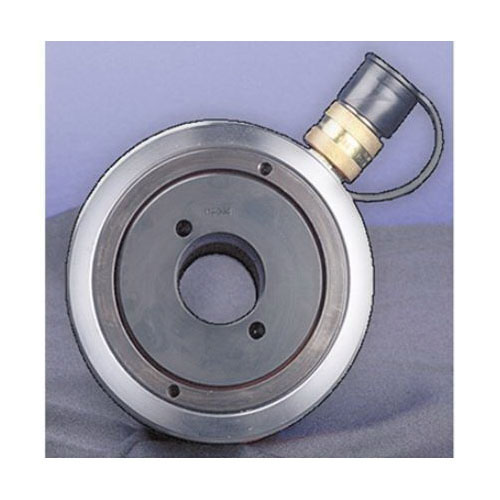

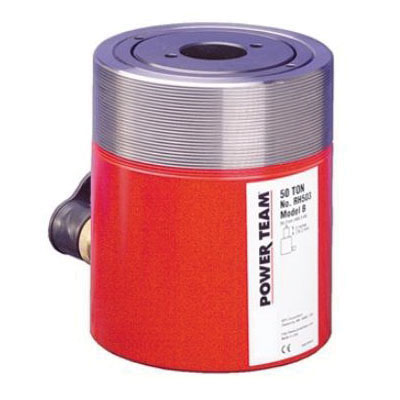

Power Team® RH606 RH Series Center Hole Spring-Return Single-Acting Hydraulic Cylinder, 60 ton Load, 12-1/4 in H Min, 18-1/4 in H Max, 6 in
-
BrandPower Team®
-
Manufacturer Part NumberRH606
-
CountryUSA|Canada
-
Load Capacity60 ton
-
Piston Stroke6 in
-
Maximum Height18-1/4 in
-
Minimum Height12-1/4 in
-
TypeCenter Hole Spring-Return Single-Acting
-
SeriesRH Series
-
Base Width6-1/4 in
- Cylinder body, piston and gland nut
- Most models feature threaded collar, excludes the RH203 and RHA306 models
- Aluminum cylinder body and piston are featured on the RHA306 cylinder
- Aluminum cylinder body and piston are featured on the RHA306 cylinder
-
UNSPSC24111800
-
Standards/ApprovalsANSI/ASME B30.1|CE Certified
-
Instruction/Installation Manual
-
Catalog
-
Line Drawing
