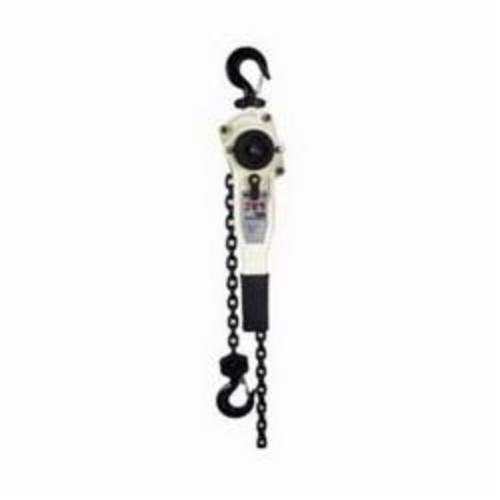

3-TON 20'-LIFT LEVER HOISTS JET187532
Jet® JLP-A series lever hoists combine safety, reliability and durability that are designed to perform in light duty industrial applications. Safety features such as optional overload protection prevents the lever hoist from lifting or pulling damaging loads above its rated capacity. Jet® also offers the option of shipyard hooks, virtually eliminating stretched hooks caused by point or tip loading. The Jet® JLP-A lever hoist is available in 1/4 ton to 6 ton capacities with standard lifts of 5, 10, 15, 20 and 30 ft (custom lifts available). The Jet® JLP-A is the perfect choice for a contractor grade lever hoist.
-
BrandJET®
-
UPC731325473407
-
Manufacturer Part NumberJT9-287503
-
CountryUSA
-
Load Capacity3 ton
-
Pull to Lift Rated Load71 lb
-
Reeving1
-
Minimum Between Hooks18-8/9 in
-
SeriesJLP-A
-
Hook Opening2.46 in
-
Dimensions7.88 in W
-
Brake TypeDual Pawl Weston
-
Lever Length16-1/7 in
-
Lifting Height20 ft
- Weston style dual pawl brake system- double pawl design increases safety
- Alloy steel hooks- industrial rated hooks rotate 360 deg for easy rigging
- Hooks slowly stretch to indicate an overload situation increasing jobsite safety
- Needle bearing design promotes long hoist life with low wear reducing downtime
- Grade 80 load chain- grade 80 black oxide coated load chain for durability
- All steel construction impact resistant covers that provide durability and protection
- Compact design smaller body and lightweight design for low headroom applications and use in confined areas
- Certification- load tested to 125% of capacity with certificate
-
Alternative Part Number287503
-
UNSPSC24101602
-
Standards/ApprovalsANSI/ASME B30.21, HST-3|OSHA Compliant
-
Specification Sheet
-
Owners/User Manual
