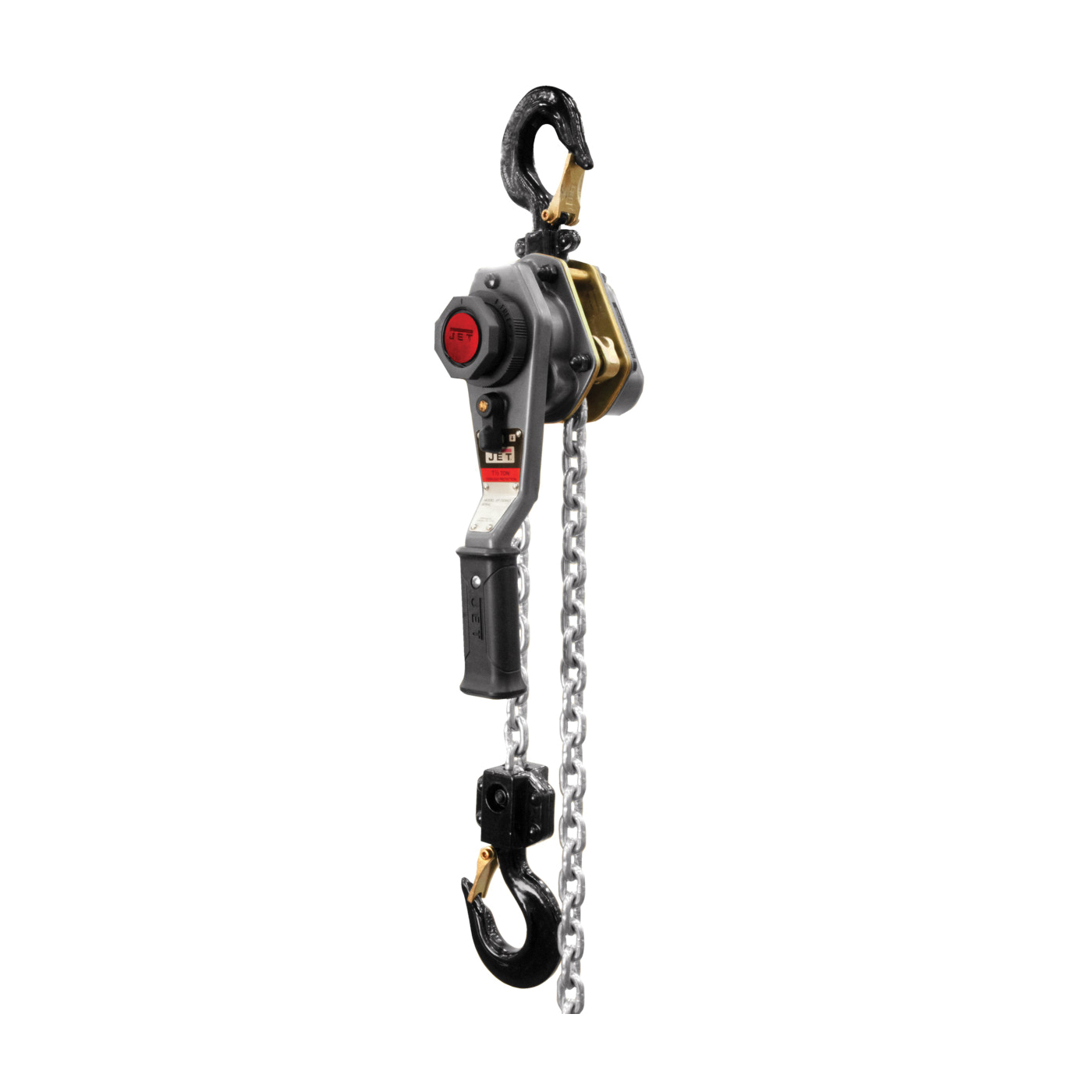

Jet Tools 1-1/2-T 20'-LIFT HAND LEVER HOISTS JET 187521
JET® JLH Series Lever Hoists incorporate safety, durability and heavy duty construction for operation in severe industrial environments. Safety comes standard with features such as slip clutch style overload protection, which prevents the lever hoist from lifting or pulling damaging loads beyond its rated capacity. Our lightweight design, shorter handle and smaller body are ideal for confined areas and low headroom applications. Backed by a lifetime replacement warranty, JET® revolutionary single-piece brake design fuses the three components into the safest brake system in the market. The JET® JLH Series is available in 1/4 to 9 ton capacities, with standard lifts of 5 ft, 10 ft, 15 ft and 20 ft (custom lifts available). Whether it's inverted, vertical, horizontal or any other load angle, the JET® JLH Lever Hoist is the solution for your heavy duty industrial needs.
-
BrandJET®
-
UPC731325472752
-
Manufacturer Part NumberJT9-376303
-
CountryUSA
-
Load Capacity1.5 ton
-
Chain MaterialSteel
-
Pull to Lift Rated Load74.89 lb
-
Minimum Between Hooks13.19 in
-
Handle TypeLever
-
SeriesJLH
-
Hook Opening1.26 in
-
Dimensions6.38 in W
-
Brake TypeWeston Style Double Ratchet Pawl
-
Lever Length10-1/4 in
-
Lifting Height20 ft
- Caged needle bearings support the load sheave to increase efficiency and promote smooth operation
- Enhanced ergonomic grip allows for greater operator control and increased comfort
- Grade 100, corrosive-resistant plated load chain is a smaller, more compact link that is 20% stronger than Grade 80 load chain
- Heat treated load plates
- Industrial rated alloy steel hooks rotate 360 deg for easy rigging
- Weston style double ratchet pawl brake design splits the load to opposite sides of the ratchet gear for greater load security
- Fused brake system and offset handle for safety
- Heavy duty use
-
Alternative Part Number376303
-
UNSPSC24101602
-
Standards/ApprovalsPROP65: This product can expose you to chemicals including lead and cadmium which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to http://www.p65warnings.ca.gov.
-
WarrantyLifetime
-
Specification Sheet
-
Instruction/Installation Manual
