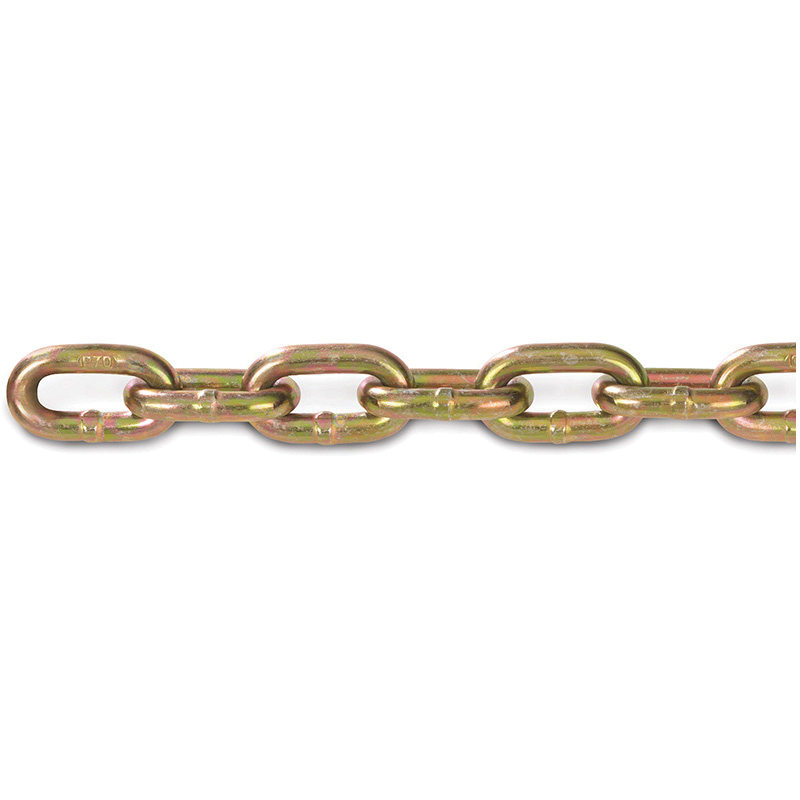

TCI Chain 1/4" GR-70 TRANSPORT CHAIN TCI 17096
Transport chain is considered the chain of choice for load binding applications. It is also well suited for tie-downs, towing and logging operations. Engineered for maximum strength, this domestic transport chain is made from heat treated carbon strength steel. Heat treatment is associated with increased steel strength which improves product performance. Its strength to weight ratio exceeds that of proof coil and high-test. This chain meets department of transportation regulations and is permanently stamped with its working load limit every ten links. Order unit is foot. Not for overhead lifting.
-
BrandPeerless
-
Manufacturer Part Number5440255
-
CountryUSA
-
Load Capacity3150 lb
-
FinishYellow Chromate
-
MaterialCarbon/Alloy
-
Trade Size1/4 in
-
TypeDomestic
-
Grade70
-
Length150 ft
- Permanently marked, every ten links are stamped with the chain's working load limit and its grade
- This transport chain's strength to weight ratio exceeds that of proof coil and high-test
- Made from heat treated carbon strength steel - heat treating is associated with increasing steel strength with improves product performance
- This high quality transport chain is considered the leading choice for load binding applications
- Made to short link specs
-
UNSPSC24101600
-
Package Description1/PK
-
Standards/ApprovalsNACM Standard|PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.|Made in USA
-
Warranty12 Months
-
Specification Sheet
-
Catalog
