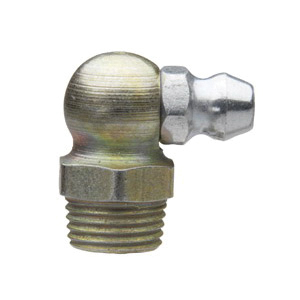

Alemite® 1723-B 90 deg Thread Forming Fitting, 1/8 in Taper Thread, 49/64 in OAL, Steel, Trivalent Zinc Plated
Alemite thread forming fittings have special tapered drive threads which reshape the material in an untapped hole to provide a leak proof seal. They are most effectively installed by spinning into the untapped hole, but may be driven straight into the untapped hole. Thread forming fittings can be replaced by any standard threaded fitting or by another thread forming fitting.
-
BrandAlemite®
-
UPC098468100370
-
Manufacturer Part Number1723-B
-
CountryUSA
-
FinishTrivalent Zinc Plated
-
MaterialSteel
-
Thread Size1/8 in Taper
-
Type90 deg
-
Hex Size7/16 in
-
Overall Length49/64 in
- Exceeds 72 hrs salt spray test
- Dirt excluding check ball
- Threads provide strong seal
- Dyed yellow for identification
- 0.373 to 0.38 in hole
-
UNSPSC40141736
-
Package Description1/PK
-
Standards/ApprovalsRoHS Compliant
-
