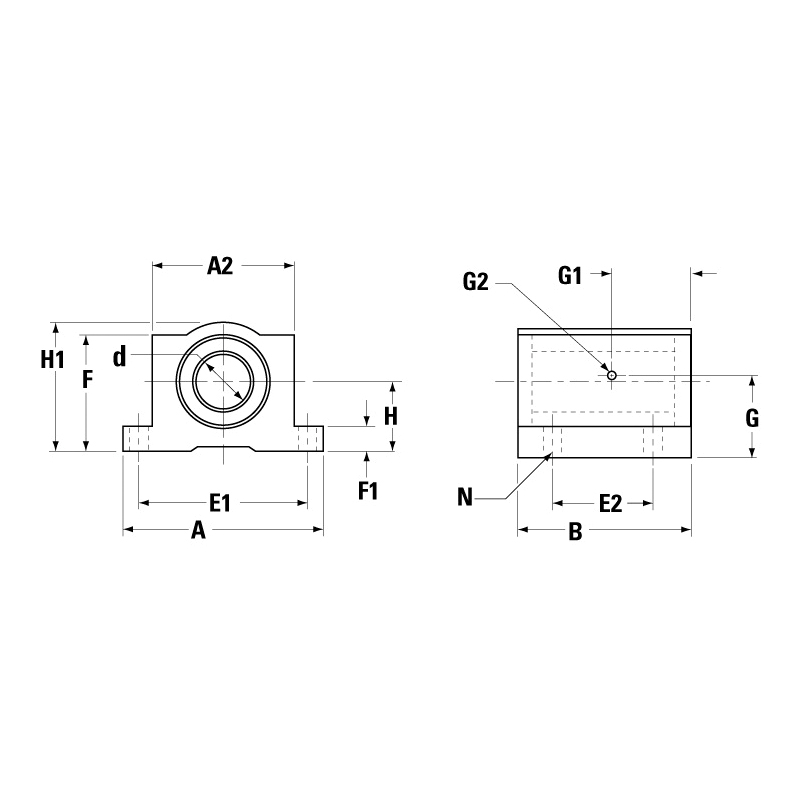

Thomson® Super Smart Ball Bushing® SSUPB16 Non-Adjustable Closed Linear Bearing Pillow Block, 1 in Dia Shaft, 3-1/4 in OD, 1.187 in Center Line to Base, 3-1/4 in L x 2.81 in W x 2.19 in H
The Super Smart Ball Bushing® bearing family represents a major advancement in linear bearing technology worldwide. These patented and universally self-aligning bearings offer twice the load capacity or eight times the travel life of our industry standard Super Ball Bushing® bearing. To minimize installation time and cost, the Super Smart Ball Bushing® bearing can be ordered factory-installed in an industry standard single or twin pillow block.
-
BrandThomson®
-
UPC662486109990
-
Manufacturer Part NumberSSUPB16
-
CountryUSA
-
Load Capacity1900 lb Dynamic
-
Temperature Rating185 deg F
-
TypeNon-Adjustable Closed
-
Height2.19 in
-
Width2.81 in
-
SeriesSSUPB
-
Shaft Diameter1 in
-
Bearing MaterialSteel
-
Outside Diameter3-1/4 in
-
Length3-1/4 in
- A precision, super finished, dual track bearing plate for optimum system smoothness and performance
- Longer travel life and minimal machine downtime when replacing conventional linear bearings or the industry standard Super Ball Bushing® bearing
- RoundRail™ advantage combined with universal self-alignment, eliminating the need for derating factors commonly required when using linear guides
- A coefficient of friction as low as 0.001 and allows the use of smaller, less expensive motors, belts, gears and ball screws when replacing high-friction, plain bearings
- Double-lip integral wipers that keep out dirt while retaining lubrication and travel life is maximized
- Steady state travel speeds up to 10 ft/s and accelerations to 450 ft/s without the use of derating factors
- Universal self-alignment
- The bearing plate is designed to rock 0.5 deg about the hardened precision ground outer ring
- The second key design feature of the Super Smart Ball Bushing® bearing plate is its ability to roll
- The shape formed by the rock and roll features allows the Super Smart Ball Bushing® bearing plate to rotate about its center
- The Super Smart Ball Bushing® bearing provides twice the load capacity of the industry standard Thomson® Super Ball Bushing® bearing and six times the load capacity of conventional linear bearings
- The Super Smart Ball Bushing® bearing provides eight times the travel life of the industry standard Thomson® Super Ball Bushing® bearing and 216 times the travel life of conventional linear bearings
- Closed pillow blocks are for end supported shafting
- For class L shafting
-
UNSPSC31171504
-
Package Description1/PK
-
