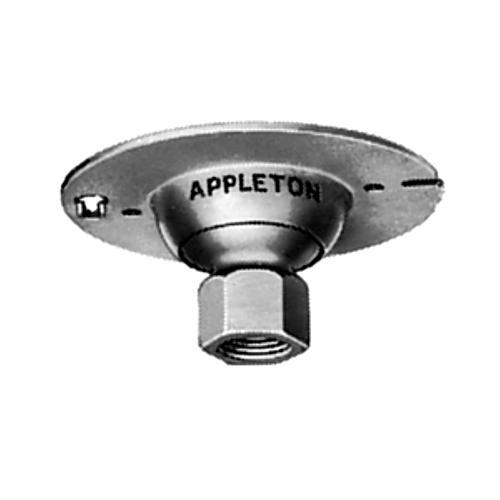

Appleton® UNILETS™ 8438R Ball Swivel Hanger Cover, 1/2 in, For Use With SHC Flexible Fixture Hanger, Malleable Iron/Steel
Appleton® UNILETS™ 8438R Ball Swivel Hanger Cover, 1/2 in, For Use With SHC Flexible Fixture Hanger, Malleable Iron/Steel
-
BrandAppleton®
-
UPC781381337021
-
Manufacturer Part Number8438R
-
CountryUSA|Canada
-
FinishClear Chromate/Zinc Electroplate
-
MaterialMalleable Iron/Steel
-
TypeBall
-
Size1/2 in
-
Suitable For Use WithSHC Flexible Fixture Hanger
- Protect fixture against wind and vibration damage
- Cushion type for added protection where lighting fixtures are subjected to vibration
- Ball type swivel joint permits 20 deg swing from vertical
- Support fixtures with a maximum weight of 50 lb
- For use with threaded rigid metal conduit and IMC
-
Alternative Part Number8335445
-
UNSPSC39111817
-
IDEA Index ID8335445
-
Package DescriptionEACH
-
Standards/ApprovalsARRA Compliant|Buy American Act Compliant|UL 514A File No. E2527|CSA 065180
-
Warranty5 Years
-
Warranty Information
