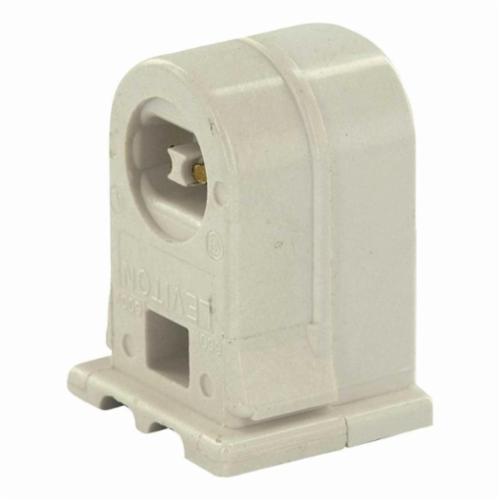

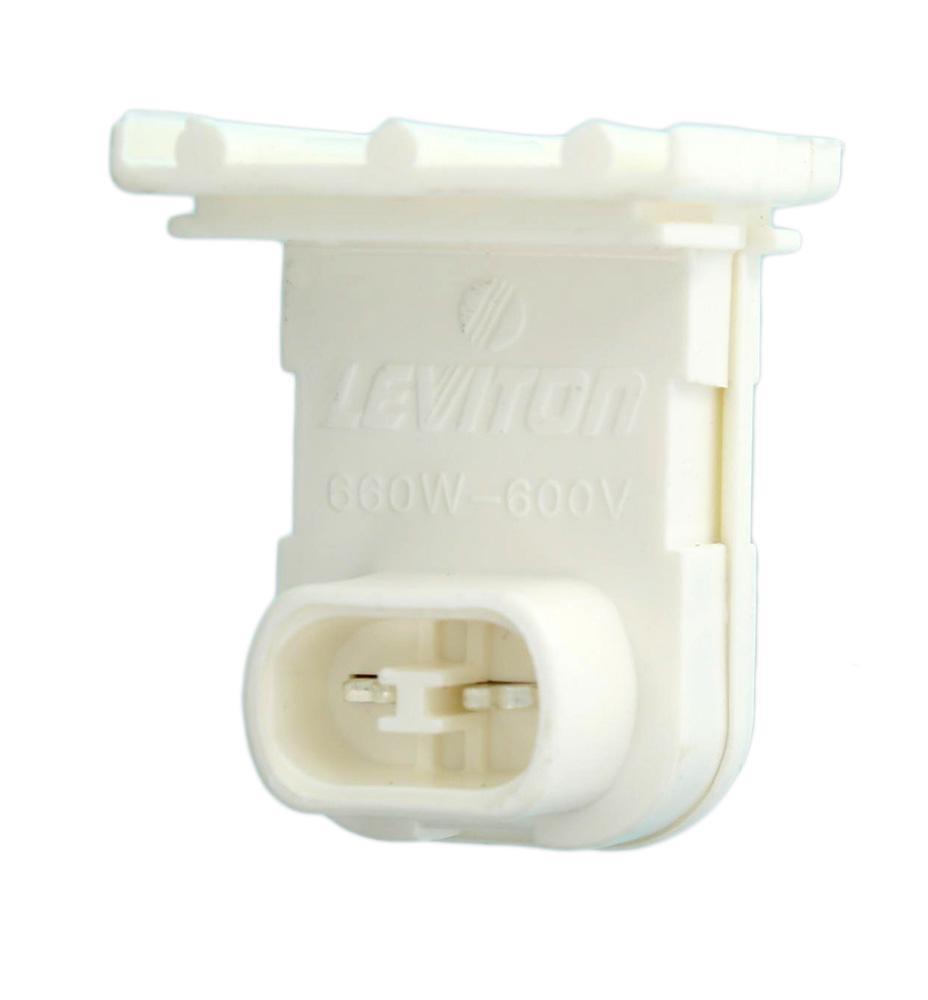

LEVITON FLUORESCENT BULB LAMPHOLDERS LEV 13551-W
Leviton® newly re-designed pedestal type fluorescent lamp holders simplify fixture design and increase options for OEMs. The medium bi-pin and high output 800 mA and 1500 mA recessed double contact lamp holders are molded out of high temperature, arc resistant thermoplastic with a 94-V-0 flammability rating. Adding a new dimension, the previously round plunger area has been reshaped into a rectangle, resulting in smoother travel during lamp insertion. Now available shunted for use with instant start ballasts, the lamp holders fit the same 20 ga. Panel openings as previous Leviton® models.
-
BrandLeviton®
-
UPC078477344439
-
Manufacturer Part Number13551-NW
-
CountryUSA
-
Terminal TypeQuick Wire
-
ColorWhite
-
TypeNon-Shunted
-
Connection TypePush-In
-
Mounting TypeSlide-On
-
Dimensions1.44 in W x 1.28 in D
-
MaterialThermoplastic
-
Frequency Rating60 Hz
-
Voltage Rating600 V AC
-
Lamp Base TypeE26
-
Lamp TypeT8/T12 Fluorescent
-
Lamp Wattage600 W
- High temperature, arc-resistant thermoplastic with a 94V-0 flammability rating
- Rectangular plunger area provides smoother travel during lamp insertion
- Quickwire terminals accept 18/16 AWG solid wire, stripped 3/8 to 1/2 in
- Silver plated contacts
- Pedestal style
- Quickwire 18 AWG solid/stranded tinned termina
-
UNSPSC39111501
-
Standards/ApprovalsUL File No. E5833NOM 057|CSA File No. LR1863
-
Alternative Part Number10001843
-
IDEA Index ID10001843
-
Package DescriptionEACH
-
Specification Sheet
-
Instruction/Installation Manual
