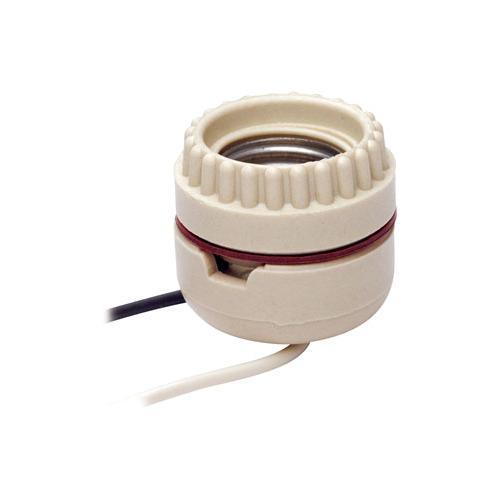

Leviton® 8101 1-Circuit 2-Piece Keyless Lampholder, 660 W Lamp, 250 V AC, E26 Lamp
Leviton® 8101 1-Circuit 2-Piece Keyless Lampholder, 660 W Lamp, 250 VAC, Medium Incandescent Lamp
-
BrandLeviton®
-
UPC078477394670
-
Manufacturer Part Number8101
-
CountryUSA
-
FinishUnglazed
-
MaterialPorcelain
-
ColorWhite
-
Type1-Circuit 2-Piece Keyless
-
Connection TypeBack Wired/Wire Lead
-
Mounting TypeRing
-
Voltage Rating250 V AC
-
Dimensions1-3/4 in Dia x 1-3/8 in H
-
Lamp Base TypeE26
-
Lamp TypeIncandescent
-
Lamp Wattage660 W
- Single circuit lampholder
- 1-piece construction
- Slot lock prevents rotation
- Aluminum screw shell
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 5CGZ8 |
-
Alternative Part Number10001804
-
UNSPSC39111803
-
IDEA Index ID10001804
-
Package DescriptionEACH
-
Standards/ApprovalsUL File No. E3810|CSA File No. LR1863|NOM 057
-
Specification Sheet
