Advance RLQ120TPI Electromagnetic Fluorescent Ballast, T12 Lamp, 20 W Lamp, 120 VAC, Pre-Heat, 0.83 Ballast Factor
Advance RLQ120TPI Electromagnetic Fluorescent Ballast, T12 Lamp, 20 W Lamp, 120 VAC, Pre-Heat, 0.83 Ballast Factor
-
BrandAdvance
-
UPC781087101728
-
Manufacturer Part NumberRLQ120TPI
-
CountryUSA
-
Thermal ProtectionClass P
-
MaterialMetal
-
Power Factor0.83
-
Total Harmonic Distortion10 %
-
Frequency Rating60 Hz
-
Minimum Starting Temperature20 deg F
-
Voltage Rating120 V AC
-
Amperage Rating0.54 A
-
SeriesStandard
-
Ballast Factor0.83
-
Ballast GradeANSI C82.1
-
Number of Lamps1
-

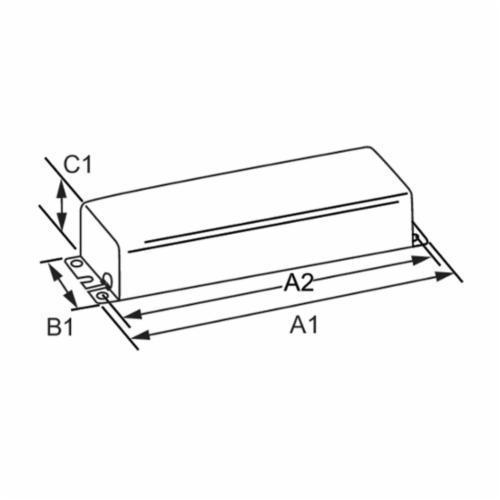

Dimensions6.5 in L x 1.94 in W x 1.38 in H
-
Start TypePre-Heat
-
Lamp TypeT12
-
Lamp Wattage20 W
- Series lamp connection
- 112 to 127 VAC applied voltage limits
- Yellow color label identification
- 20 to 24 dB average ambient noise level
- Normal power factor
- Available for many fluorescent lamp types sold today, including preheat, rapid start, 2-pin CFL, slimline, high output, very high output and circline
- Only choice for many low volume lamp types on the market
- 60 Hz lamp operation eliminates possible EMI/RFI interference
-
Alternative Part Number7583011
-
UNSPSC39101901
-
IDEA Index ID7583011
-
Package DescriptionEACH
-
Standards/ApprovalsRoHS Compliant|UL File No. E14927|CSA File No. 007310|ANSI C82.1
-
Specification Sheet
