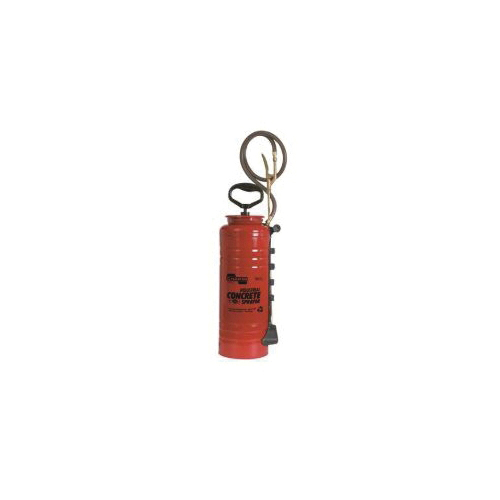

Chapin® 1949 Concrete Open Head Sprayer, 3.5 gal, 0.5 to 1 gpm, 40 to 60 psi, 48 in Hose Length, Tri-poxy® Steel Tank
The Chapin® industrial FKM concrete sprayer has a 3.5 gal Tri-Poxy® lined steel tank that provides triple protection against rust, corrosion and damage from denting. Featuring a large 4 in mouth opening for easy filling and cleaning, brass wand, brass shut-off, brass fan tip nozzle for even coverage, a 48 in reinforced hose with threaded fittings and FKM seals for most concrete sealer applications (check chemical manufacturers instructions before use). Our open head tanks have a unique tri-lock seal that insures the pump cap locks tightly into place.
-
BrandChapin®
-
UPC023883019495
-
Manufacturer Part Number1949
-
CountryUSA
-
Pressure Rating40 to 60 psi
-
Flow Rate0.5 to 1 gpm
-
Pump TypePiston
-
TypeConcrete
-
Hose Length48 in
-
Opening Size4 in
-
Overall Dimensions8-3/4 in L x 8-3/4 in W x 27 in H
-
Tank Capacity3.5 gal
- 3.5 gal Tri-Poxy® tank for durability and a 4 in W mouth opening for easy filling and cleaning
- 48 in reinforced hose with threaded fittings
- Brass pump, wand, nozzle and shut-off with lock-on feature
- FKM seals and gaskets designed to handle a variety of chemicals
- Unique tri-lock seal feature that locks the pump cap tight
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 4Z122 |
-
UNSPSC27112903
-
