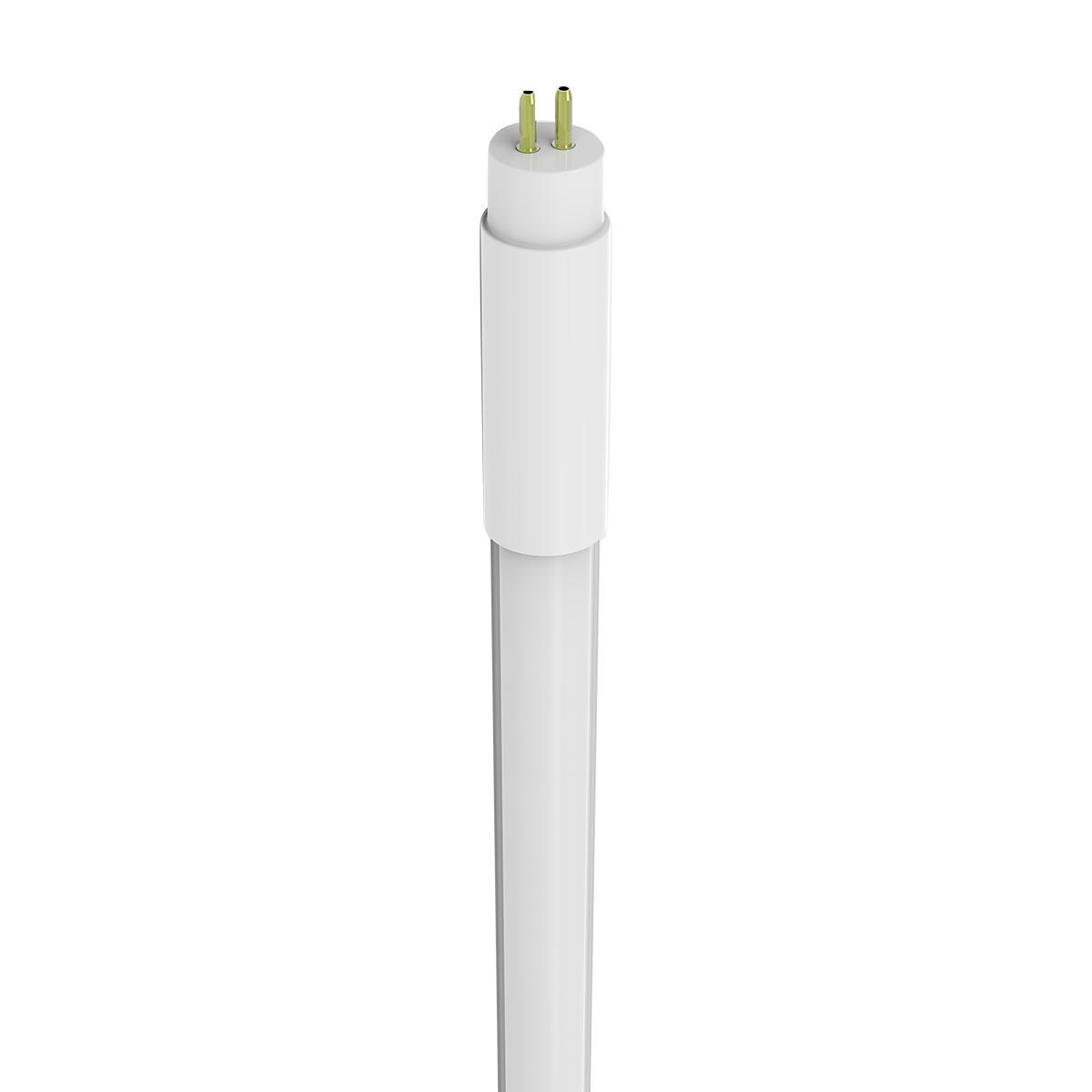

EIKO® LED24WT5HO/46/850-G9D Ballast Bypass Double Ended High Output Line Voltage Non-Dimmable LED Replacement Lamp, 24 W, G5 Lamp, T5 Linear Shape, 3500 Lumens
LED T5HO Ballast Bypass/Line Voltage Replacement Lamps directly replace 4 ft fluorescent T5HO lamps at a fraction of the energy cost. A compact driver design means uniform light output with no dark spots across the entire lamp.
-
BrandEIKO®
-
UPC031293110473
-
Manufacturer Part NumberLED24WT5HO/46/850-G9D
-
CountryUSA
-
Lumens3500 Lumens
-
Fixture TypeTotally Enclosed
-
Color Rendering Index (CRI)80+
-
Color Temperature5000 K
-
TypeBallast Bypass Double Ended High Output Line Voltage Non-Dimmable
-
Voltage Rating120 to 277 V AC
-
Wattage24 W
-
Average Life50000 hr
-
ShapeT5 Linear
-
DesignationLED24WT5HO/46/850-G9D
-
Dimensions0.62 in Dia x 45.8 in L
-
Lamp Base TypeG5
-
Lamp FinishFrosted
-
Lamp TypeLED
- Solid state replacement for 4 ft T5 linear fluorescent
- Unique design features uniform light output with no dark spots
- Double end powered
- Frosted lens for uniform diffuse appearance
- No external ballast or driver required
- Ultra high performance LEDs deliver 137+ Lumens/W
- Up to 50% instant energy savings
- Integral 120 to 277 V drivers provide easy installation
- Use with T5 lamp holders
-
Alternative Part Number11047|15904844
-
UNSPSC39101628
-
IDEA Index ID15904844
-
Package DescriptionEACH
-
Standards/ApprovalscULus Listed|DLC QPL Listed|FCC Certified|NSF Certified|UL Recognized
-
Warranty5 years Limited
-
Specification Sheet
-
Warranty Information
-
Instruction/Installation Manual
-
Catalog
