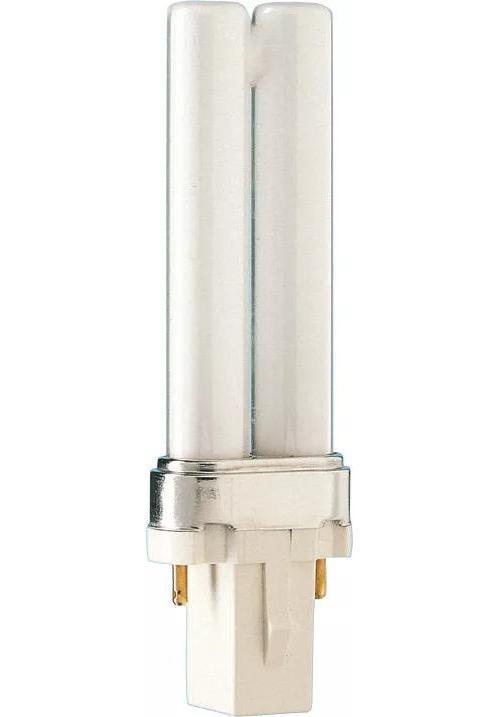

Philips 146712 Compact Linear, 5 W, G23, PL-S Shape, 250 Lumens
Philips linear compact fluorescent lamps offer designers, specifiers and end users new levels of efficiencies and versatility in sizes, configurations and application possibilities. With so many elegant fixtures available to complement their small size, high light output and advanced technology, Philips Energy Advantage lamps are fast becoming the preferred choice when maximum efficiency and sleek design solutions are required.
-
BrandPhilips
-
UPC046677146719
-
Manufacturer Part Number146712
-
CountryUSA
-
Lumens250 Lumens
-
ColorIncandescent White
-
Color Rendering Index (CRI)82
-
Color Temperature2700 K
-
TypeCompact
-
Voltage Rating35 V AC
-
Wattage5 W
-
Amperage Rating0.18 A
-
Average Life10000 hr
-
ShapePL-S
-
DesignationPL-S 5W/827/2P/ALTO
-
Dimensions28.2 mm Dia x 105 mm L
-
Lamp Base TypeG23
-
Lamp TypeCFL-NI
-
Ballast TypeNon-Dimmable
- 827 color code
| Competitor Name | Competitor Part Number |
|---|---|
| Fastenal | 0640062 |
-
Alternative Part Number9262415
-
UNSPSC39101619
-
IDEA Index ID9262415
-
Specification Sheet
