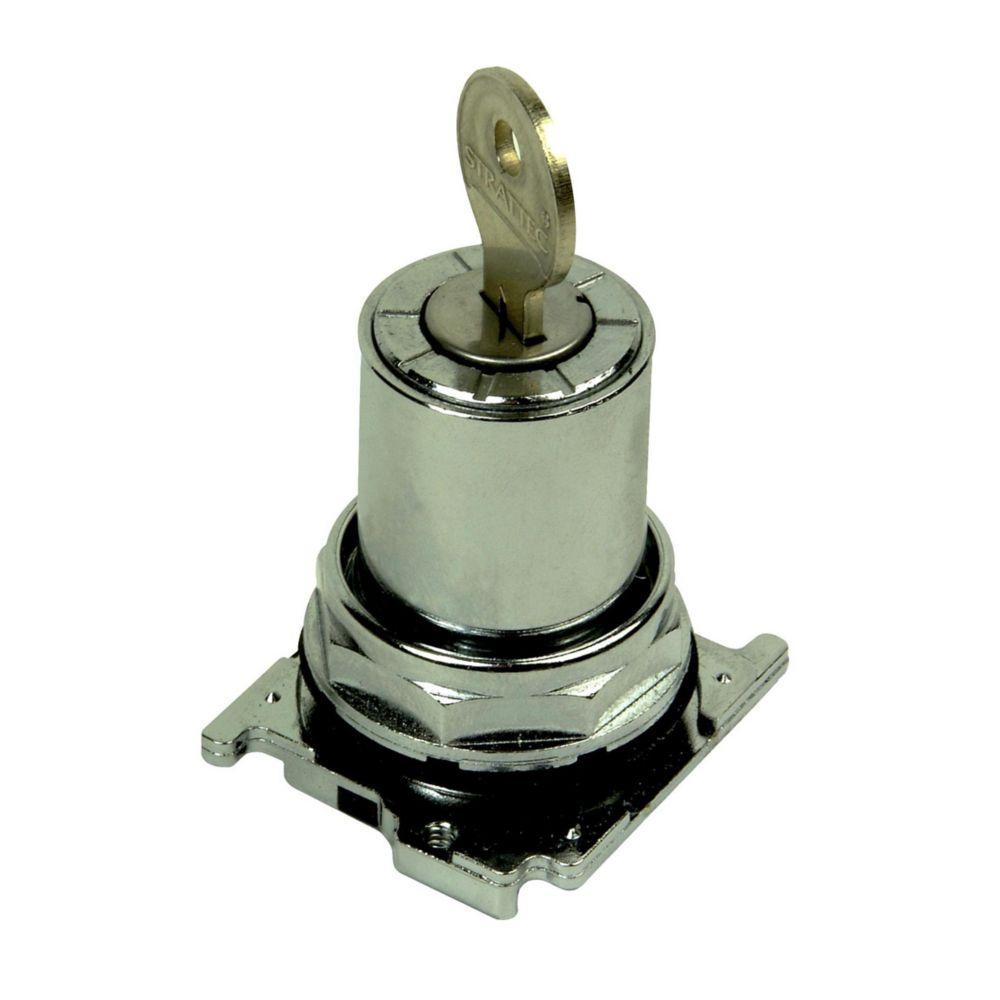

EATON 10250T16777 Heavy Duty Non-Illuminated Oiltight/Watertight Selector Switch Operator With Cam Code 7, 30.5 mm, 4 Positions
Eaton's 10250T line of 30.5 mm pushbuttons features a heavy-duty zinc die cast construction. Reliability nibs improve contact reliability even under dry circuit and fine dust conditions. In addition, drainage holes prevent the buildup of liquid inside the operator, which can prevent operation in freezing environments.
-
BrandEATON
-
UPC782113227863
-
Manufacturer Part Number10250T16777
-
CountryUSA
-
MaterialDie Cast Zinc
-
TypeHeavy Duty Non-Illuminated Oiltight/Watertight
-
Mounting TypeSurface
-
Series10250T
-
Number of Positions4
-
Size30.5 mm
-
Enclosure TypeNEMA 3/3R/4/4X/12/13
- EATON contact blocks feature enclosed silver contacts with pointed reliability nibs
- To ensure reliable switching, these nibs bite through oxide, which can form on silver contacts, eliminating the need for expensive logic level blocks for most applications
- Drainage holes prevent buildup of liquid inside the operator which can prevent operation in freezing environments
- Grounding nibs bit through paint and other coatings to provide secure ground
- Earth terminal provides additional grounding point and allows for daisy chain grounding
- Reliability nibs improve contact reliability even under dry circuit and fine dust conditions
- 40 deg throw
-
Alternative Part Number7352607
-
UNSPSC39122217
-
IDEA Index ID7352607
-
Package DescriptionEACH
-
Standards/ApprovalsCSA Certified,UL Listed,CE Marked
-
Specification Sheet
-
Technical Bulletin
