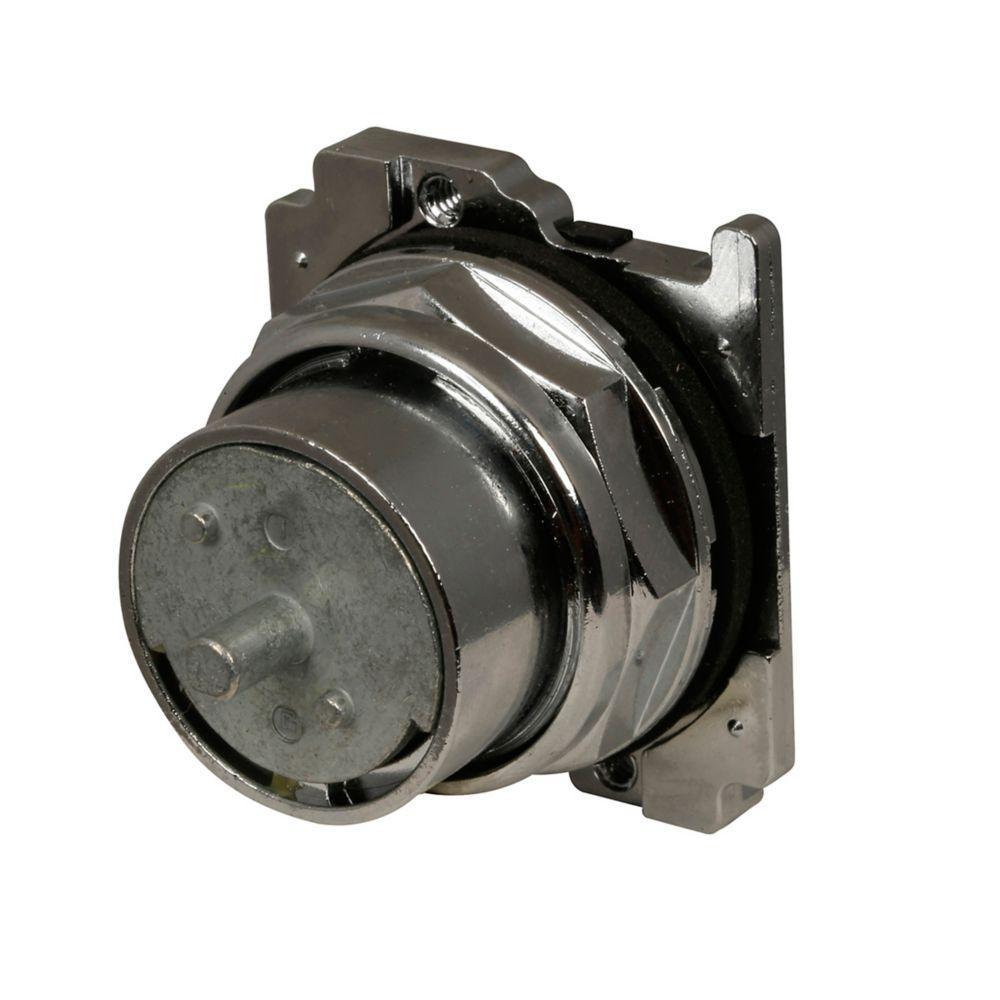

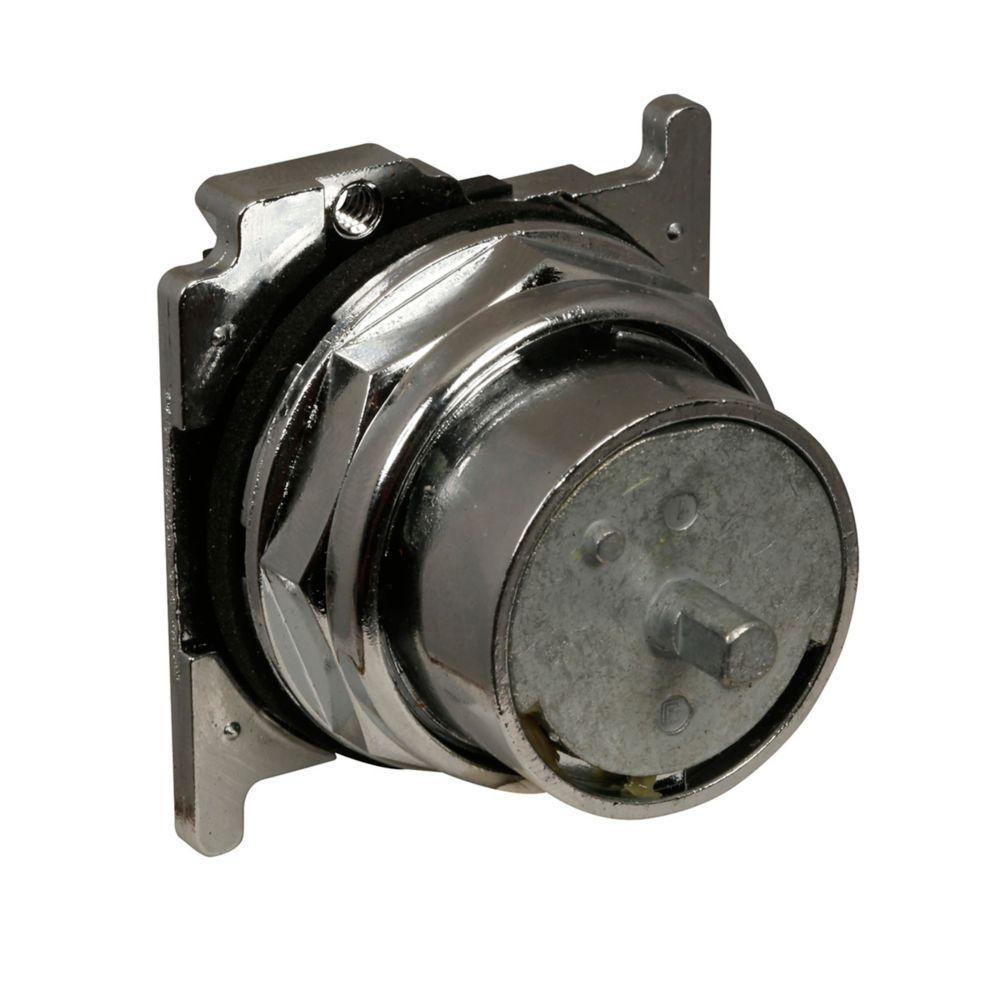

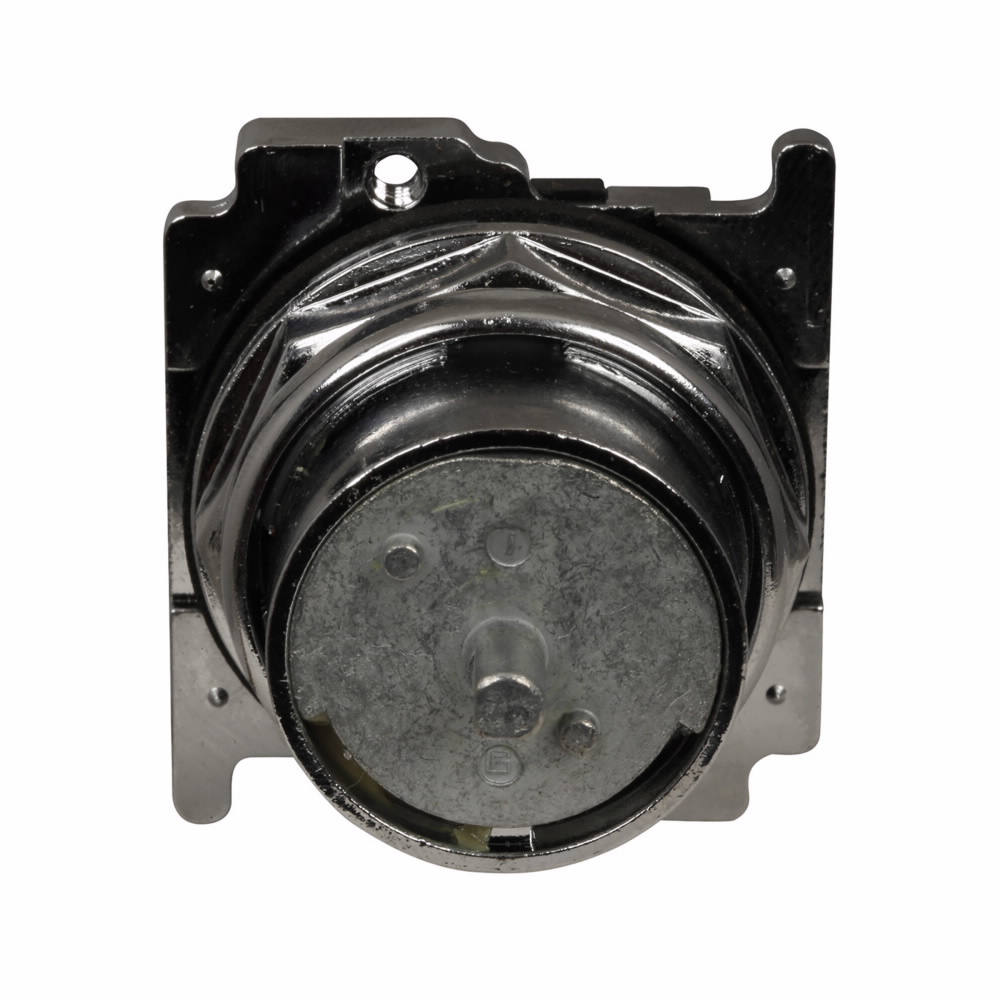

EATON 10250T4023 Heavy Duty Oiltight/Watertight Non-Illuminated Selector Switch Operator With Ground Fault Sensing, Knob Operator, 3 Positions
Eaton's 10250T line of 30.5 mm pushbuttons features a heavy-duty zinc die cast construction. Reliability nibs improve contact reliability even under dry circuit and fine dust conditions. In addition, drainage holes prevent the buildup of liquid inside the operator, which can prevent operation in freezing environments.
-
BrandEATON
-
UPC782113227313
-
Manufacturer Part Number10250T4023
-
CountryUSA
-
FinishPolished Chrome
-
TypeHeavy Duty Oiltight/Watertight Non-Illuminated
-
Mounting TypeSurface
-
Voltage Rating600 V AC
-
Series10250T
-
Number of Positions3
-
Enclosure TypeNEMA 3/4/12/13/3R/4X/IP65
- Enclosed silver contacts with reliability nibs
- Reliability nibs improve contact reliability even under dry circuit and fine dust conditions
- Diaphragm seals with drainage holes
- Drainage holes prevent buildup of liquid inside the operator which can prevent operation in freezing environments
- Grounding nibs on the operator casing
- Grounding nibs bit through paint and other coatings to provide secure ground
- Slow make and break contact operation
- All normally closed contacts have positive opening operation, i.e, normally closed contacts are forced open in the event of contact weld or spring breakage
- Without cap
-
Alternative Part Number7352337
-
UNSPSC39122217
-
IDEA Index ID7352337
-
Package DescriptionEACH
-
Standards/ApprovalsUL Listed,CSA Certified,CE Marked
-
Warranty1 year
