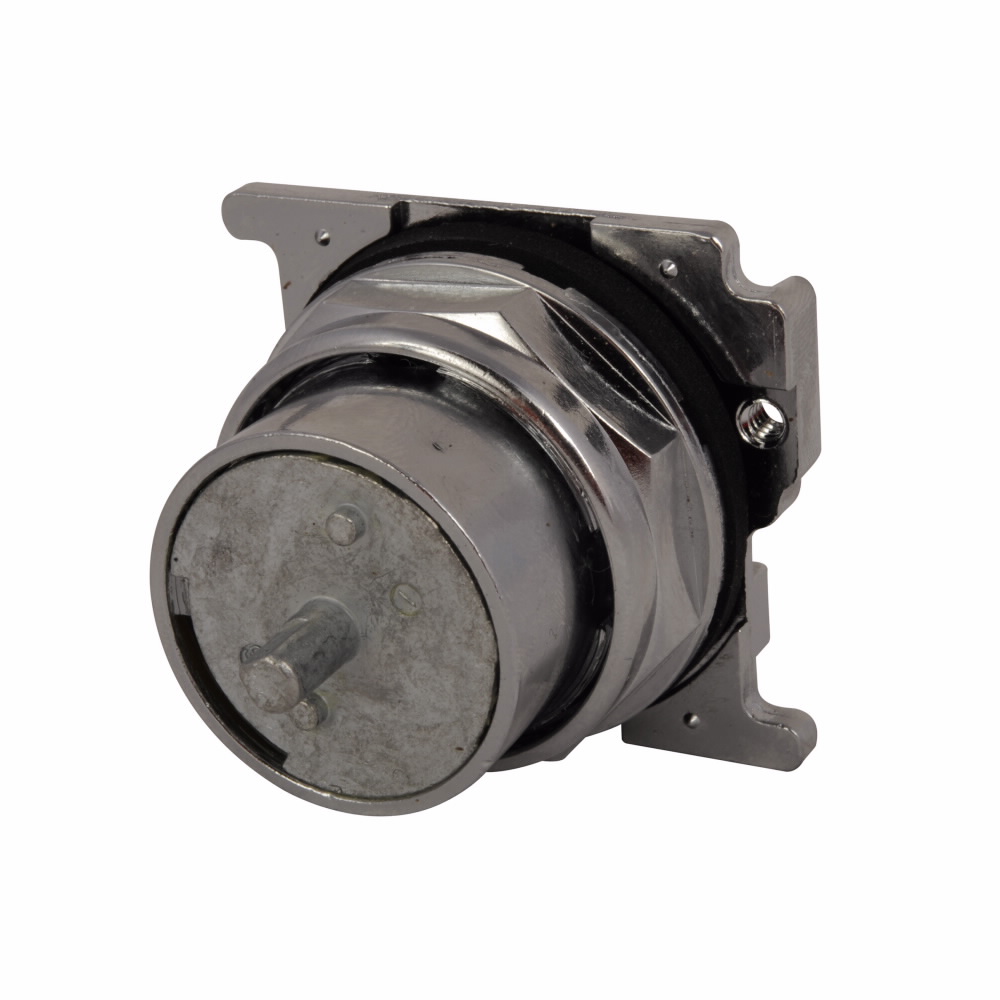

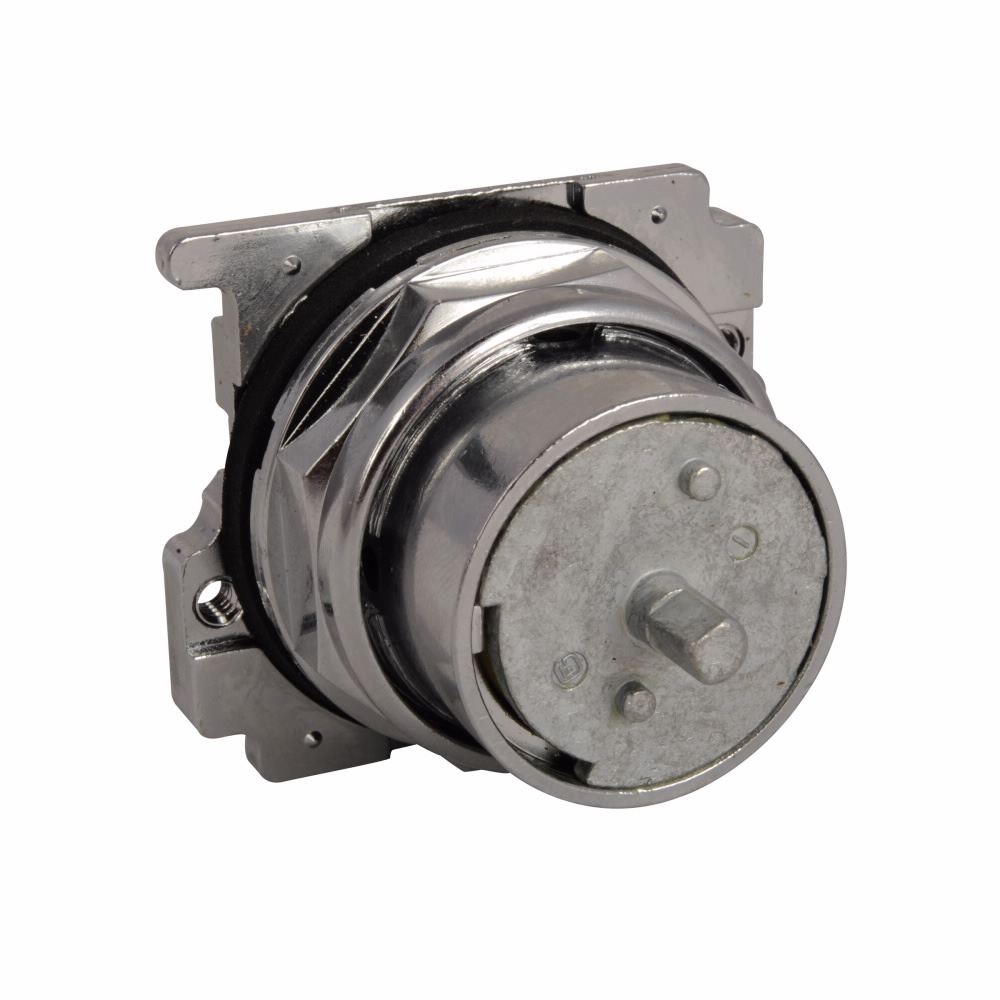

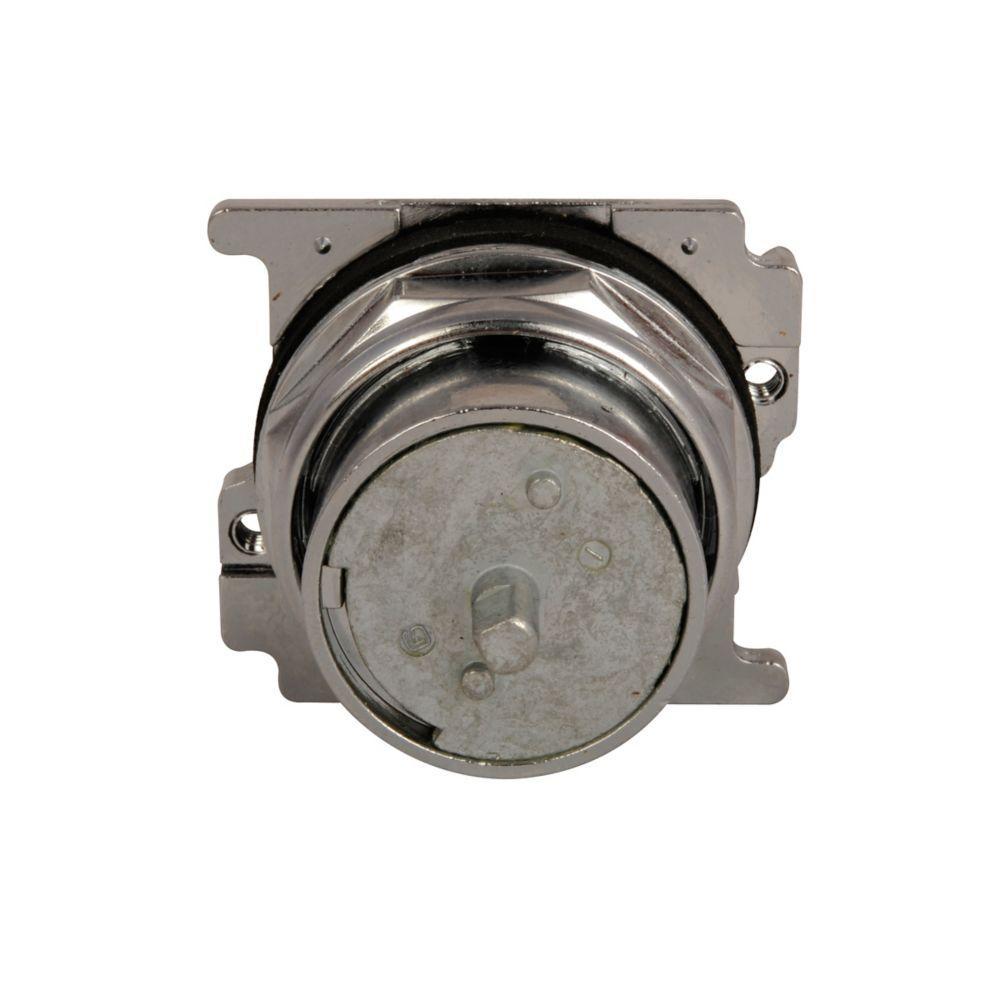

EATON 10250T4011 Heavy Duty Oiltight/Watertight Pushbutton Non-Illuminated Selector Switch Operator, 30.5 mm, 2 Positions
Eaton's 10250T line of 30.5 mm pushbuttons features a heavy-duty zinc die cast construction. Reliability nibs improve contact reliability even under dry circuit and fine dust conditions. In addition, drainage holes prevent the buildup of liquid inside the operator, which can prevent operation in freezing environments.
-
BrandEATON
-
UPC782113227290
-
Manufacturer Part Number10250T4011
-
CountryUSA
-
FinishPolished Chrome
-
TypeHeavy Duty Oiltight/Watertight Pushbutton Non-Illuminated
-
Mounting TypeSurface
-
Voltage Rating600 V AC
-
Series10250T
-
Number of Positions2
-
Size30.5 mm
-
Enclosure TypeNEMA 3/3R/4/4X/12/13/IP65
- Enclosed silver contacts with reliability nibs
- Reliability nibs improve contact reliability even under dry circuit and fine dust conditions
- Diaphragm seals with drainage holes
- Drainage holes prevent buildup of liquid inside the operator which can prevent operation in freezing environments
- Grounding nibs on the operator casing
- Grounding nibs bit through paint and other coatings to provide secure ground
- Slow make and break contact operation
- All normally closed contacts have positive opening operation, i.e, normally closed contacts are forced open in the event of contact weld or spring breakage
- Without cap
-
Alternative Part Number7352321
-
UNSPSC39122217
-
IDEA Index ID7352321
-
Package DescriptionEACH
-
Standards/ApprovalsCSA Certified,UL Listed,CE Marked
-
Warranty1 year
-
Specification Sheet
