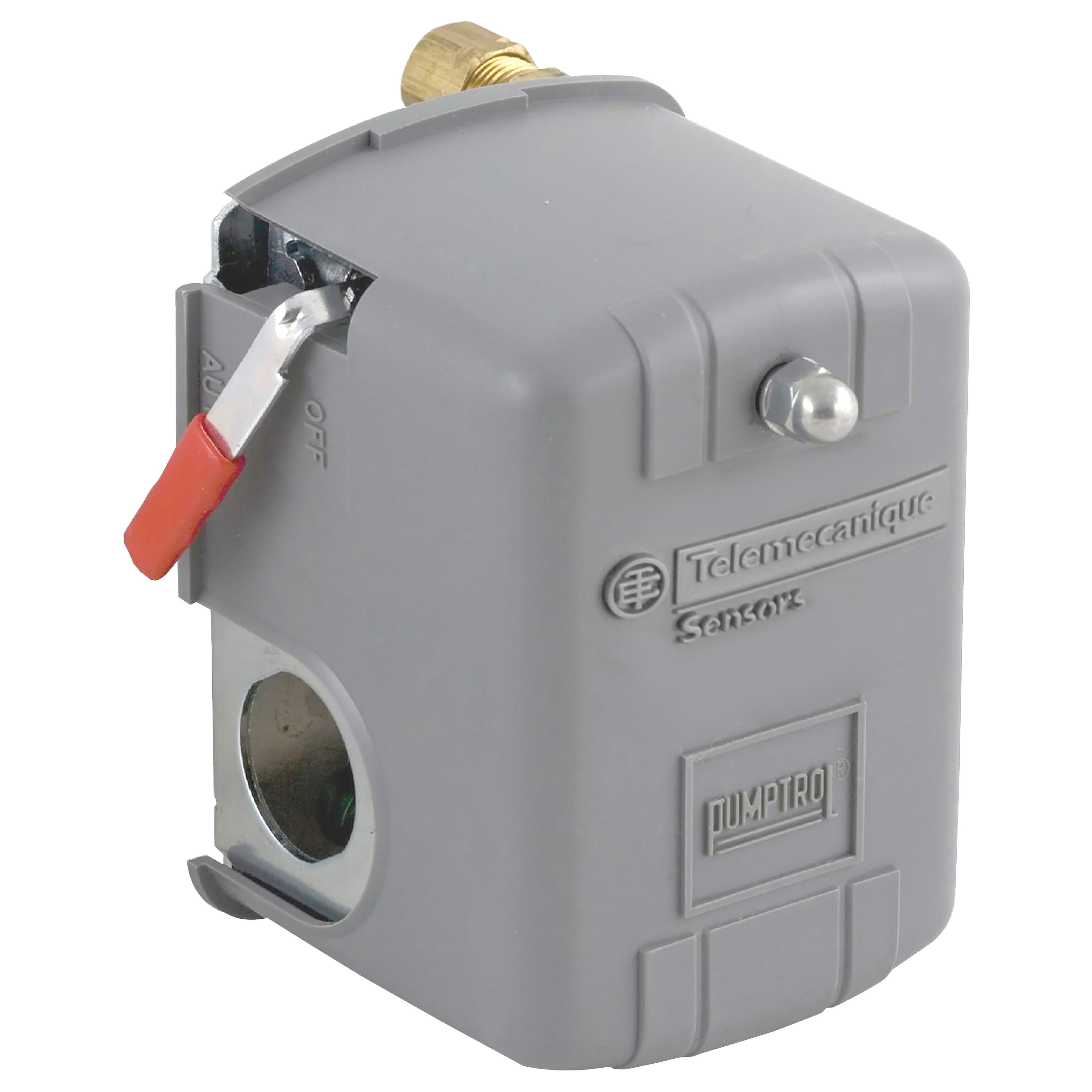

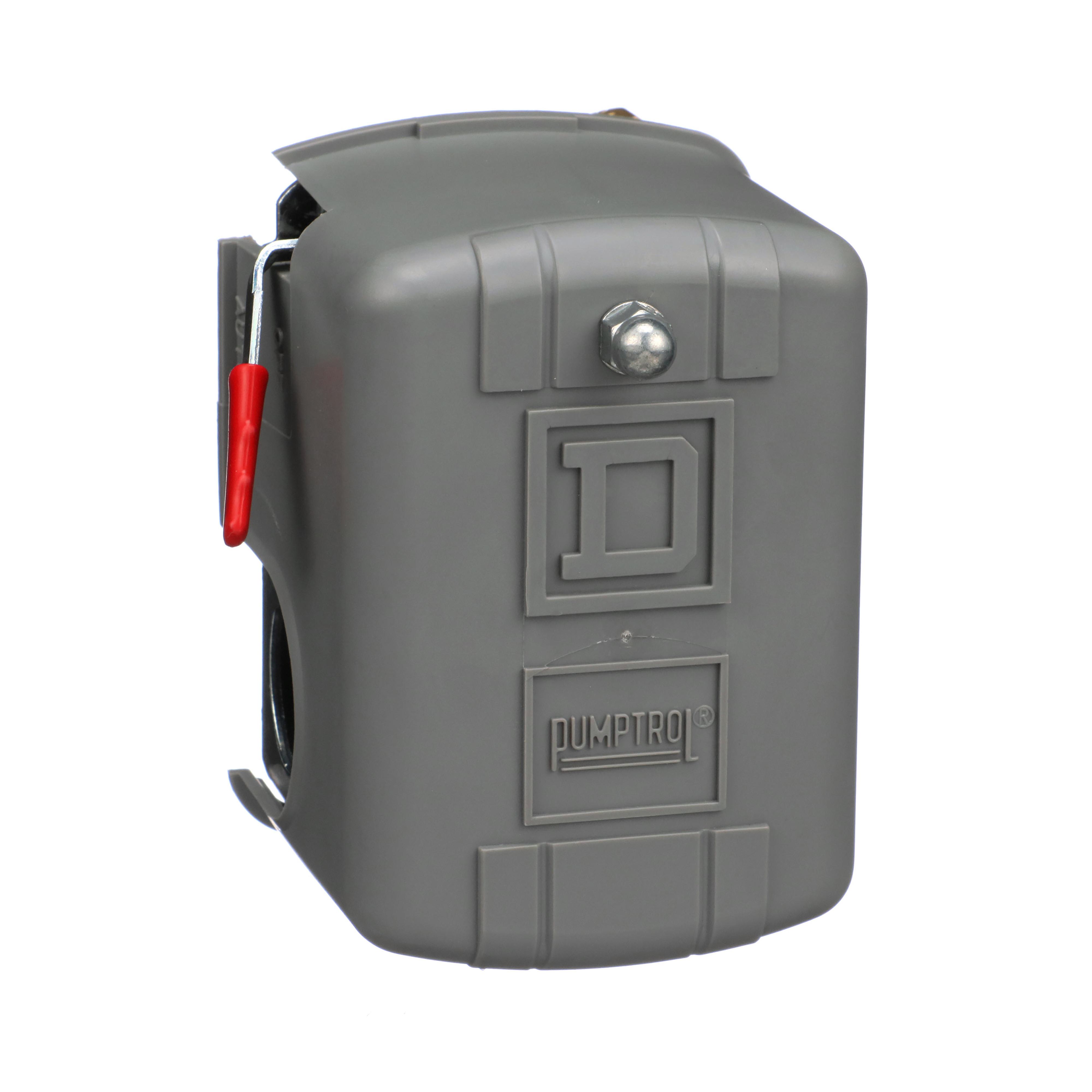

95-PSI TO 125-PSI PRESSURE SWITCH FOR 75570
Pressure switches, float switches, vacuum switches and power pressure switches for control or monitoring of water pumps, compressors, agricultural/irrigation water systems, moulding presses, injection moulders, grinding machines, machining centers, complex and special machines, HVAC, automotive, food and beverage, healthcare facilities, pharmaceutical and more. Classes 9013.
-
BrandSquare D™
-
UPC785901049517
-
Manufacturer Part Number9013FHG12J52M1
-
CountryUSA
-
Temperature Rating-33 to 257 deg F
-
Pressure Rating70 to 150 psi
-
Maximum Pressure220 psi
-
TypeType F
-
Connection TypeScrew Clamp
-
Contact Configuration2NC DPST-DB
-
Contact Rating1 hp at 575 VAC
-
Series9013
-
Housing MaterialPolypropylene
-
Diaphragm MaterialNitrile
-
Differential30 psi
-
Dimensions3.1 in W x 3.76 in D x 3.71 in H
-
Operating Cycles10 cpm
-
Enclosure TypeIP20/NEMA 1
-
Connection MaterialZinc Plated Steel
- 9013F power pressure switches rated for the direct control of motors in pump and compressor applications
- Rugged, robust construction provides a long life and provides years of uninterrupted, worry-free service
- Drift proof cut-in and cut-out settings
- Has visible vertical contacts, easy to inspect without removal
- An extra strong frame that resists distortion when mounting the switch to a compressor
- Designed for the direct control of motors in pump and compressor applications
- 1/4 in NPSF Internal pressure
- Off at 125 psi pressure
- Maintained manual cut-out lever (auto-off)
- Nitrile (Buna-N) diaphragm
- 300000 cycles mechanical durability, 100000 cycles at 10 cycles/min electrical durability
- Zinc plated steel or equivalent flange
- 0.75 kW at 460 VAC 3-ph, 0.75 kW at 575 VAC 3-ph, 1.5 kW at 230 VAC 1-ph, 2.2 kW at 230 VAC 3-ph, 1.1 kW at 115 VAC 1-ph, 1.5 kW at 115 VAC 3-ph power rating
- General purpose (indoor) environmental conditions
- Bracket mounting
- (2) 0.88 in cable entries with 0.84 in across flats
- A600 NEMA contact rating designation
- Noryl thermoplastic resin
- 2-way pressure release value
- Maintained manual cut-out lever (auto-off)
-
Alternative Part Number7992960
-
UNSPSC39122210
-
IDEA Index ID7992960
-
Standards/ApprovalsECCN EAR99|CE Certified|CSA LR25490|IEC 60529|REACH Compliant|UL 50/508/E12158|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP) which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP) which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
-
Warranty18 Months
-
