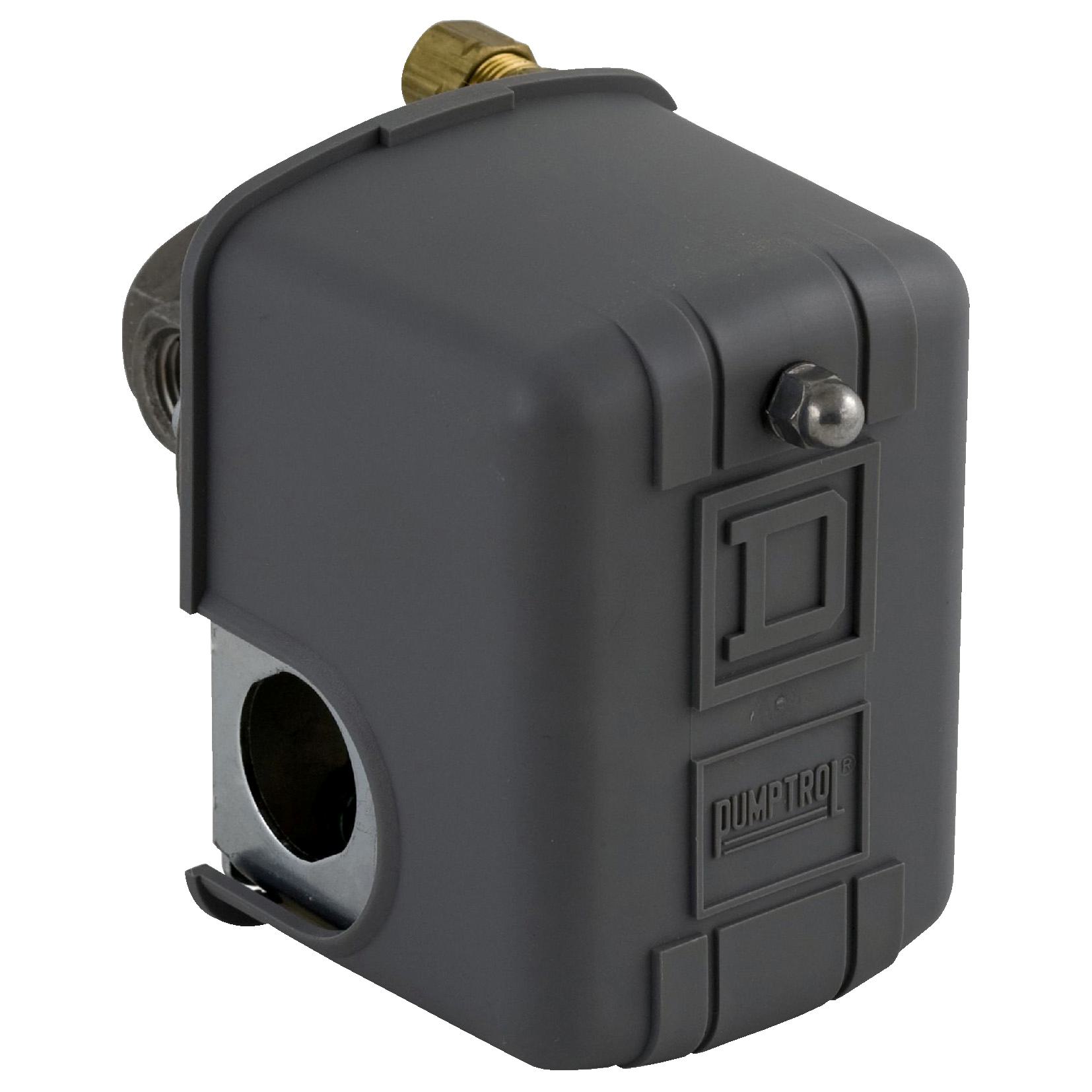

80-PSI TO 100-PSI PRESSURE SWITCH FOR 75555
Pressure switches, float switches, vacuum switches and power pressure switches for control or monitoring of water pumps, compressors, agricultural/irrigation water systems, molding presses, injection molders, grinding machines, machining centers, complex, special machines, HVAC, automotive, food, beverage, healthcare facilities, pharmaceutical and more. Classes 9012, 9013, 9016, 9036, 9037 and 9038.
-
BrandTelemecanique
-
UPC785901522959
-
Manufacturer Part Number9013FHG2J27X
-
CountryUSA
-
Temperature Rating-33 to 257 deg F
-
Maximum Pressure100 psi
-
TypeType F Electromechanical
-
Connection MaterialSteel
-
Connection TypeScrew Clamp
-
Contact Configuration2NC
-
Series9013FH
-
Housing MaterialPolypropylene
-
Diaphragm MaterialNitrile
-
Differential40 to 100 psi
-
Operating Cycles10 cpm
-
Enclosure TypeNEMA 1/IP20
- 9013F power pressure switches rated for the direct control of motors in pump and compressor applications
- Rugged, robust construction provides a long life and provides years of uninterrupted, worry-free service
- Driftproof cut-in and cut-out settings
- Has visible vertical contacts, easy to inspect without removal
- An extra strong frame that resists distortion when mounting the switch to a compressor
- Designed for the direct control of motors in pump and compressor applications
- 1/4 in NPSF internal conforming to UL 508 fluid connection
- Off at 100 psi pressure
- 2-way pressure release value
-
Alternative Part Number8080794
-
UNSPSC39122210
-
IDEA Index ID8080794
-
Standards/ApprovalsECCN: EAR99|CE Marked|CSA File NO LR25490|IEC 60529|REACH Compliant|RoHS Compliant|UL 50/508/File NO E12158|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
-
Warranty18 Months
-
RoHS
-
Specification Sheet
-
Technical Bulletin
